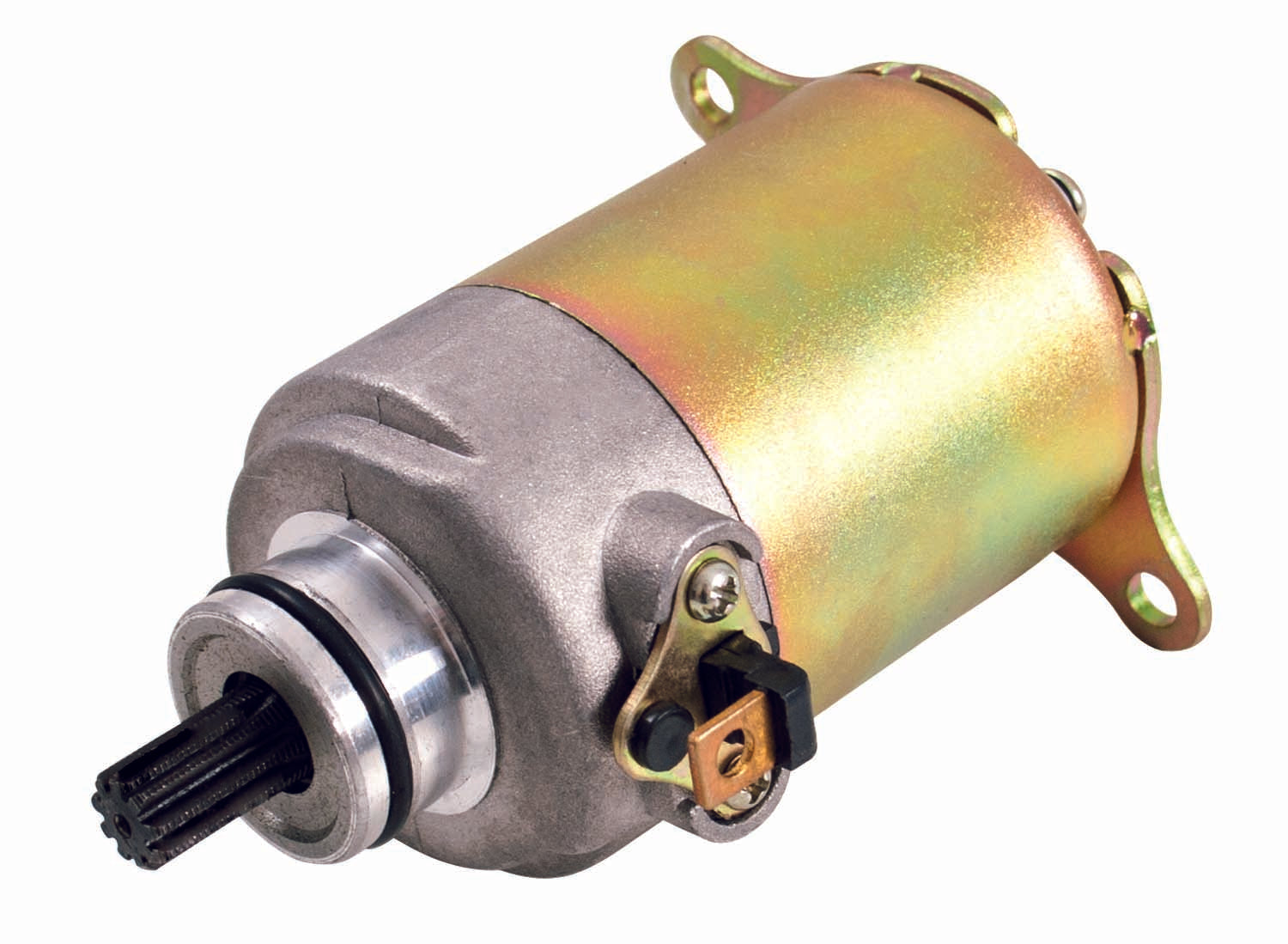

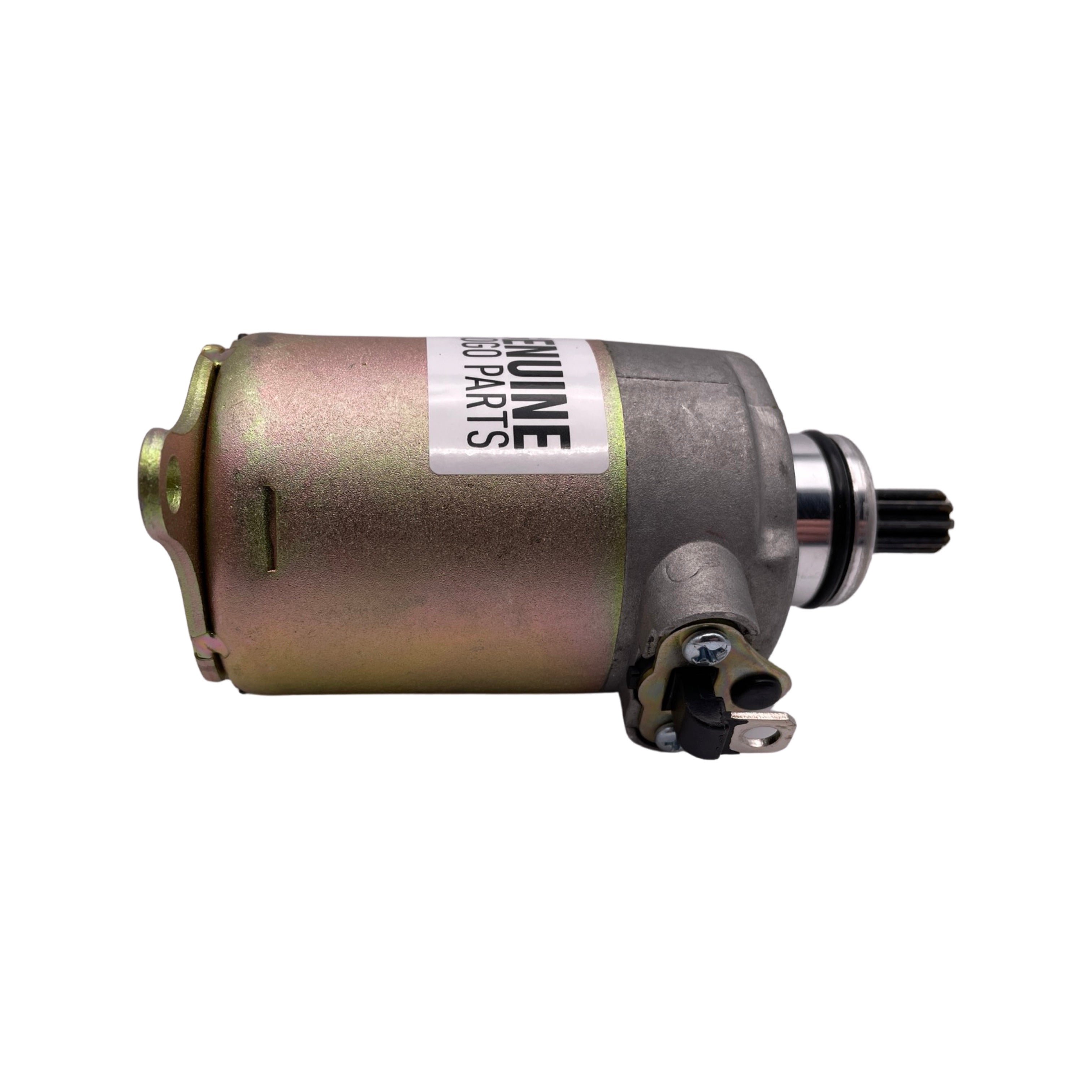

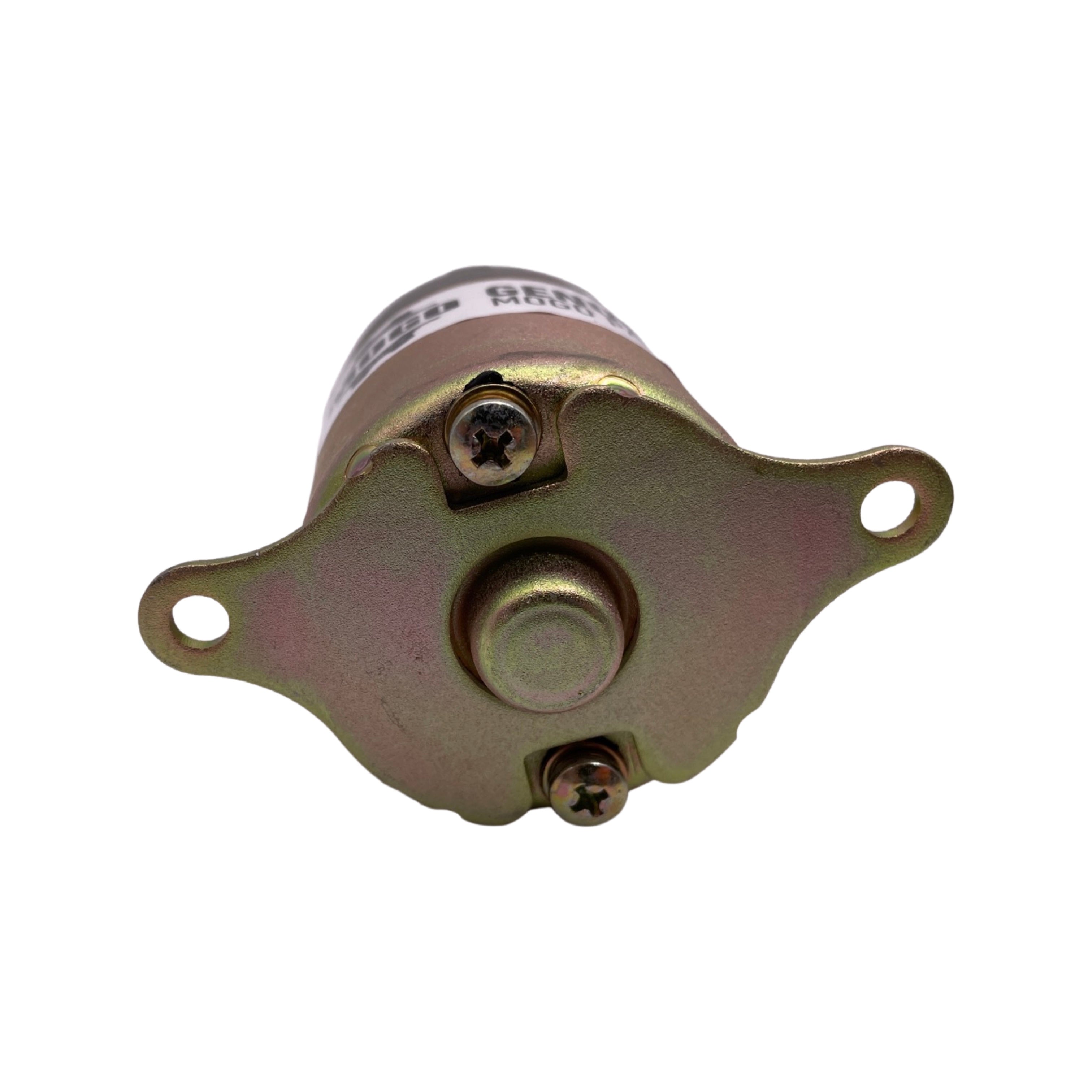

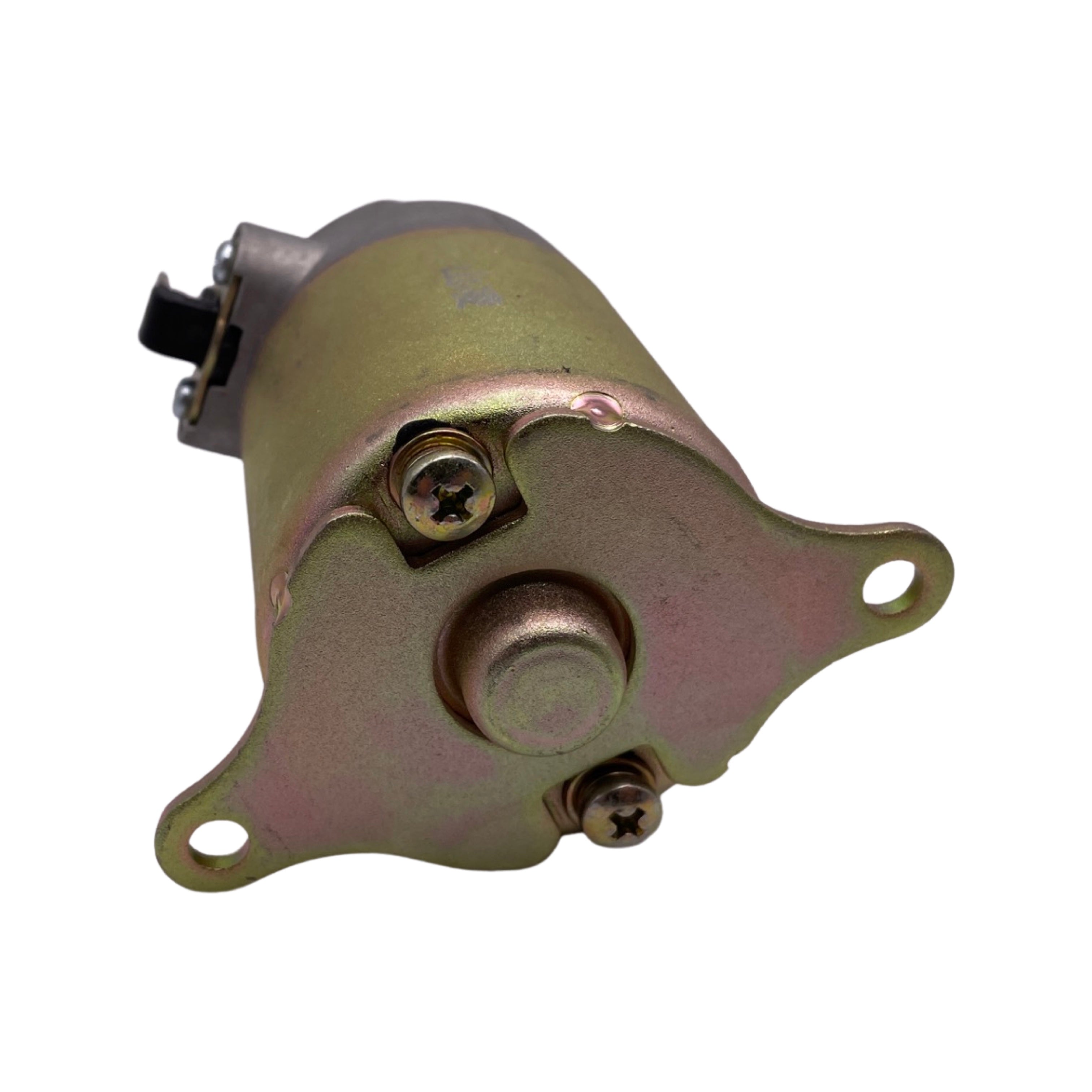

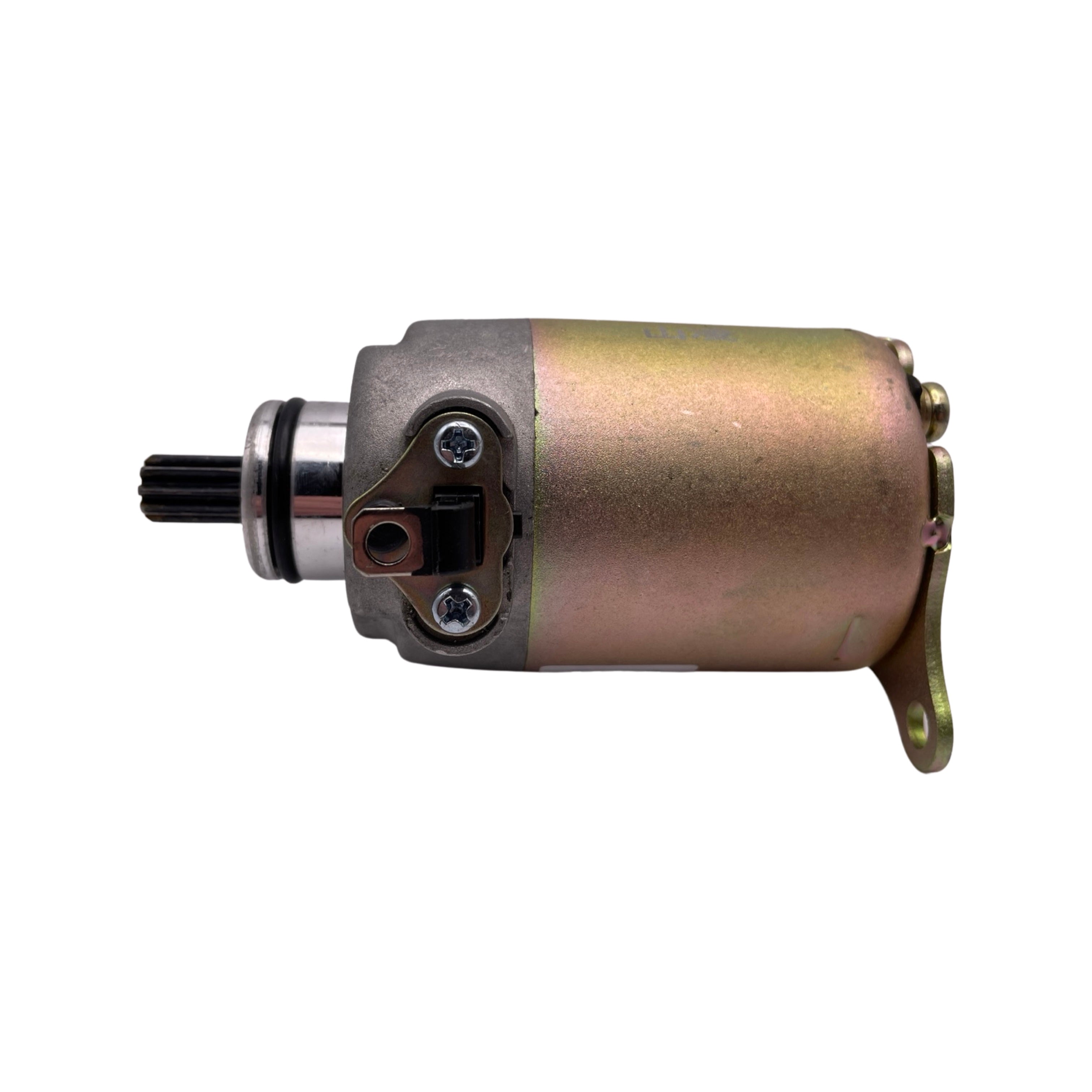

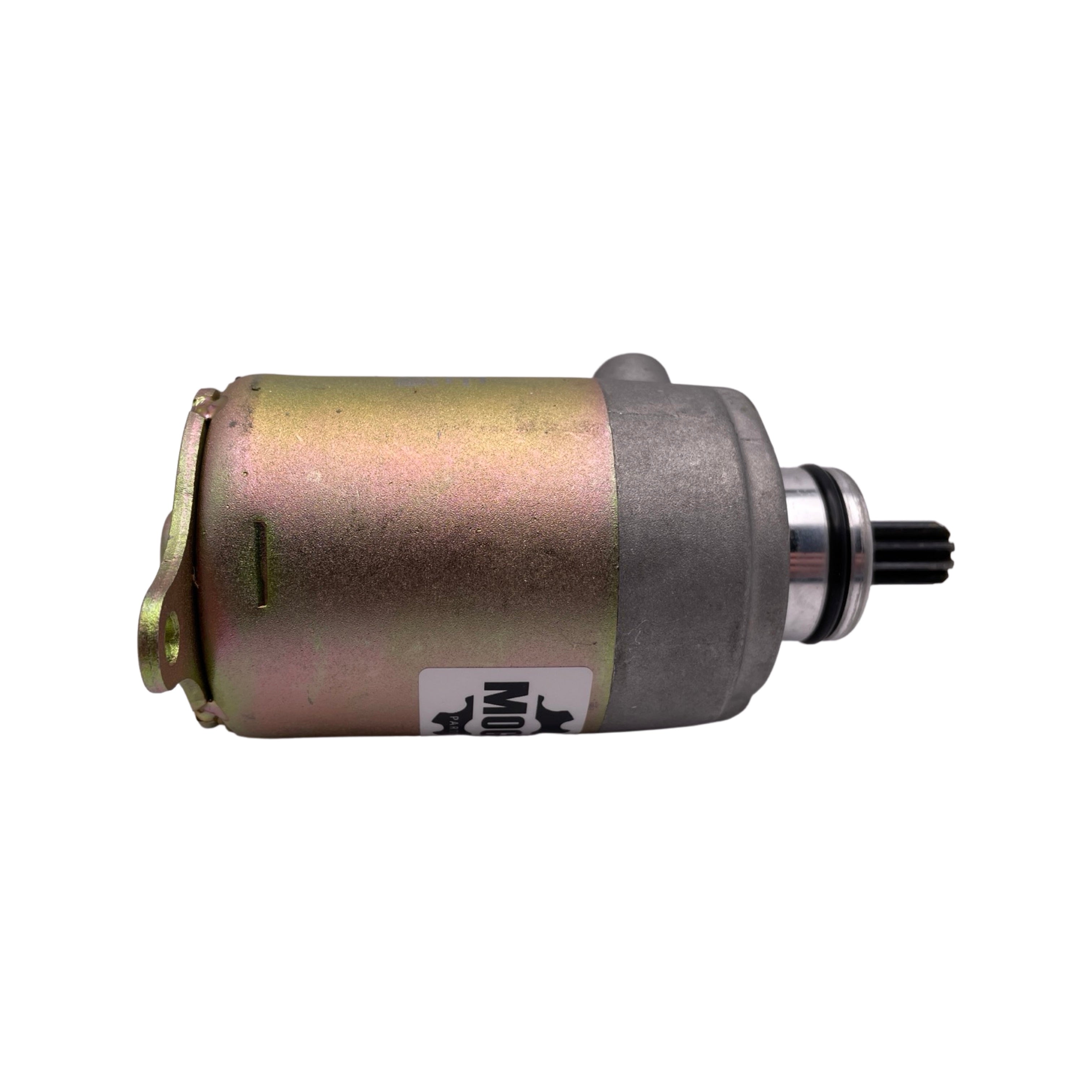

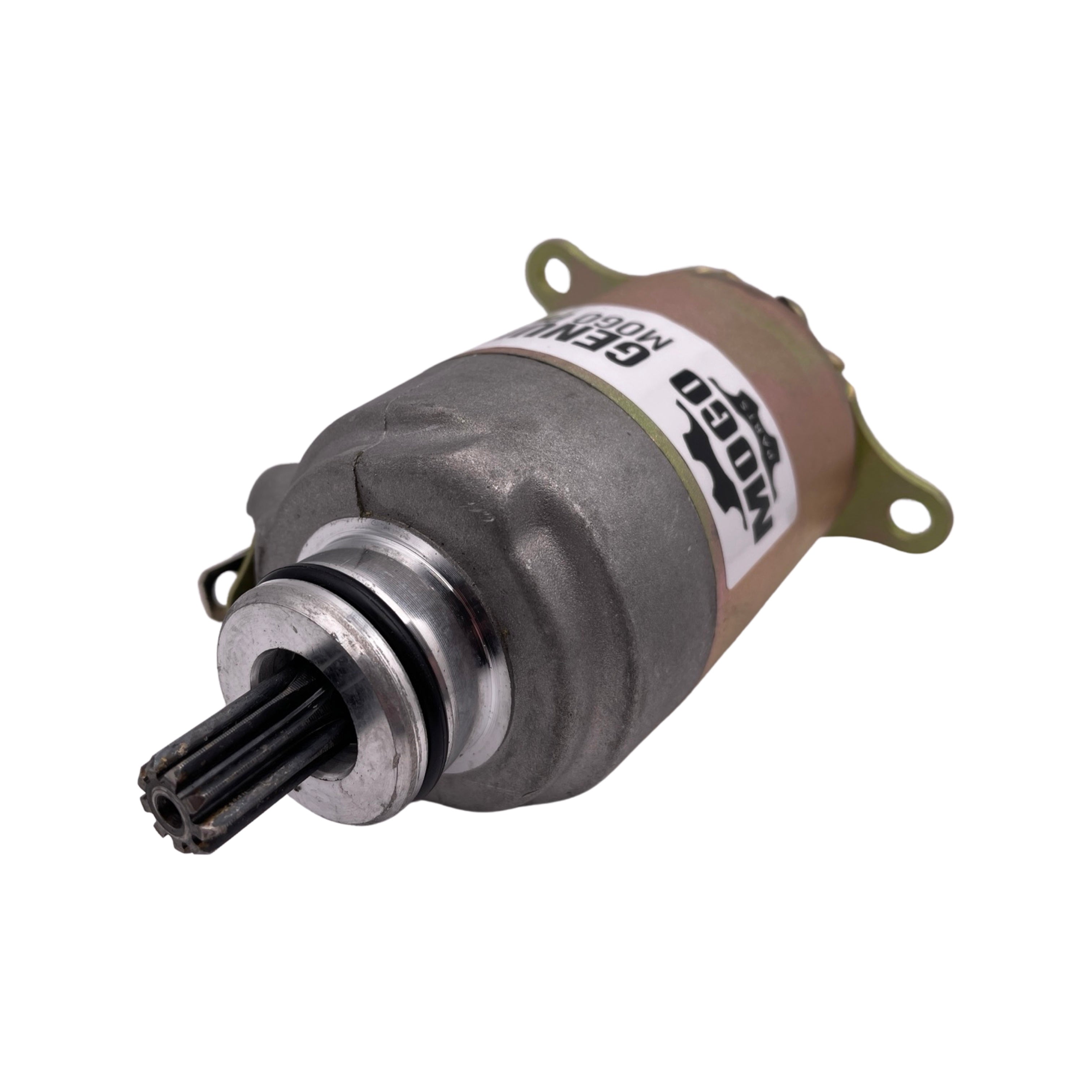

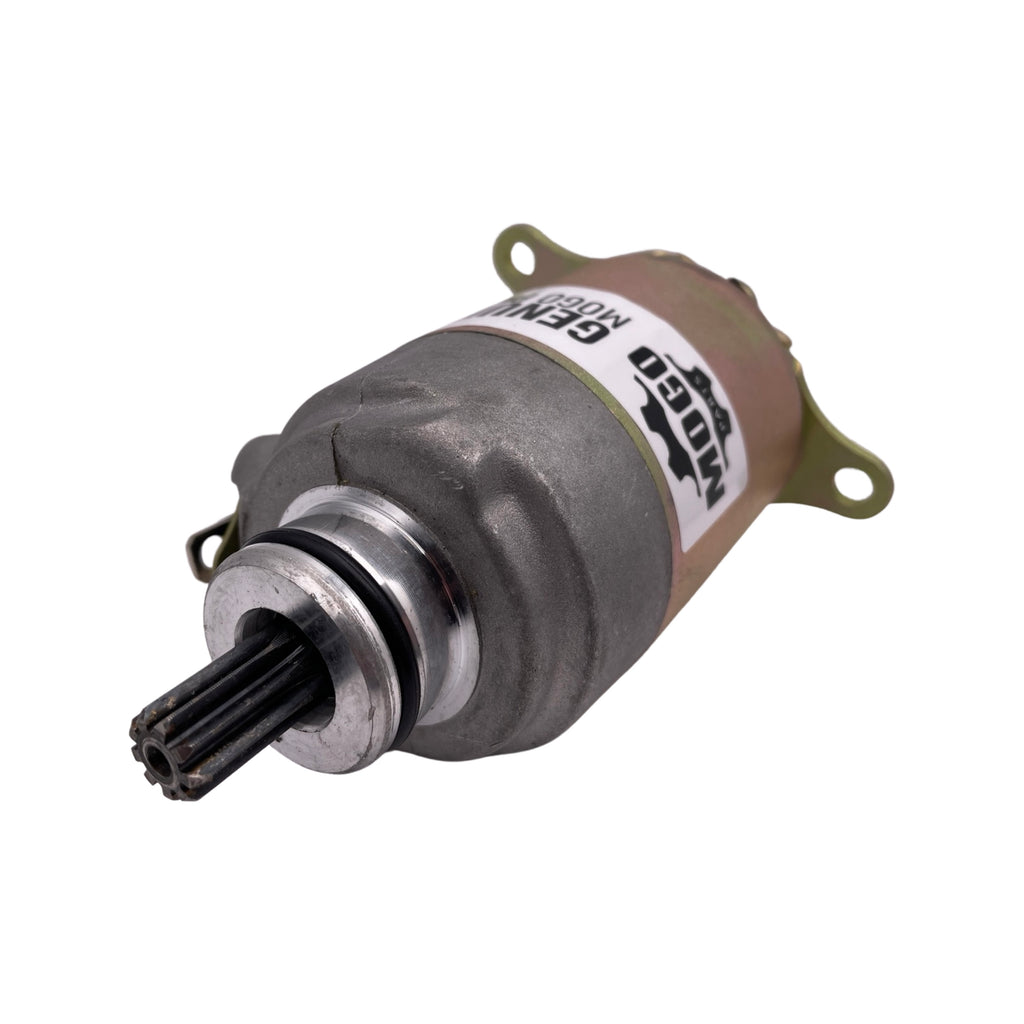

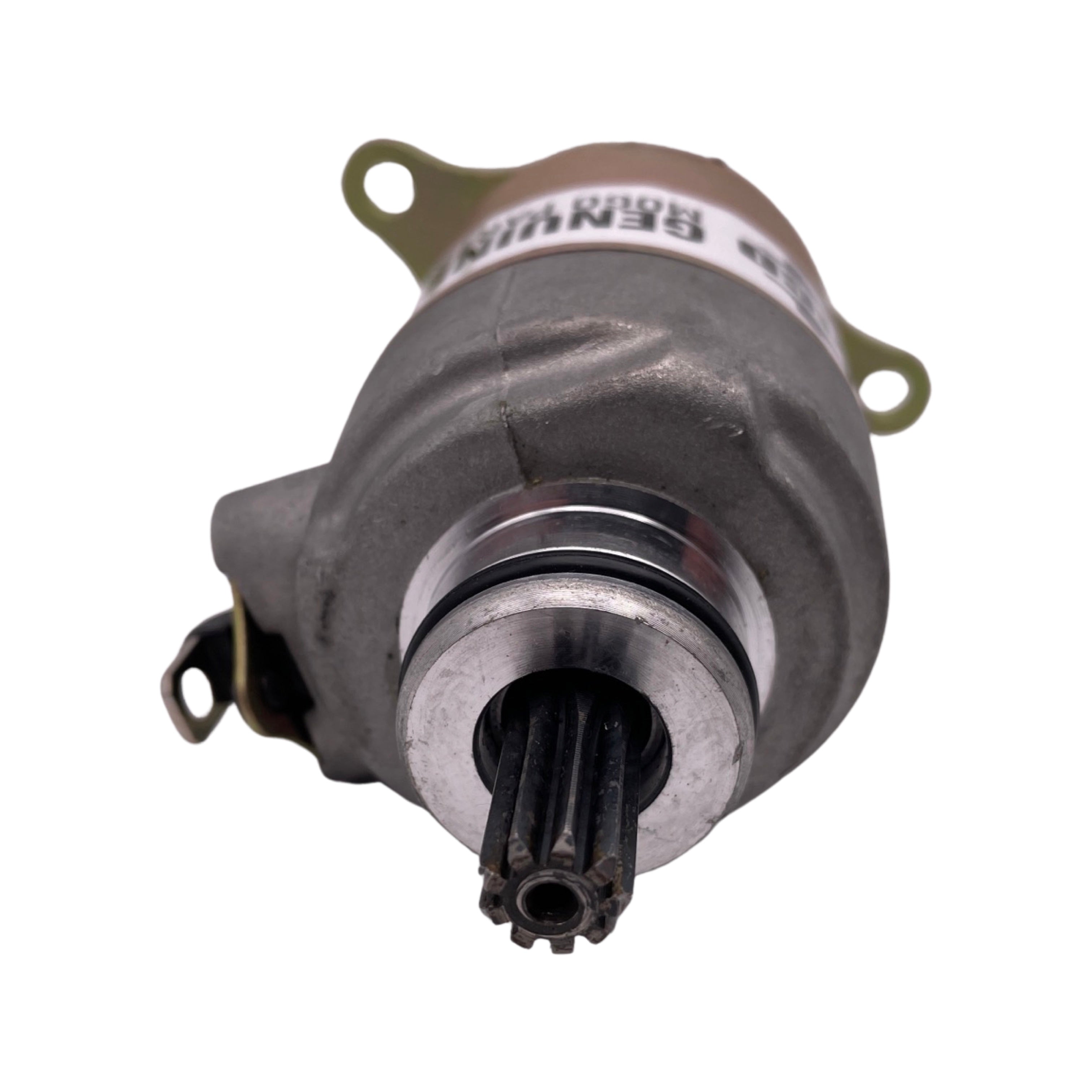

STARTER MOTOR, GY6 125/150cc (9-SPLINE)

STARTER MOTOR, GY6 125/150cc (9-SPLINE)

DESCRIPTION:

9-Tooth Starter Motor for GY6 125/150cc Scooters, Go Karts and ATVs.

SPECIFICATIONS:

• LENGTH: 5.0" (END-END)
• LENGTH #2: 3.5" MAIN CASE LENGTH
• MOUNTING HOLES: 2
• BOLT HOLE SPACING (BHS) 76MM / 3.0"
• DIAMETER: 60MM / 2.3"
• TERMINAL CONNECTION: SINGLE POST
• SPLINE COUNT: 9
• SPLINE LENGTH: 19MM
• ROTATION: CLOCKWISE
• WIRE: NOT INCLUDED

FITS ENGINE TYPE(S)

• GY6

FITS ENGINE SIZE(S)

• 125cc (GY6), 150cc (GY6)

Compatible with, but not necessarily limited to, engine images below (If applicable):

TECH TIPS:

• PMDD (Permanent-Magnet Direct-Drive)
• GROUND: NEGATIVE
• Always refer to your original owners/operator manual to confirm compatibility and installation details.
