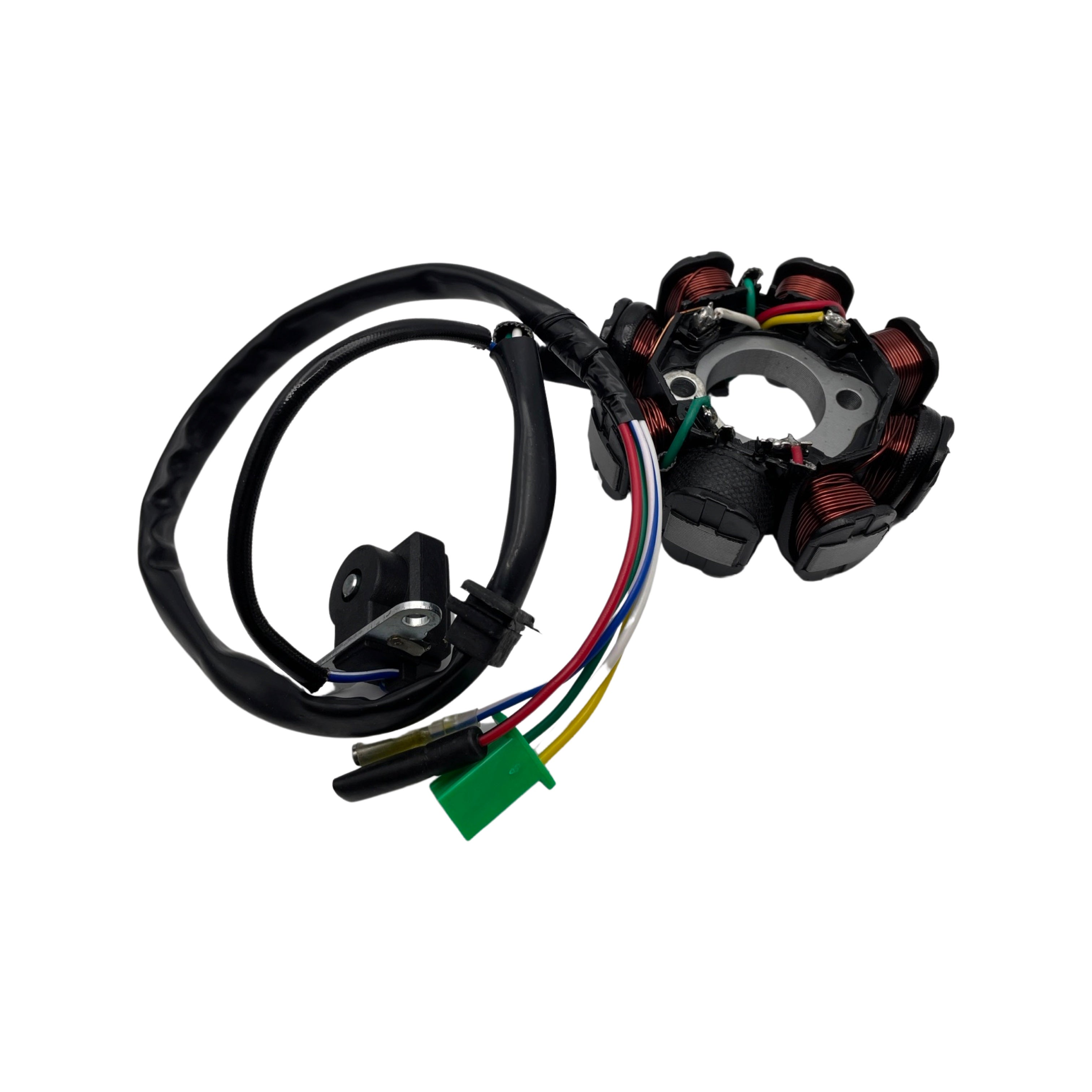

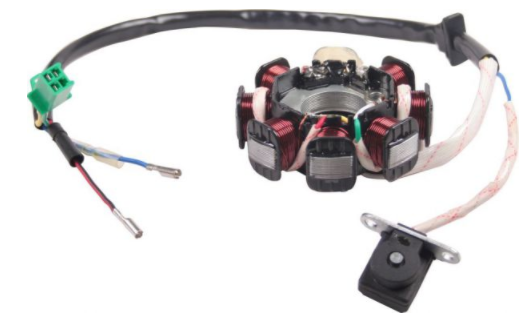

STATOR, 8-COIL (3+2 WIRE); 4-SLOT MALE CONNECTOR

STATOR, 8-COIL (3+2 WIRE); 4-SLOT MALE CONNECTOR

DESCRIPTION:

A Magneto/Stator is an electrical generator that uses permanent magnets to produce periodic pulses of alternating current to provide power to the spark plug(s). In some engine styles the stator can be located in an area that a derailed chain can cause damage to the stator and engine cover requiring replacement. Stators can also fail due to a number of reasons including shorts, water damage etc. If you are not generating power from your engine we recommend testing your stator to see if it needs replacement.

SPECIFICATIONS:

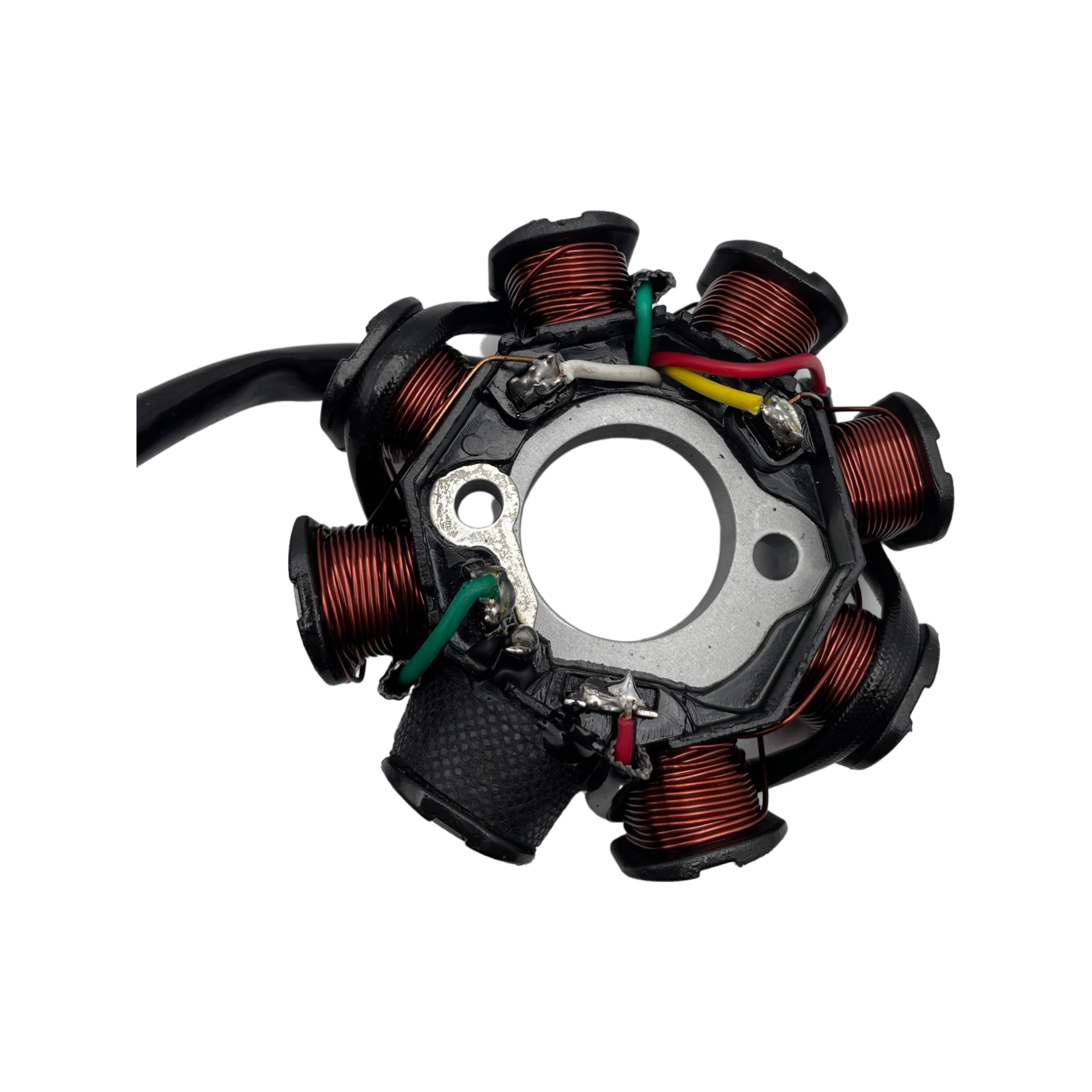

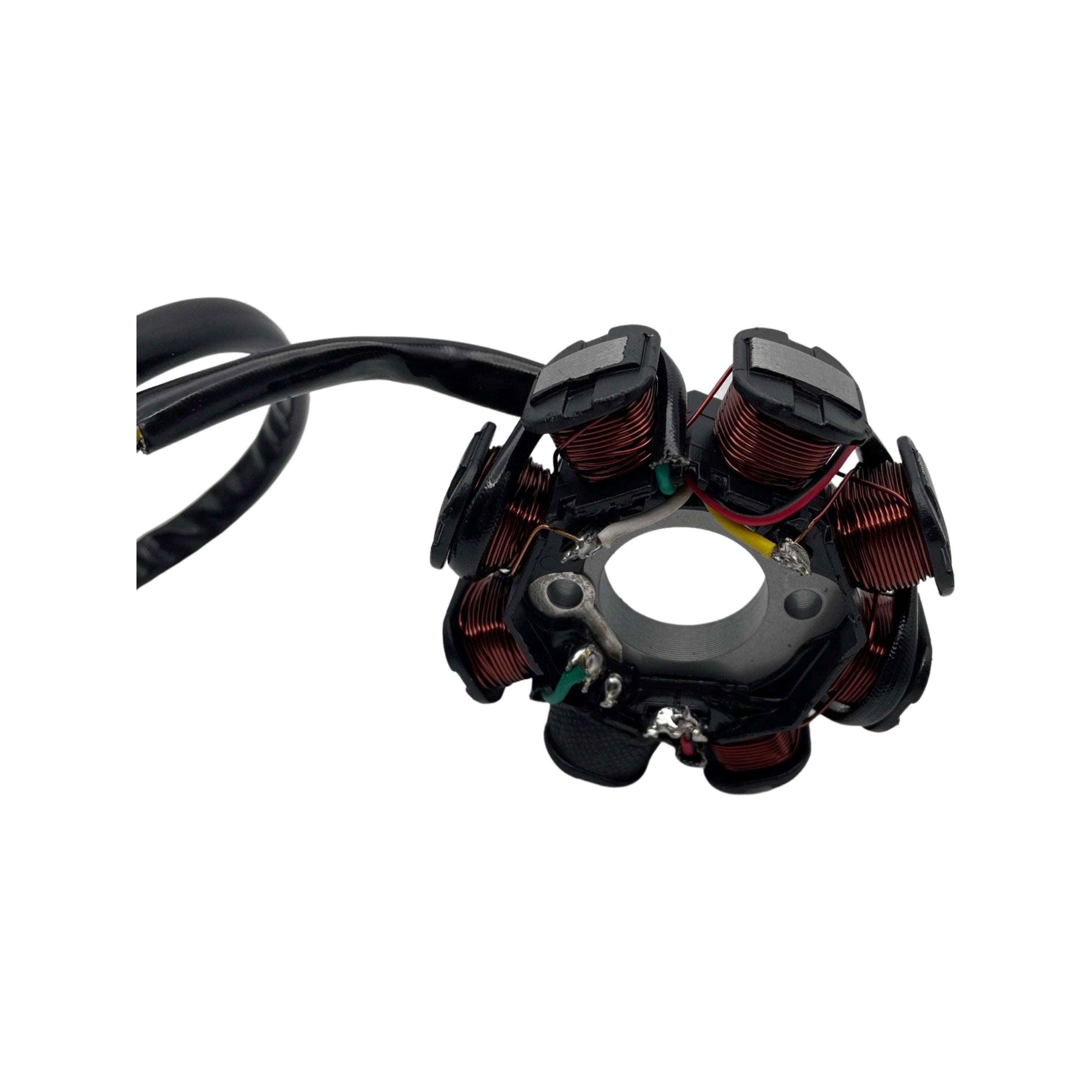

• NUMBER OF COILS: 8
• DIAMETER (O.D): 3.5"
• CENTER HOLE DIAMETER (I.D): 29mm / 1.0"
• WIRES: 3 + 2 WIRES;
• WIRE LENGTH: 17" APPROX.

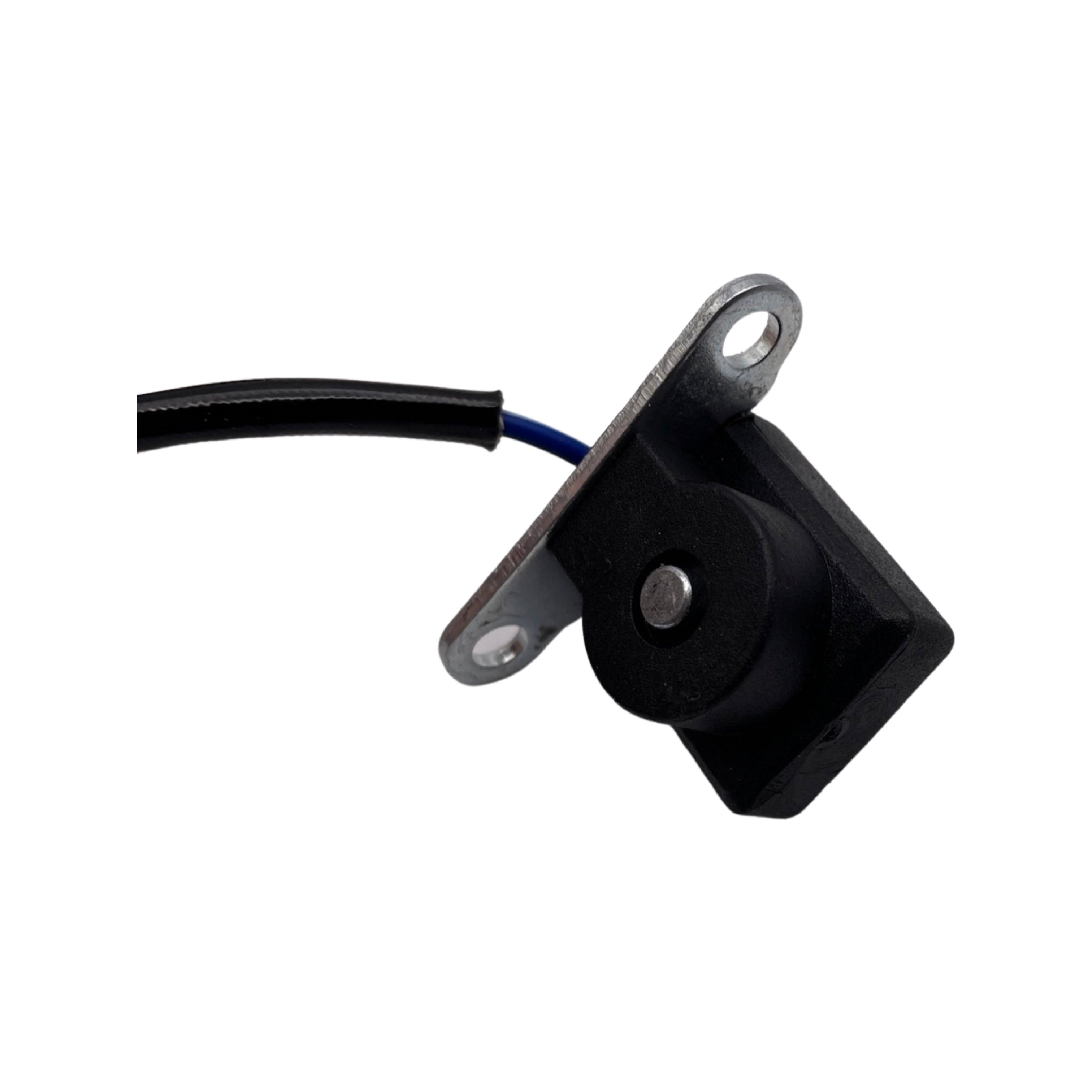

• PICKUP: INCLUDED
• MOUNTING HOLES: 2
• BOLT HOLE SPACING (BHS): 42MM / 1.65"
• VOLT TYPE: 12V

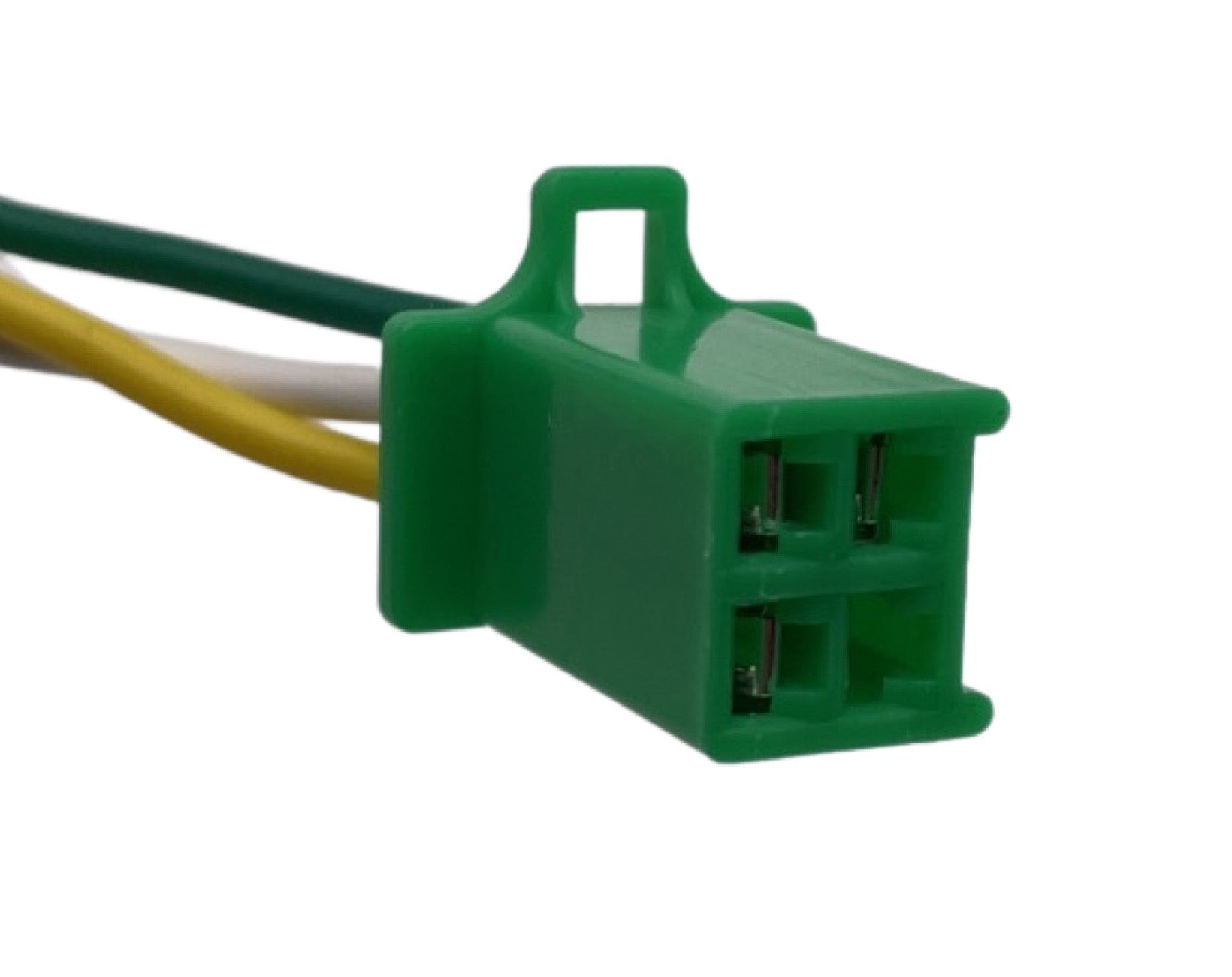

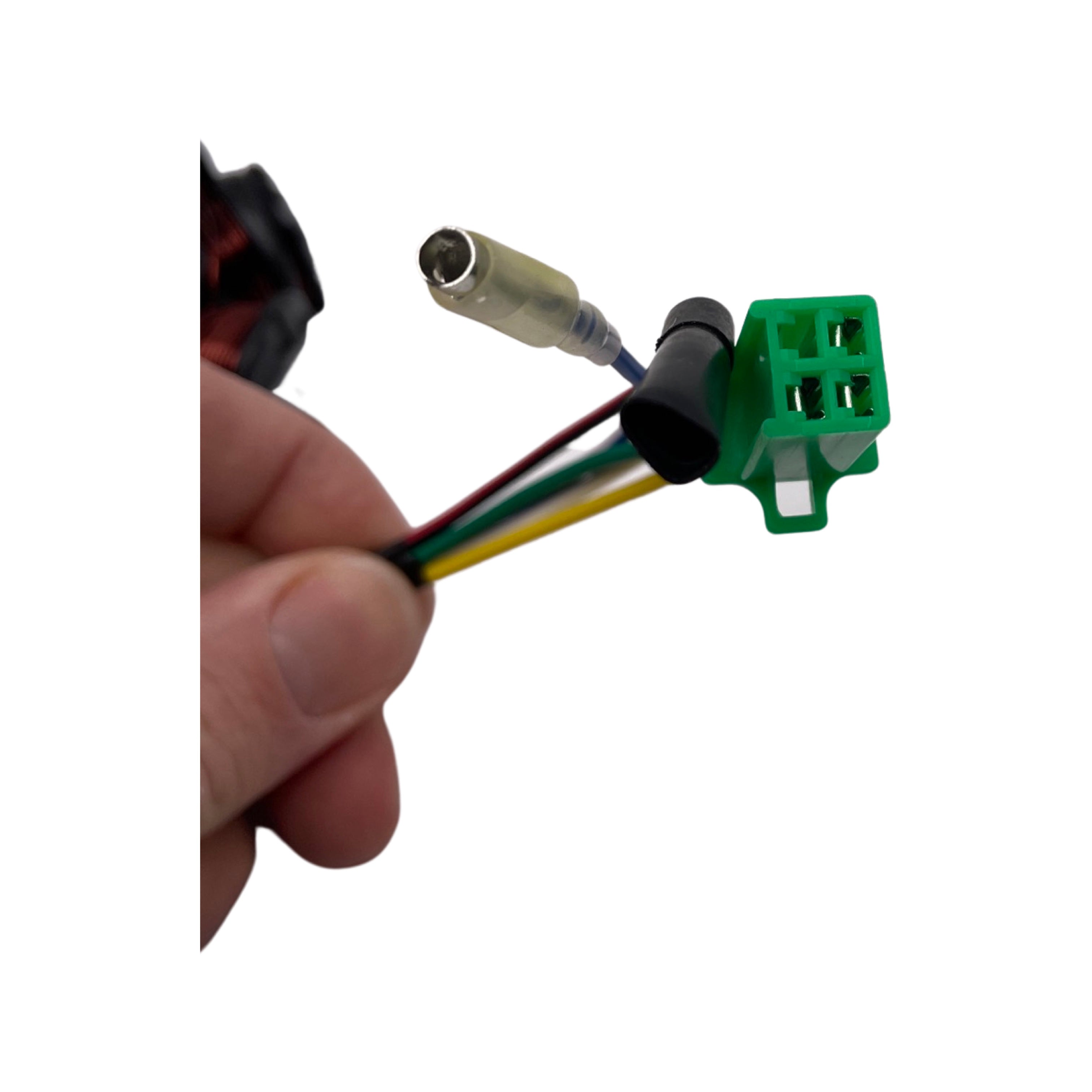

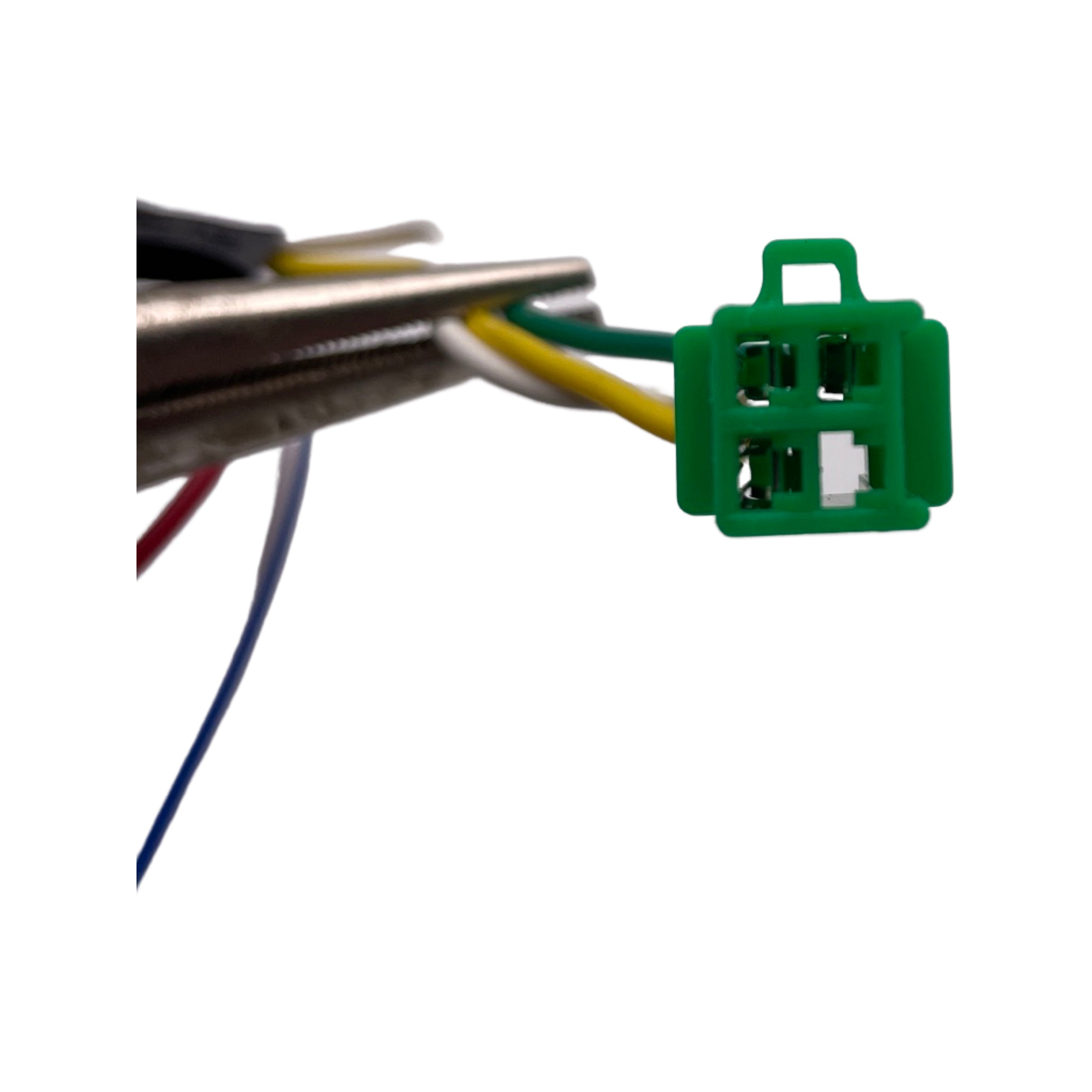

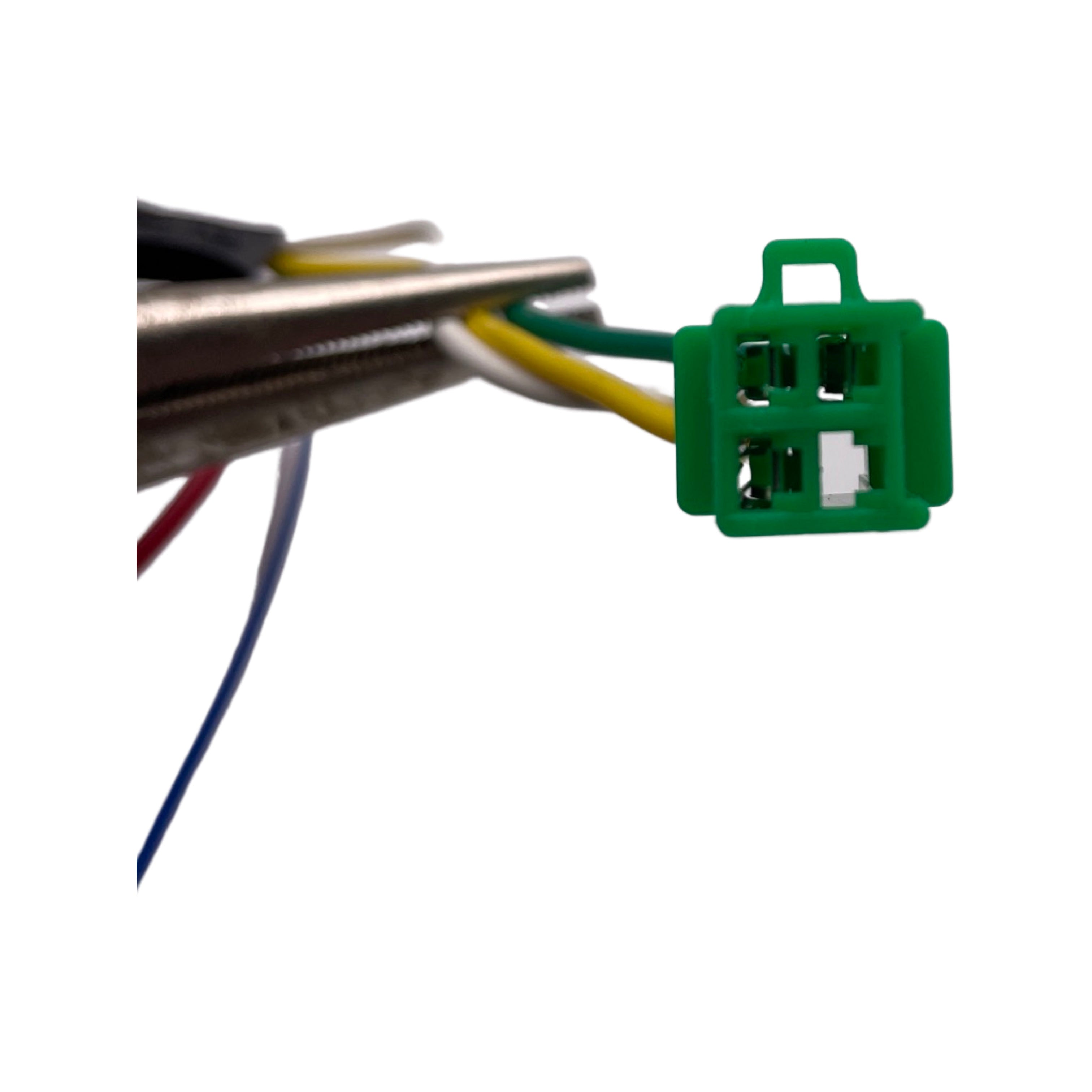

• CONNECTOR PLUG: 4 WIRE MALE CONNECTOR (USES ONLY 3 WIRES OF THE 4 WIRE SLOTS AVAILABLE). PLUG COLOR USUALLY WHITE OR GREEN.

FITS ENGINE TYPE(S)

• GY6

FITS ENGINE SIZE(S)

• 50cc (GY6), 125cc (GY6), 150cc (GY6)

Compatible with, but not necessarily limited to, engine images below (If applicable):

TECH TIPS:

• Always refer to your original owners/operator manual to confirm compatibility and installation details.
