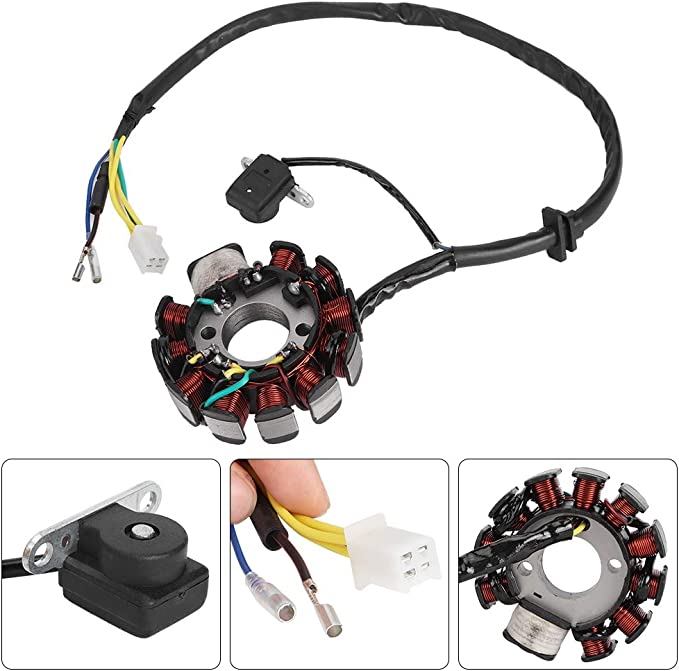

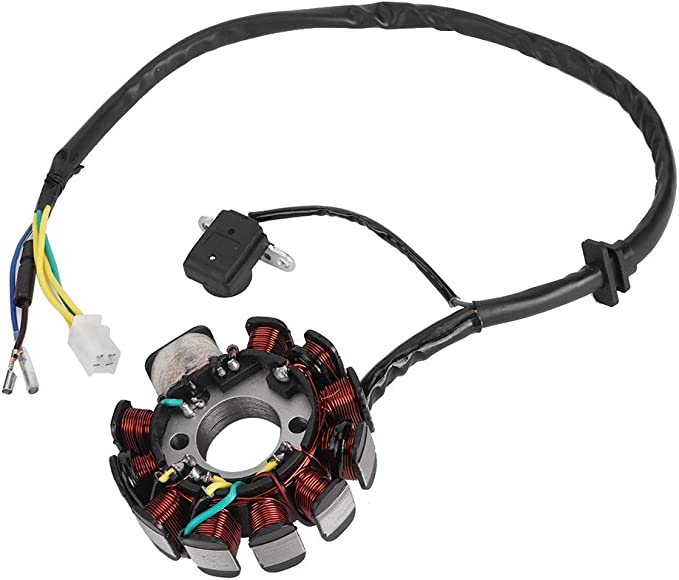

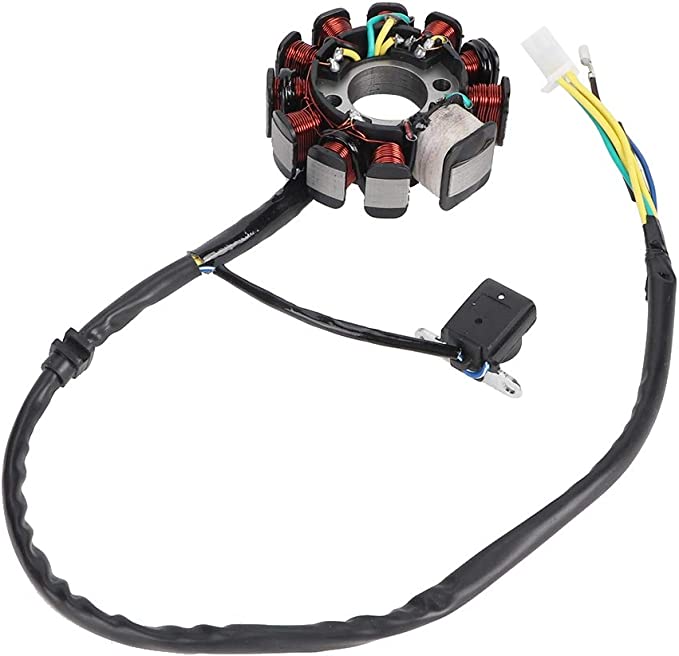

STATOR, 11-COIL (4+2 WIRE)
DESCRIPTION:
A Magneto/Stator is an electrical generator that uses permanent magnets to produce periodic pulses of alternating current to provide power to the spark plug(s). In some engine styles the stator can be located in an area that a derailed chain can cause damage to the stator and engine cover requiring replacement. Stators can also fail due to a number of reasons including shorts, water damage etc. If you are not generating power from your engine we recommend testing your stator to see if it needs replacement.
SPECIFICATIONS:

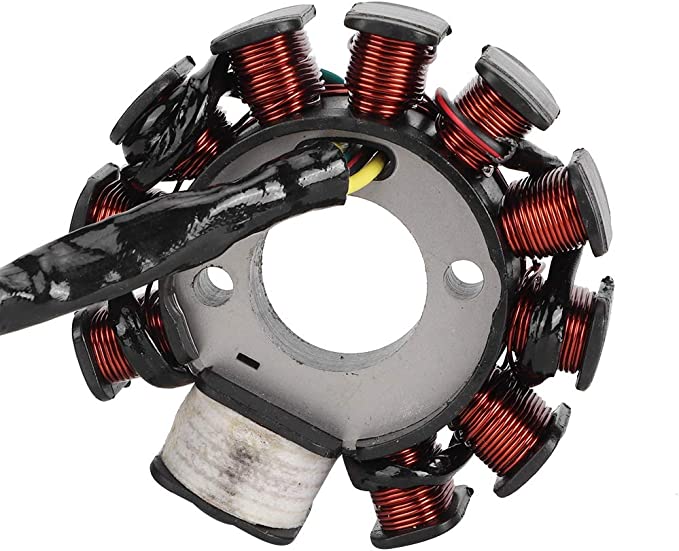

- NUMBER OF COILS: 11
- DIAMETER (O.D): 3.5"
- BOLT HOLE SPACING: 40mm (on Center); 35mm inside edge.
- CENTER HOLE DIAMETER (I.D): 29mm / 1.0"
- WIRES: 4 + 2
- 4 WIRE FEMALE CONNECTOR - 3 YELLOW + 1 GREEN WIRE
- 2 LOOSE WIRE BULLET CONNECTORS

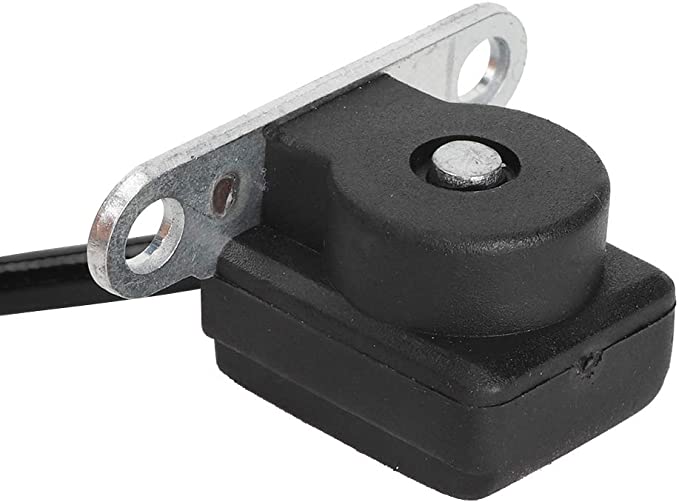

- PICKUP: INCLUDED (35mm Bolt Hole Mounting)
- MOUNTING HOLES: 2
- VOLT TYPE: 12V
INCLUDES:
- PICK UP TRIGGER (Attached)
NOT INCLUDED:
FITS ENGINE TYPE(S)
FITS ENGINE SIZE(S)
Compatible with, but not necessarily limited to, engine images below (If applicable):
TECH TIPS:
- Always refer to your original owners/operator manual to confirm compatibility and installation details.
