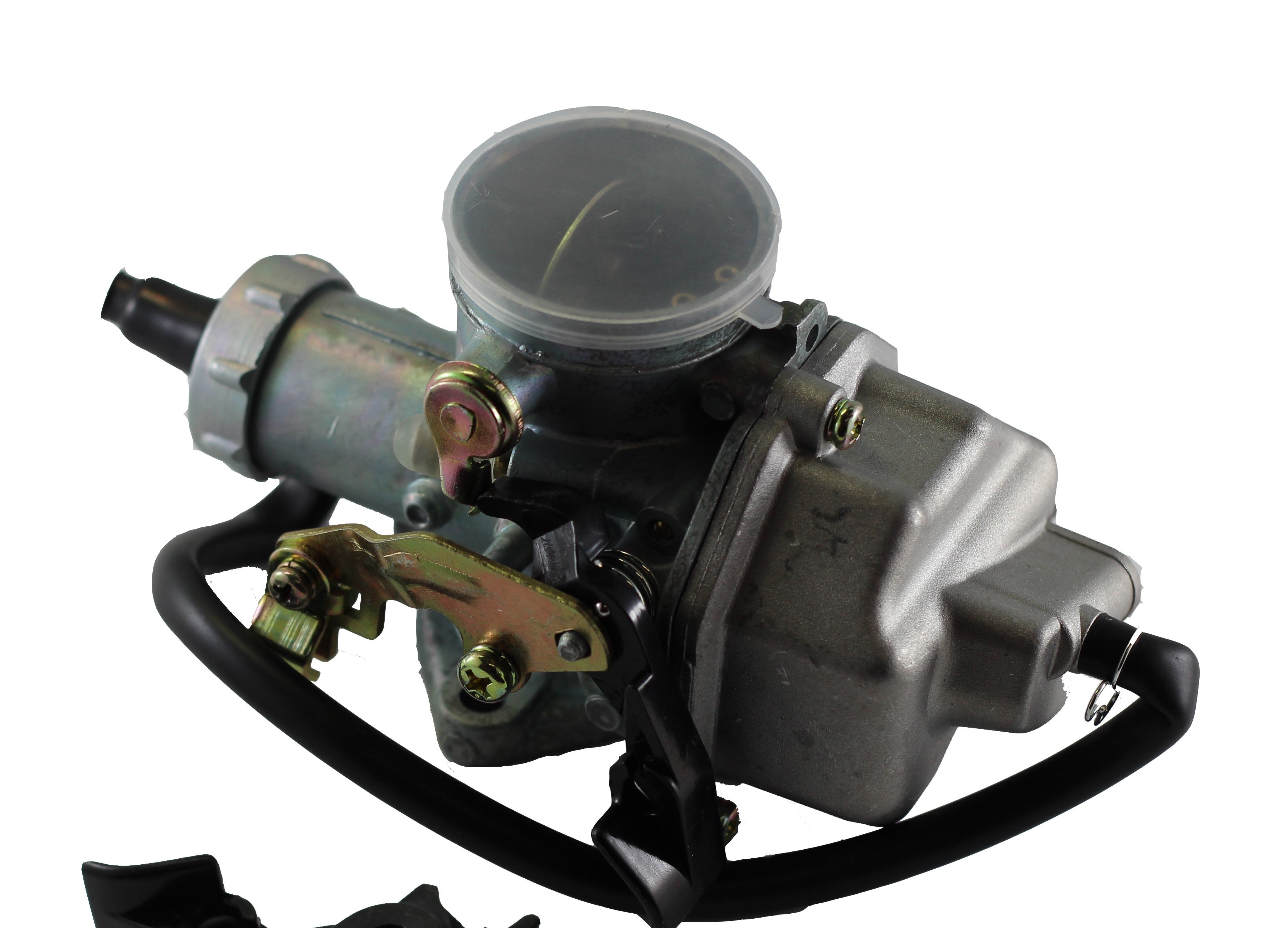

CARBURETOR 30mm VERTICAL 150-250cc
DESCRIPTION:
THIS CARBURETOR IS COMMONLY USED ON MANY BRANDS OF DIRTBIKES, ATVS AND GOKARTS USING THE 150-250cc VERTICAL ENGINES.

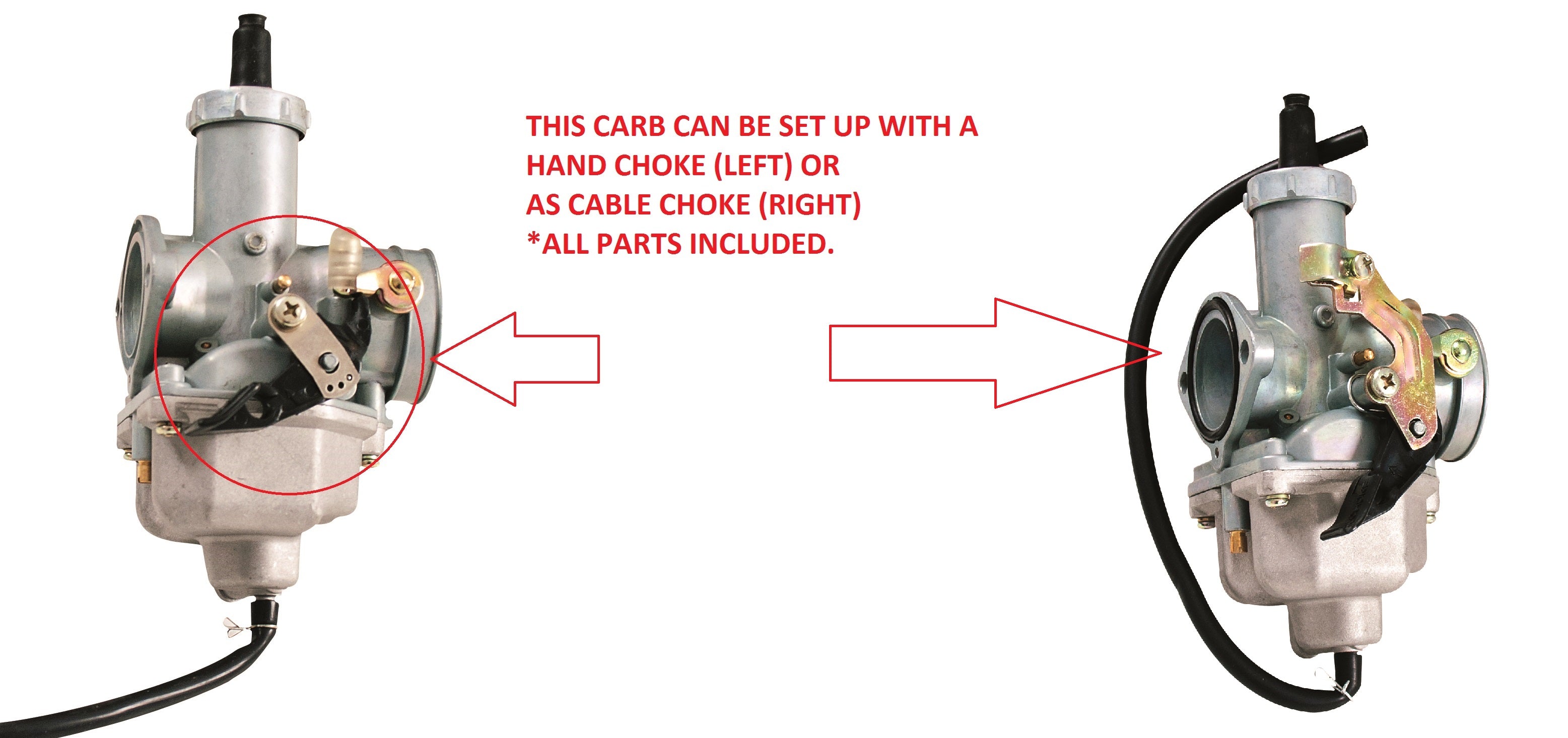

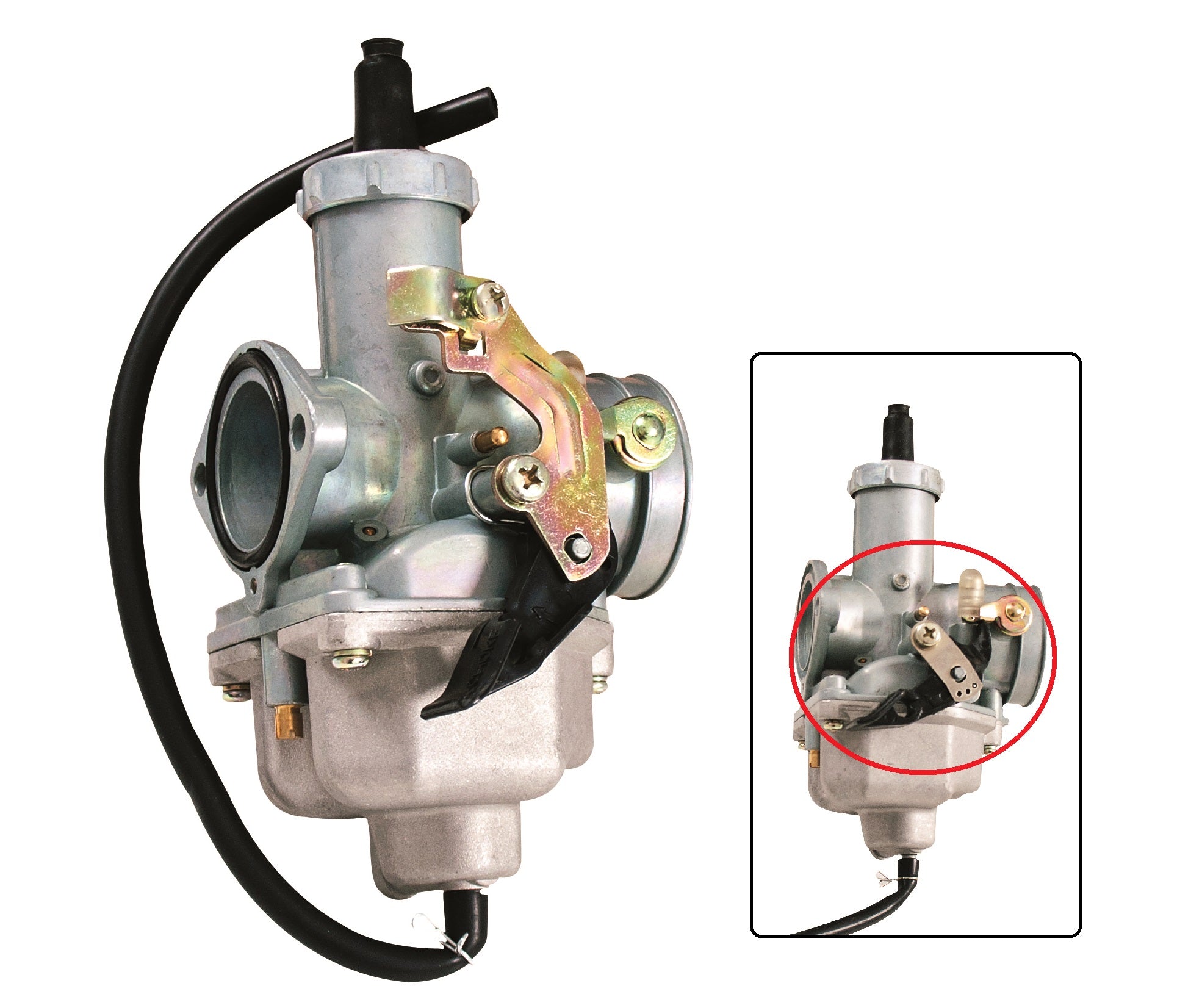

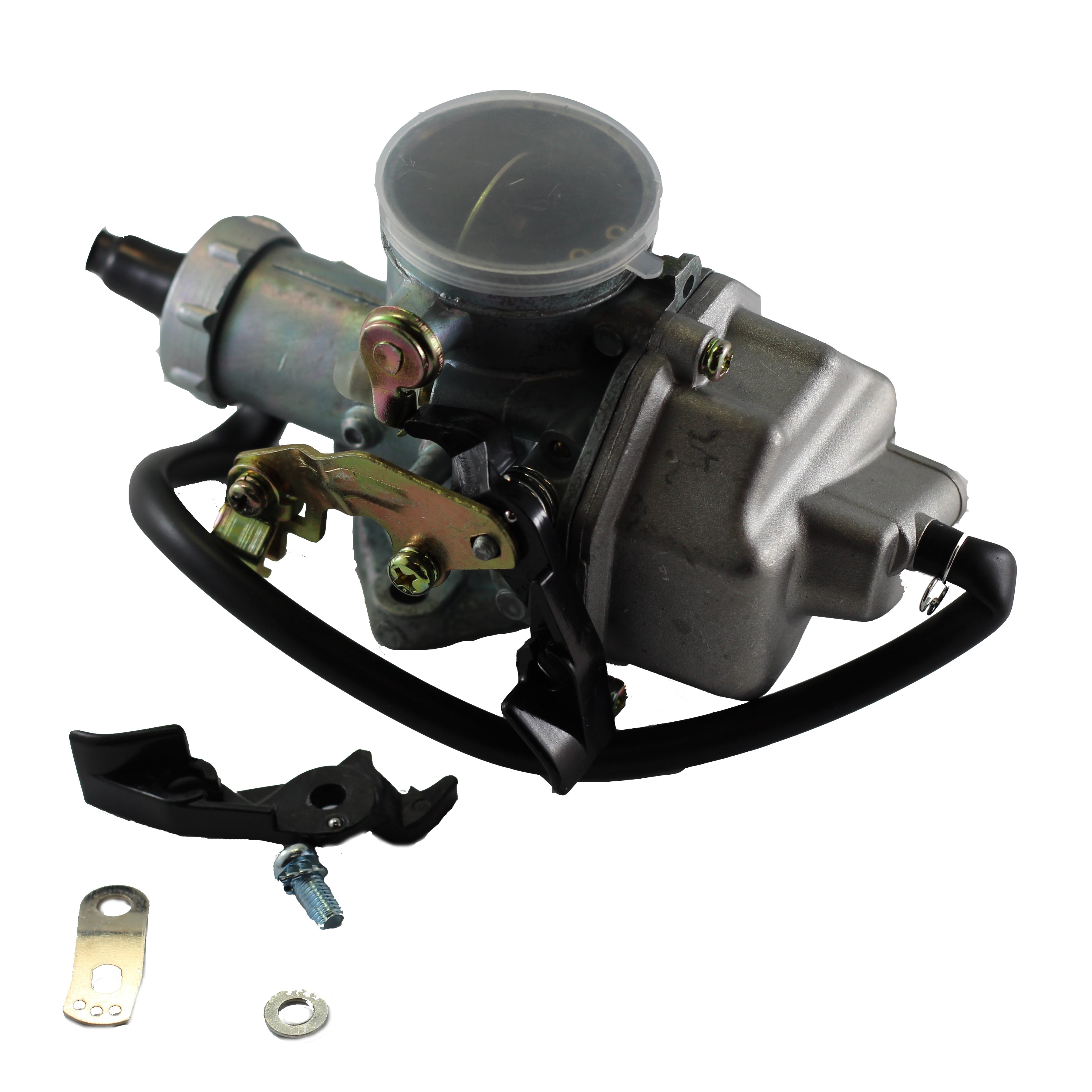

COMES SETUP TO OPERATE WITH CABLE OPERATED CHOKES. A CONVERSION KIT IS INCLUDED TO ALLOW EASY CONVERSION TO HAND OPERATED CHOKE IF YOUR MODEL DOES NOT HAVE A CHOKE CABLE INSTALLED.
SPECIFICATIONS:
- VENTURI OPENING: 30MM**
- CHOKE TYPE: Cable Operated; Includes Kit to easily convert choke to Hand Operated
- BOLT HOLE SPACING: 48mm
- FLOAT BOWL SHAPE: RECTANGULAR
- AIR FILTER SIZE REQUIRED: 42mm * Air Filter Sold Separate
- FUEL LINE SIZE: 3/16" ID
- FOR USE WITH CABLE STYLE(S): T2, T3 (ATV) OR T4 STYLE CABLES **CABLE SOLD SEPARATE.
- MOUNTING METHOD/TYPE: BOLT MOUNTED, BOLTS NOT INCLUDED
INCLUDES:
NOT INCLUDED:
- MOUNTING BOLTS
- THROTTLE CABLE
- INTAKE MANIFOLD SPACERS
- AIR FILTER
- AIR FILTER
FITS ENGINE TYPE(S)
FITS ENGINE SIZE(S)
- 200cc (Vertical), 250cc (Vertical)
Compatible with, but not necessarily limited to, engine images below (If applicable):
TECH TIPS:
- Always refer to your original owners/operator manual to confirm compatibility and installation details.
NOTICES/WARNINGS:
- Carb Kits, Jets, Floats are NOT available for this item. Sold as complete assembly only
- IDENTIFYING FEATURES: Note the rectangular shape of the float bowl and the venturi opening.
DISTRIBUTOR PART #(S)
BEFORE CALLING OR VISITING YOUR LOCAL DEALER...
Have BOTH the Outside Distributing Part Number and the Distributor Re-Seller Part Number(s) handy when calling your local dealer. Most dealers will require the appropriate distributor part number when you call to order. If a distributor does not list the item you can order online.
USA - DISTRIBUTORS
Distributor |
Part Number |
WESTERN POWERSPORTS (WPS Inc.) |
609-0126 |
TUCKER POWERSPORTS |
178293 |
J&M ATV Supply |
CCK0021CC |
CANADIAN - DISTRIBUTORS
Distributor |
Part Number |
GAMMA POWERSPORTS |
65-00404 |
KIMPEX |
217948 |
ROYAL DISTRIBUTING |
C07-030021 |
MOGO UPC-A: 874285000174
