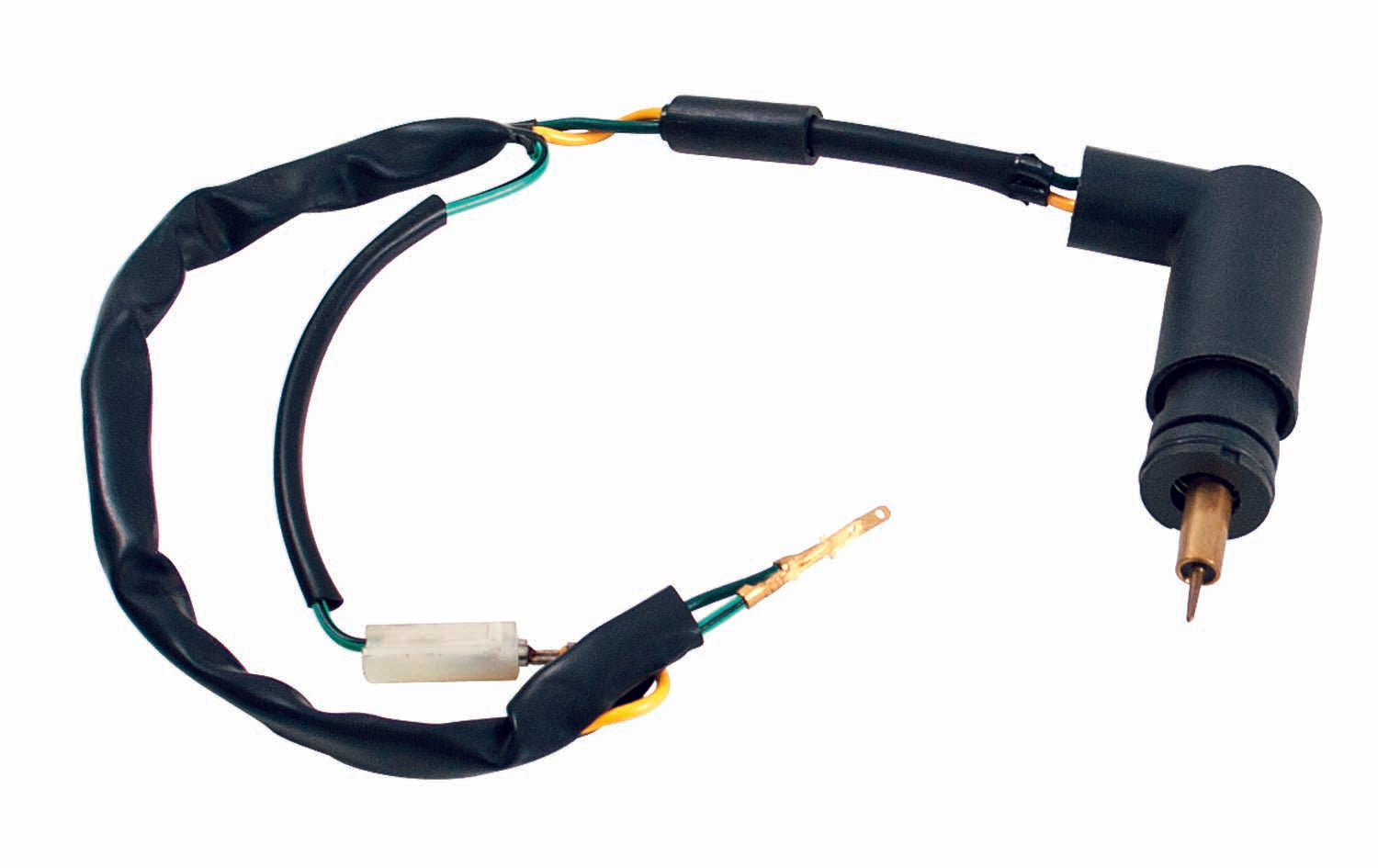

ELECTRIC CHOKE: GY6/CF 250cc (3-WIRE)

ELECTRIC CHOKE: GY6/CF 250cc (3-WIRE)

DESCRIPTION:

If your having issues starting your vehicle you may find that it is the electric choke that has failed. When you start your unit the RPMs are high, if the choke is working properly then the RPMs should come down automatically after a few minutes. If the RPMs stay high then it is a common sign that your electric choke has failed and will need to be replaced. Our quality electric choke is designed to help improve your ride and replaces with ease. Please see the SPECS Tab for complete details. *Not compatible with CVK Style GY6 Carburetors.

SPECIFICATIONS:

• DIAMETER(S): DIAMETER: 20MM
• CONNECTOR(S) DETAILS: 3-WIRE CONNECTORS (2 FEMALE CONNECTOR, 1- SINGLE CONNECTOR)
• TYPE: 12v
• WIRE LENGTH (APPROX): 9"
• LENGTH: NEEDLE LENGTH 9.5MM

FITS ENGINE TYPE(S)

• GY6

FITS ENGINE SIZE(S)

• 250cc (GY6/CF)

Compatible with, but not necessarily limited to, engine images below (If applicable):

TECH TIPS:

• Resistance Test: 10-30 ohms is acceptable
• **Technical Notes: When power is applied to the choke/encricher the plunger will start to extend, it takes approximately 2-3 minutes to fully extend. If working properly the RPMs will lower after 2-3 minutes.
• Always refer to your original owners/operator manual to confirm compatibility and installation details.
