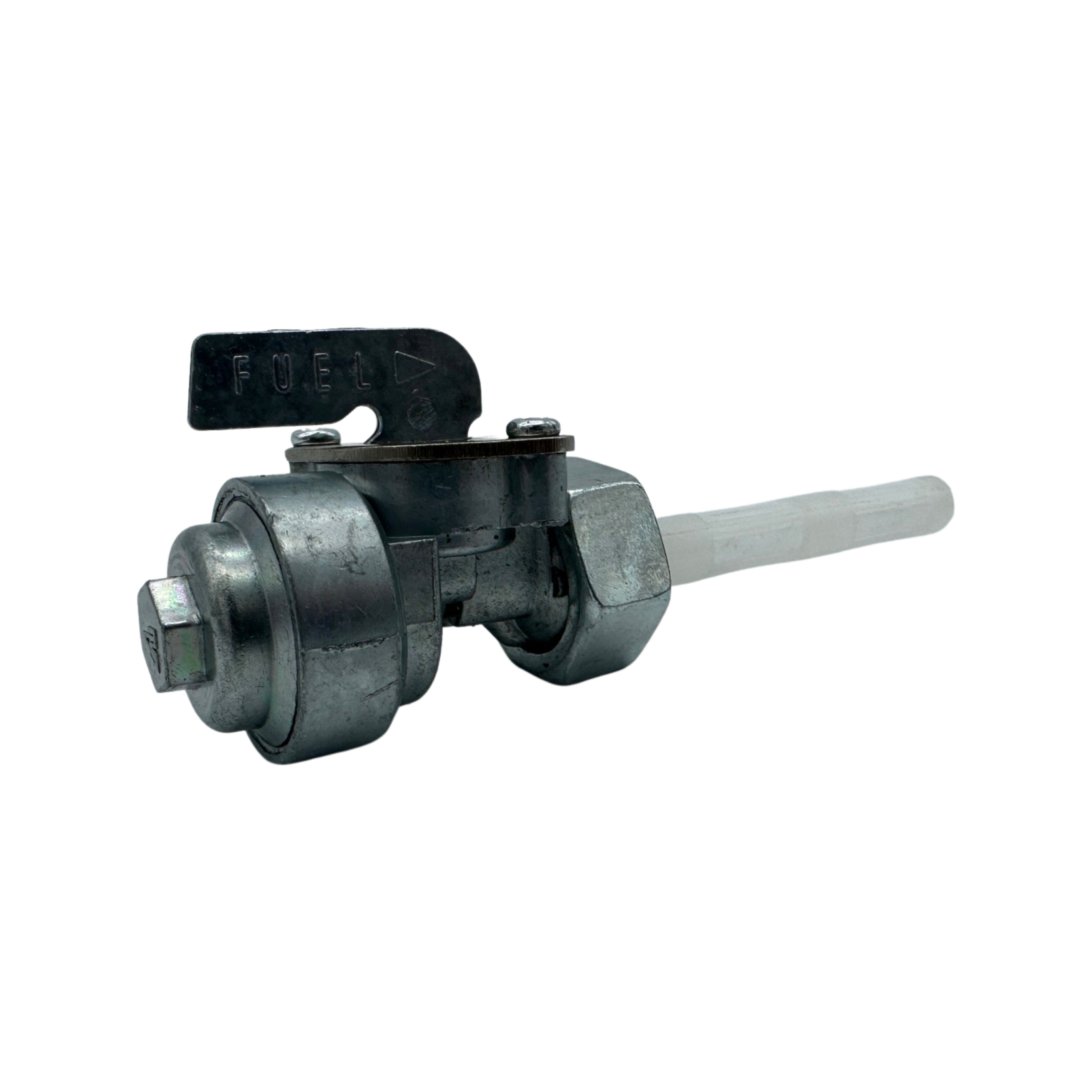

FUEL VALVE 3/16", 90 DEGREE, 3/16" Barb x Threaded Nut (M13)
DESCRIPTION:
This high quality metal fuel shut off includes a built in fuel filter system ensuring debris does not move from the tank to the carburetor.
SPECIFICATIONS:
- MATERIAL TYPE: METAL / PLASTIC
- MOUNTING METHOD/TYPE: THREAD ON
- USES FUEL LINE SIZE (INNER DIAMETER): 3/16" I.D.
- THREAD SIZE: 13mm I.D. (M13) *Measurement between threads may read between 13.2-13.6mm
- LENGTH, END-END: 130MM / 5"
- FUEL FILTER TYPE: SCREEN / INTERNAL
- THREAD TYPE: FEMALE, M13
- "NECK" CLEARANCE SPACING: 0MM
Compatible with, but not necessarily limited to, engine images below (If applicable):
TECH TIPS:
- Always refer to your original owners/operator manual to confirm compatibility and installation details.
DISTRIBUTOR PART #(S)
BEFORE CALLING OR VISITING YOUR LOCAL DEALER...
Have BOTH the Outside Distributing Part Number and the Distributor Re-Seller Part Number(s) handy when calling your local dealer. Most dealers will require the appropriate distributor part number when you call to order. If a distributor does not list the item you can order online.
USA - DISTRIBUTORS
Distributor |
Part Number |
WESTERN POWERSPORTS (WPS Inc.) |
609-0450 |
TUCKER POWERSPORTS |
178303 |
J&M ATV Supply |
CPC0300 |
CANADIAN - DISTRIBUTORS
Distributor |
Part Number |
GAMMA POWERSPORTS |
62-00501 |
KIMPEX |
217028 |
ROYAL DISTRIBUTING |
C07-040300 |
MOGO UPC-A: 874285000297
