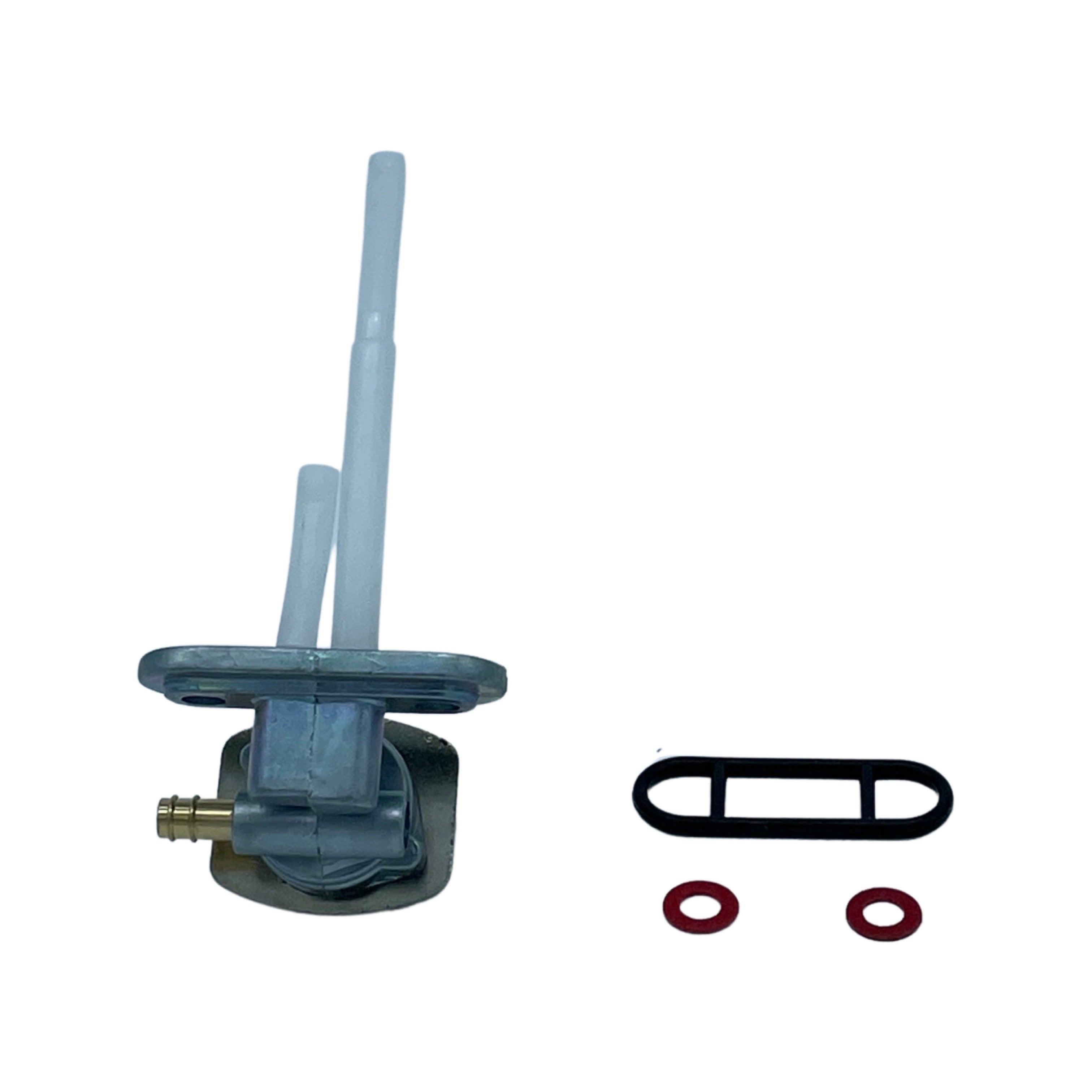

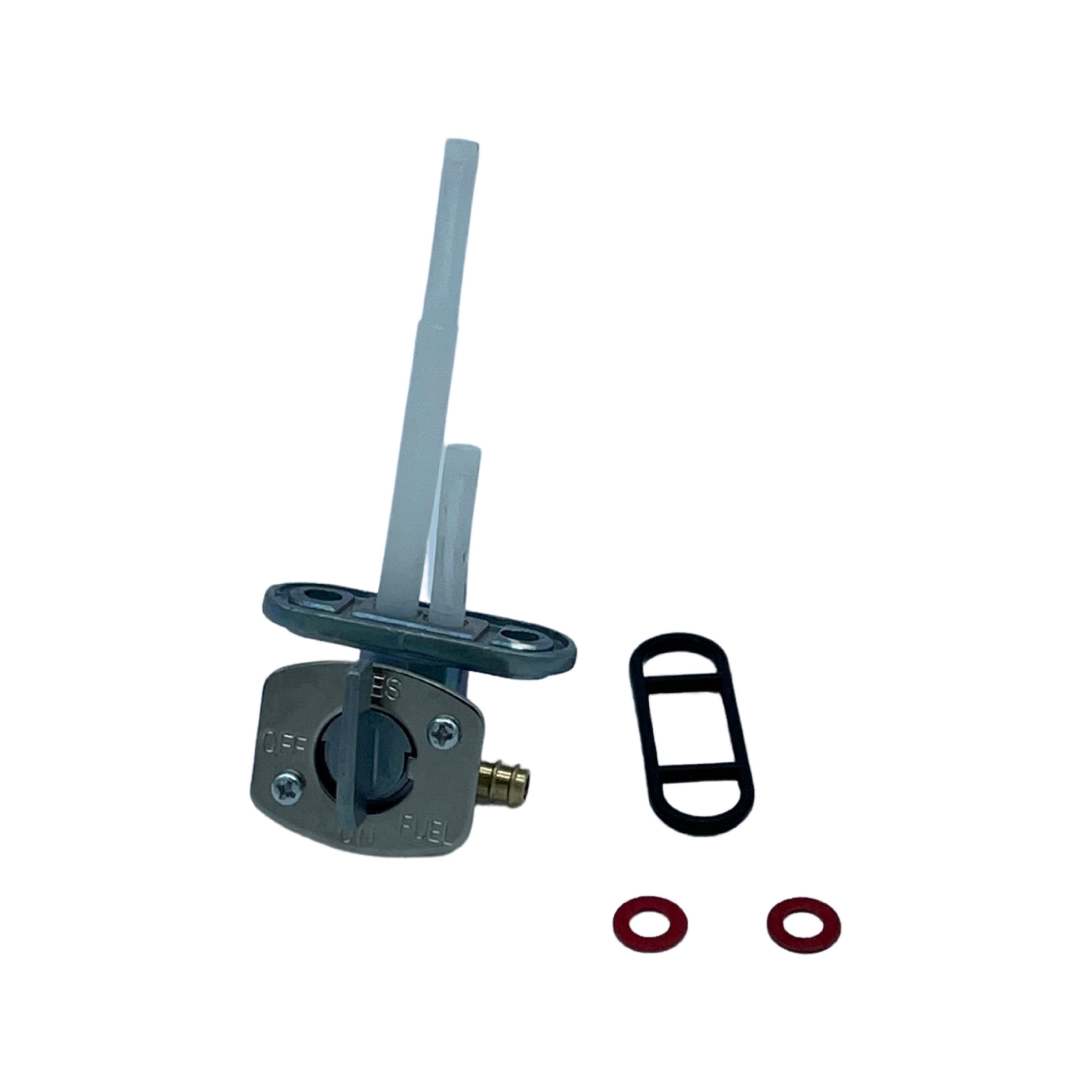

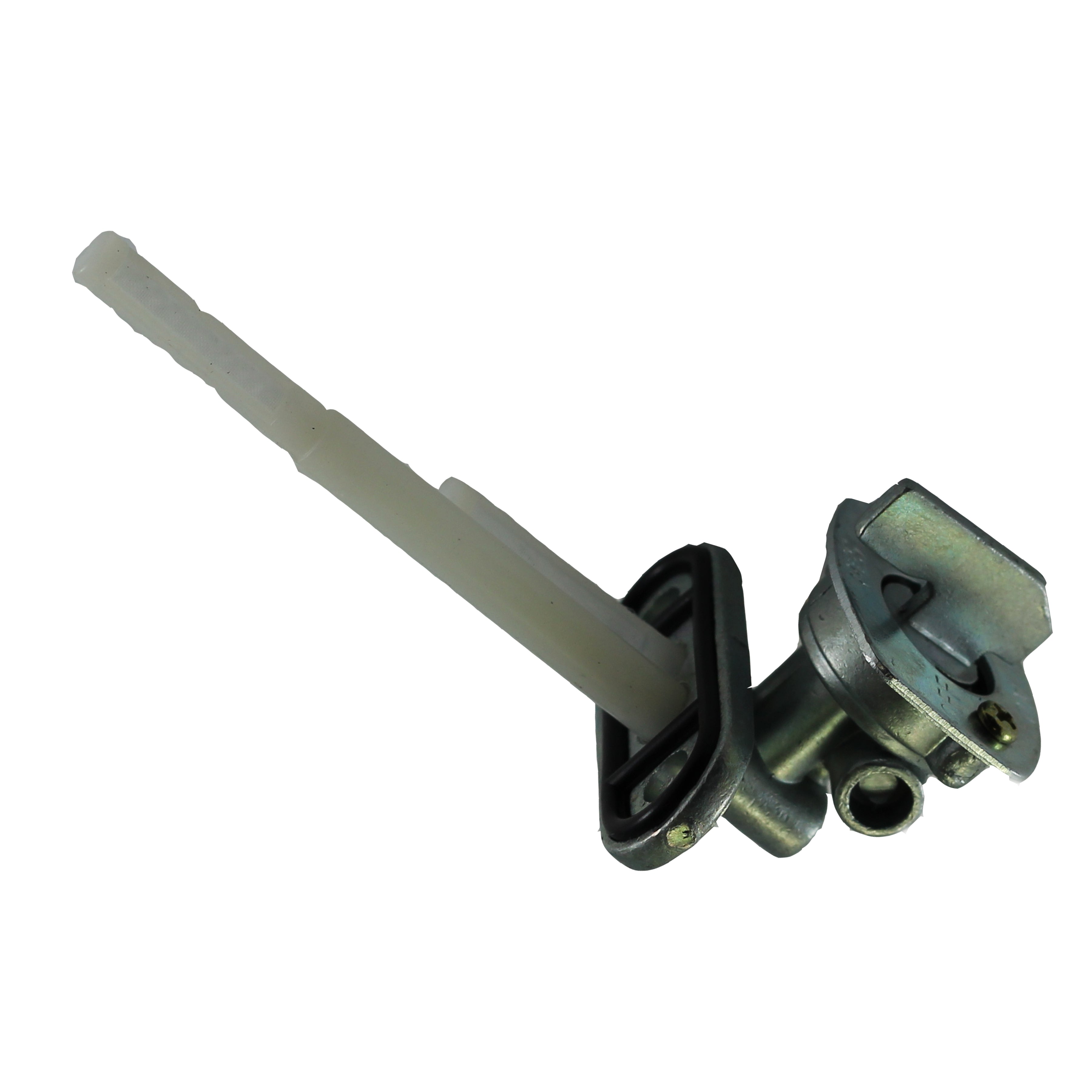

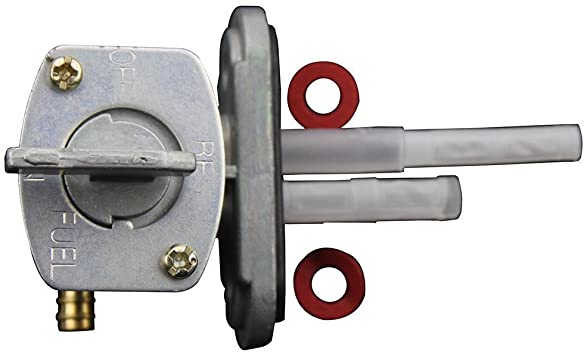

FUEL VALVE 3/16" Barb (ON/OFF/RES)
DESCRIPTION:
Shut Off/Petcock has 3 modes of operation, On/Off & Reserve. Check out the SPECS Tab for complete details.
SPECIFICATIONS:
- FILTER TUBE LENGTH (LONG TUBE): 78MM / 3"
- FILTER TUBE LENGTH (SHORT TUBE): 32MM / 1.25"
- BOLT HOLE SPACING: 34 MM
- NECK SPACING: 0MM CLEARANCE
- FUEL LINE SIZE (INNER DIAMETER): 3/16" I.D. (INFLOW)
- FUEL LINE SIZE (INNER DIAMETER): 3/16" I.D. (OUT-FLOW)
- POSITIONS: ON / OFF / RESERVE
- **PLEASE NOTE THIS ITEM WILL NOT FIT THE YAMAHA YSR 2RR-24500-00 MODELS
Compatible with, but not necessarily limited to, engine images below (If applicable):
TECH TIPS:
- Always refer to your original owners/operator manual to confirm compatibility and installation details.
DISTRIBUTOR PART #(S)
BEFORE CALLING OR VISITING YOUR LOCAL DEALER...
Have BOTH the Outside Distributing Part Number and the Distributor Re-Seller Part Number(s) handy when calling your local dealer. Most dealers will require the appropriate distributor part number when you call to order. If a distributor does not list the item you can order online.
USA - DISTRIBUTORS
Distributor |
Part Number |
WESTERN POWERSPORTS (WPS Inc.) |
609-0451 |
TUCKER POWERSPORTS |
178304 |
J&M ATV Supply |
CPC0301 |
CANADIAN - DISTRIBUTORS
Distributor |
Part Number |
GAMMA POWERSPORTS |
62-00502 |
KIMPEX |
217029 |
ROYAL DISTRIBUTING |
C07-040301 |
MOGO UPC-A: 874285000303
