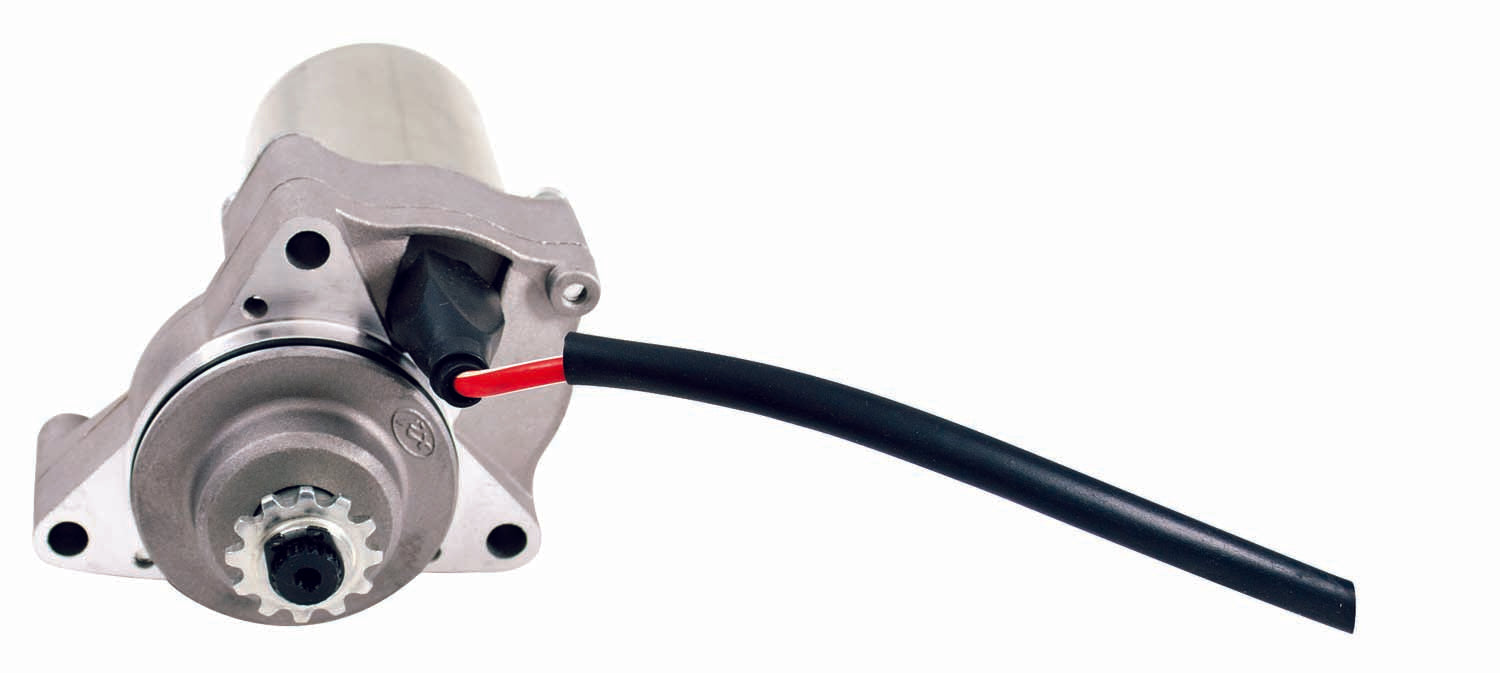

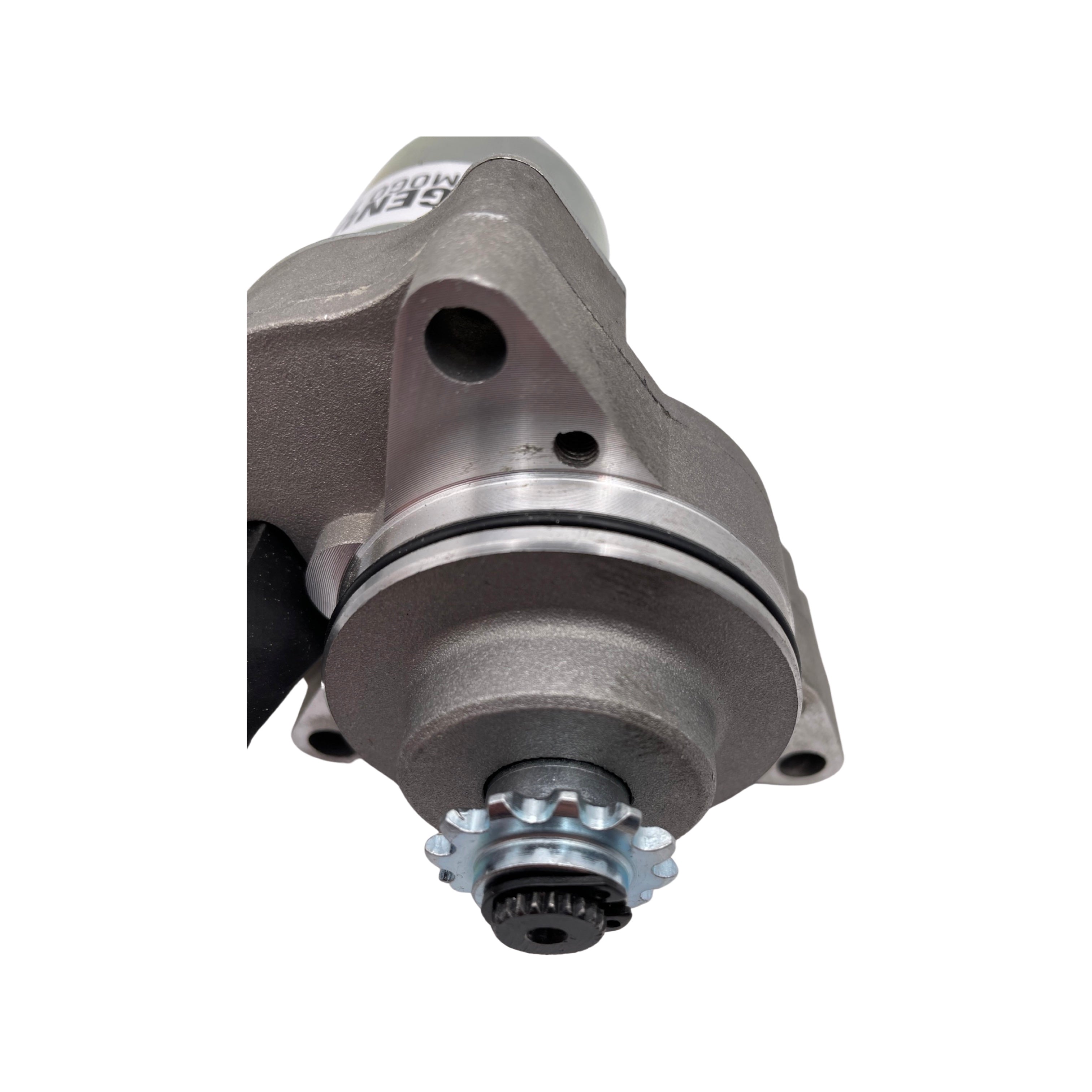

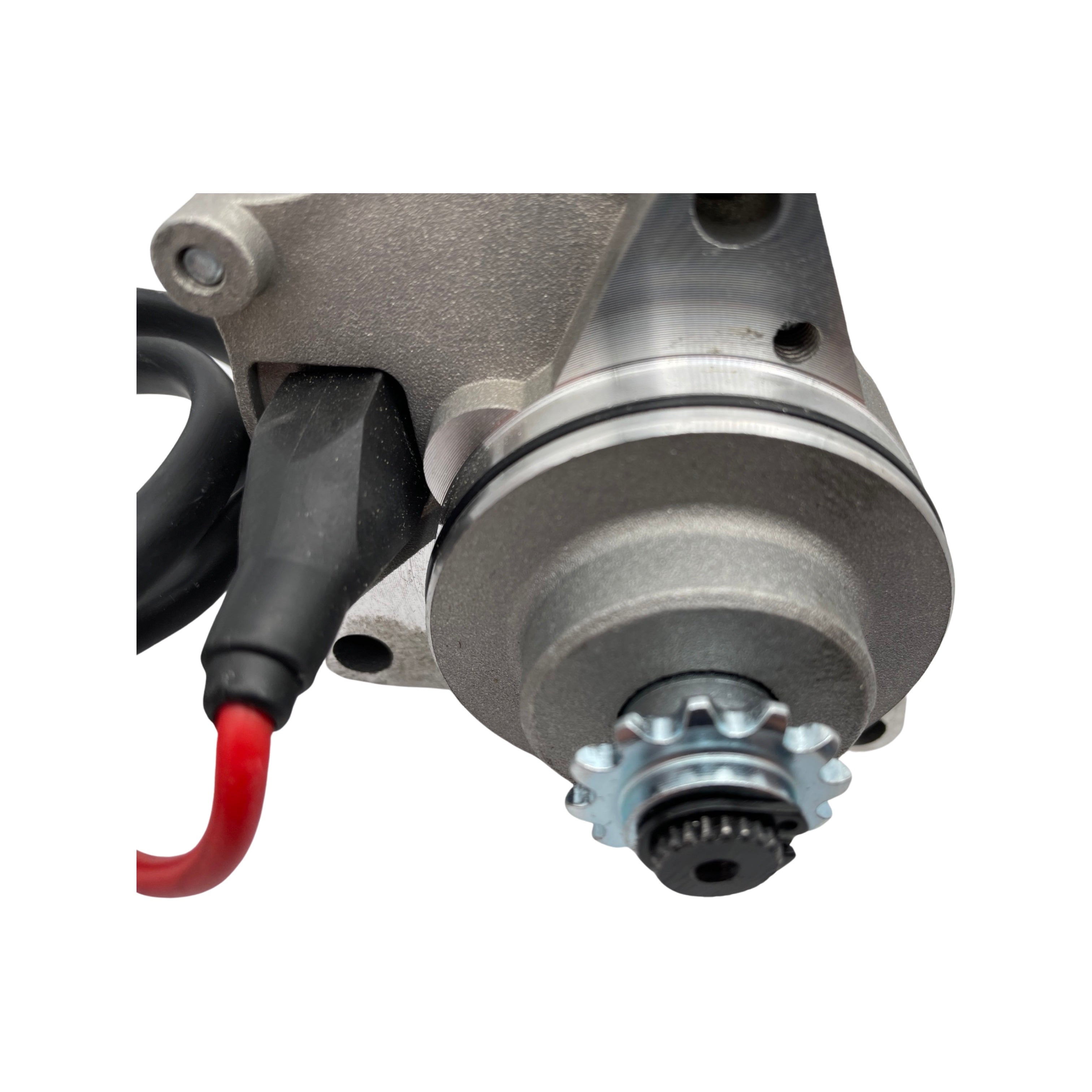

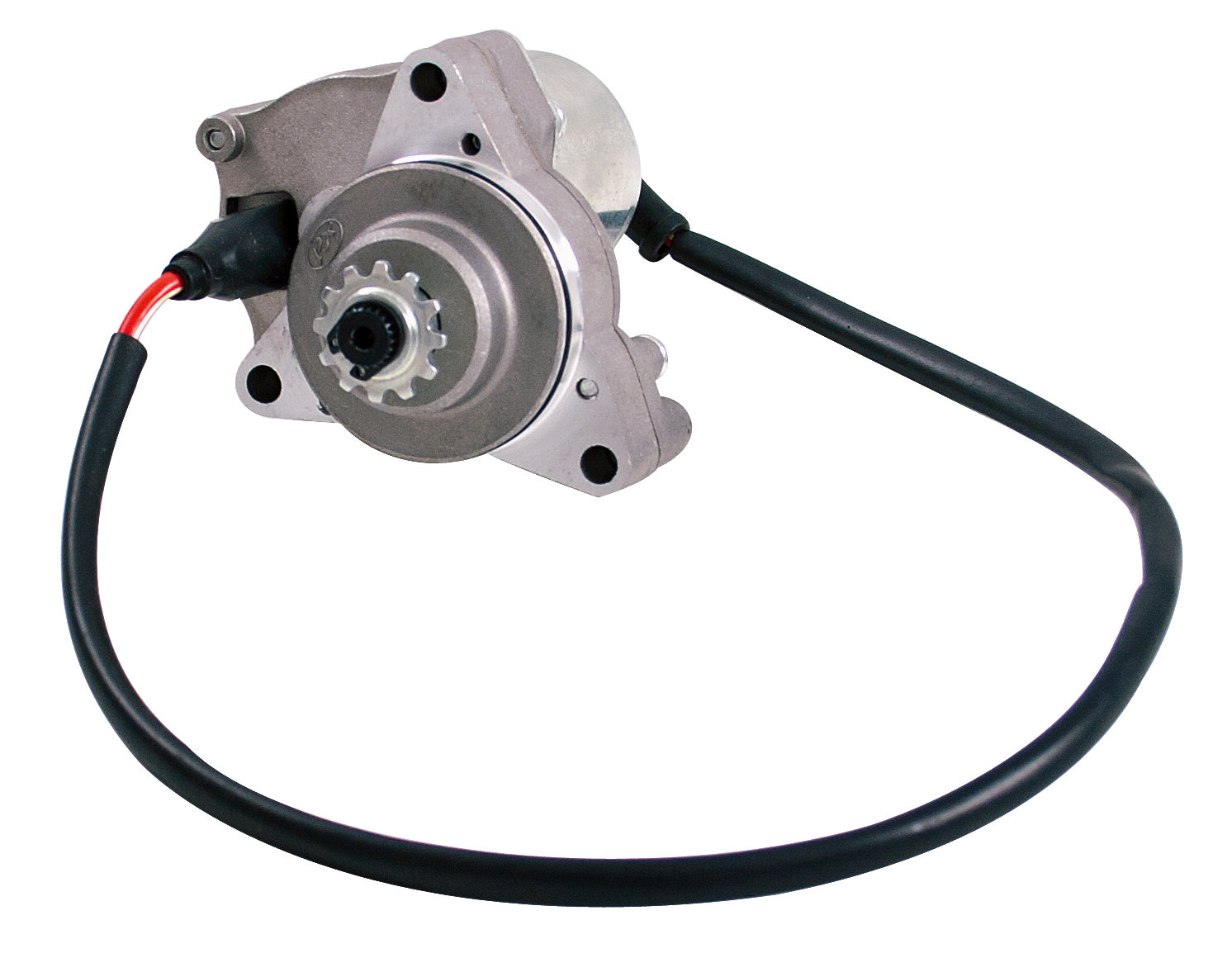

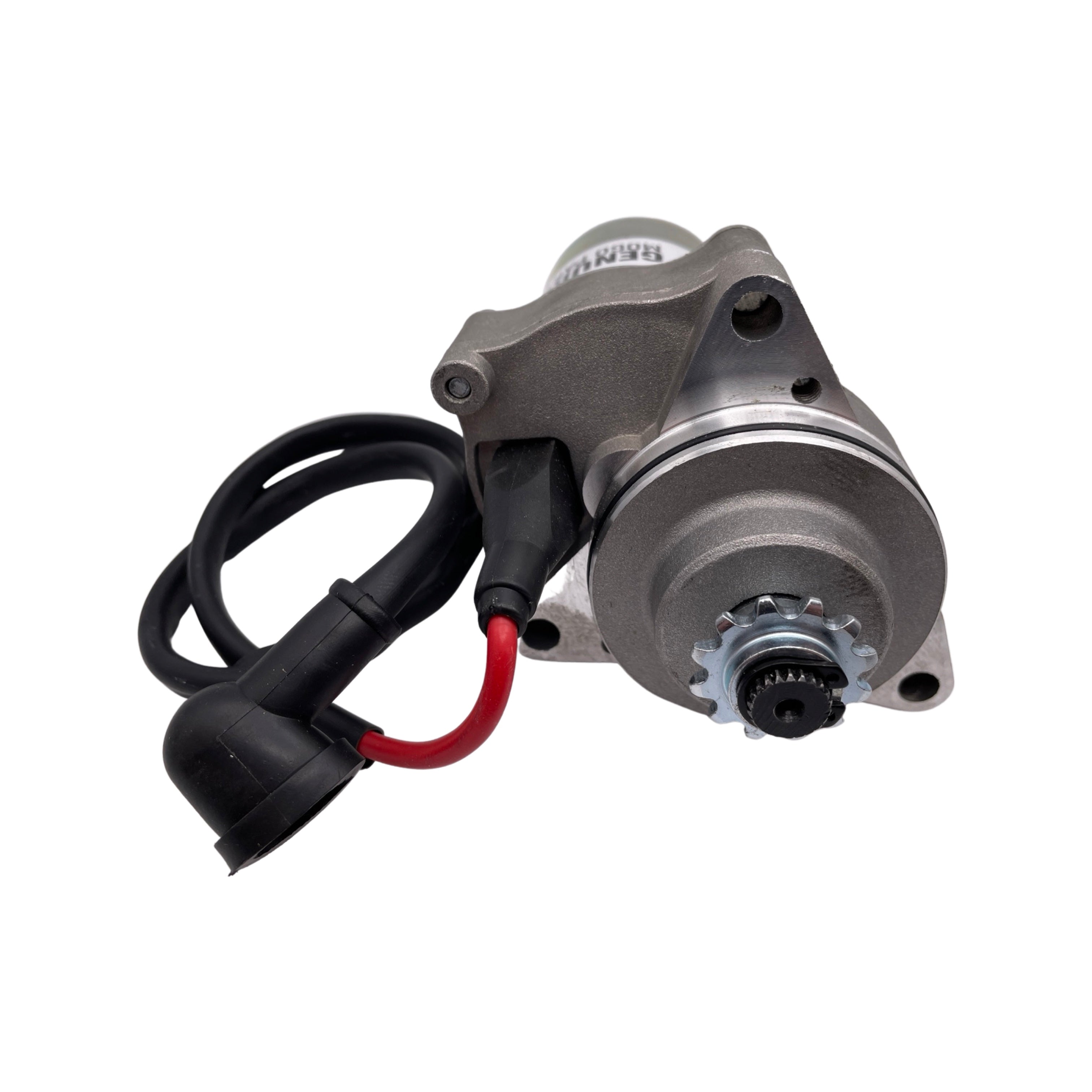

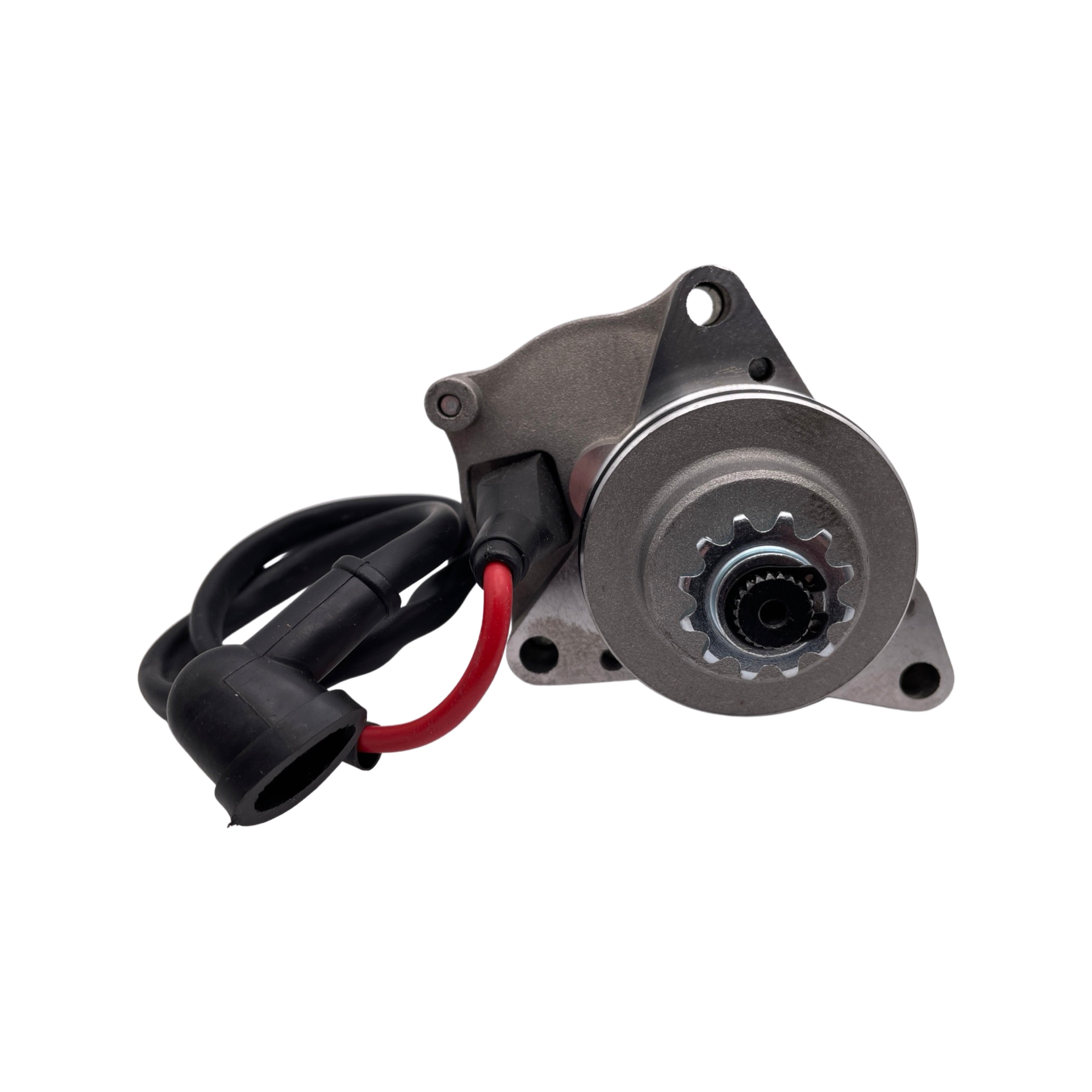

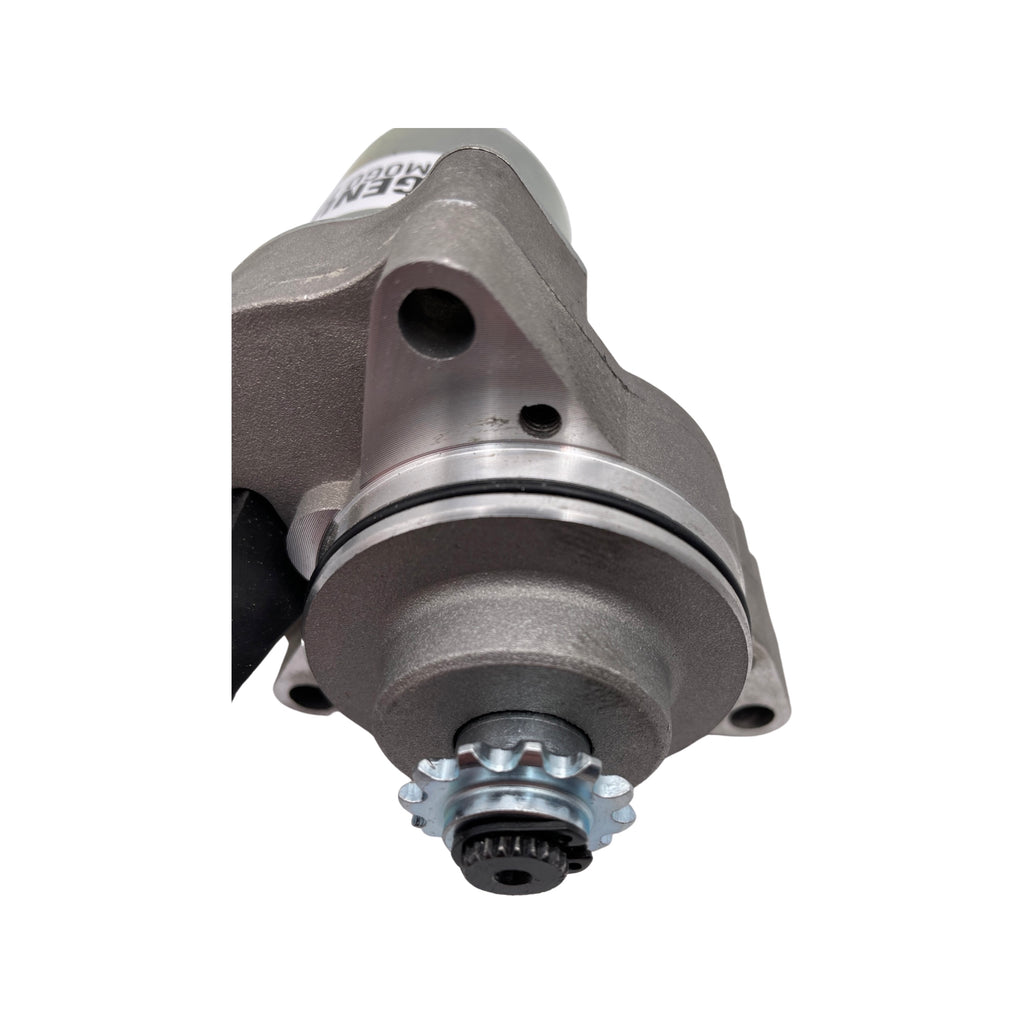

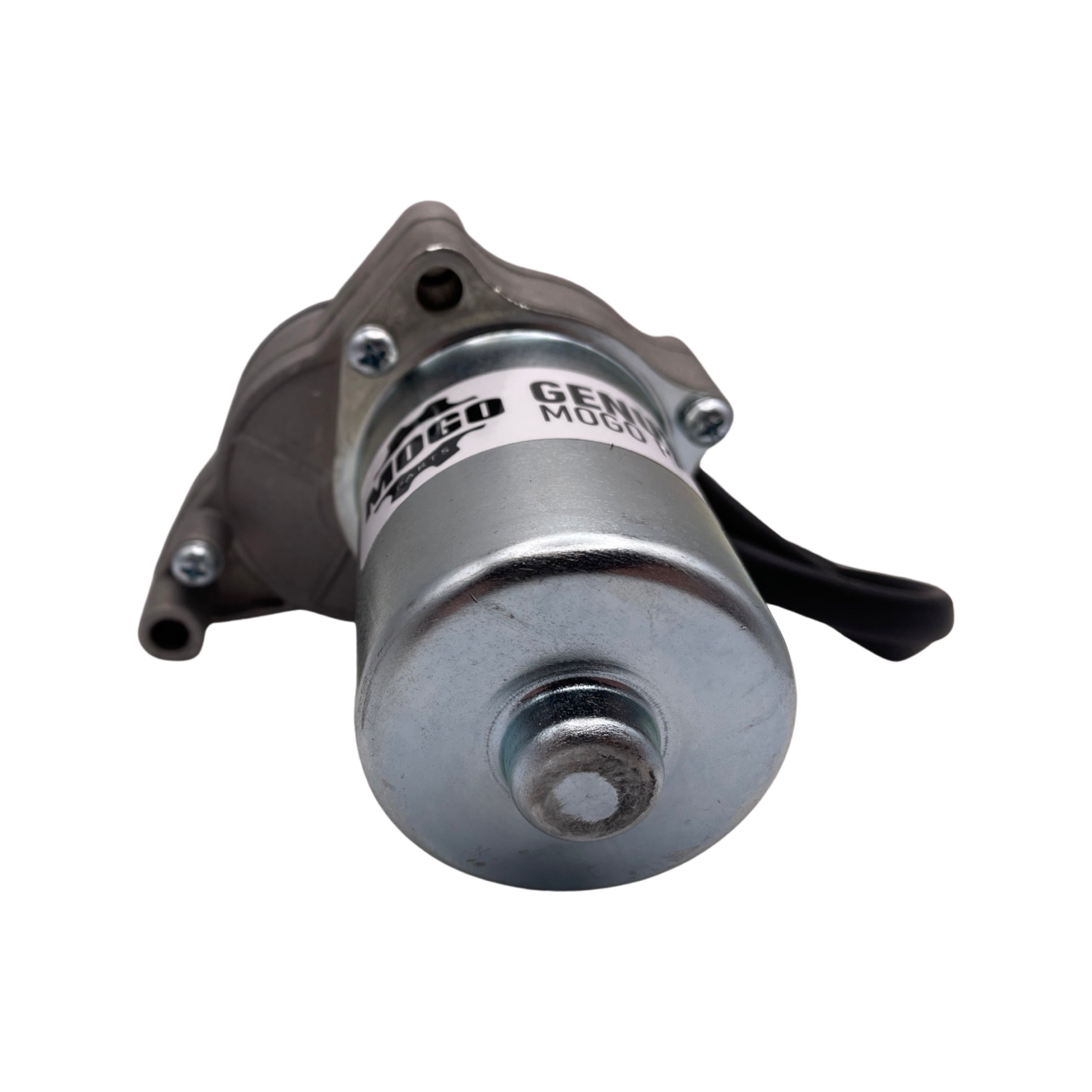

STARTER MOTOR, TOP MOUNTED
DESCRIPTION:
Tired of having starting issues? Replace your starter with this quality starter and see the difference for yourself! Complete replacement starter, bolt it on and ride!
SPECIFICATIONS:
- LENGTH: 5.75" (END TO END, INCLUDING GEAR)
- DIAMETER(S): 2.0" (MAIN CASE DIAMETER)
- SPLINE COUNT: 22
- SPROCKET TEETH: 12
- MOUNTING: 3 BOLT, TOP MOUNTED ABOVE ENGINE
- BOLT HOLE SPACING: 70MM / 78MM
- WIRE: INCLUDED, 15-18" APPROX.
- VOLT TYPE: 12 VOLT.
- ROTATION CONFIGURATION: COUNTER CLOCKWISE
INCLUDES:
NOT INCLUDED:
- MOUNTING BOLTS
- TERMINAL WIRE(S)
FITS ENGINE TYPE(S)
FITS ENGINE SIZE(S)
- 50cc (H), 70cc (H), 90cc (H), 110cc (H), 125cc (H), 140cc (H), 150cc (H)
Compatible with, but not necessarily limited to, engine images below (If applicable):
TECH TIPS:
- PMGR (Permanent-Magnet Gear Reduction)
- GROUND: NEGATIVE
- Always refer to your original owners/operator manual to confirm compatibility and installation details.
DISTRIBUTOR PART #(S)
BEFORE CALLING OR VISITING YOUR LOCAL DEALER...
Have BOTH the Outside Distributing Part Number and the Distributor Re-Seller Part Number(s) handy when calling your local dealer. Most dealers will require the appropriate distributor part number when you call to order. If a distributor does not list the item you can order online.
USA - DISTRIBUTORS
Distributor |
Part Number |
WESTERN POWERSPORTS (WPS Inc.) |
609-1800 |
TUCKER POWERSPORTS |
178335 |
J&M ATV Supply |
CST0100 |
CANADIAN - DISTRIBUTORS
Distributor |
Part Number |
GAMMA POWERSPORTS |
74-00500 |
KIMPEX |
217078 |
ROYAL DISTRIBUTING |
C01-070100 |
MOGO UPC-A: 874285000877
