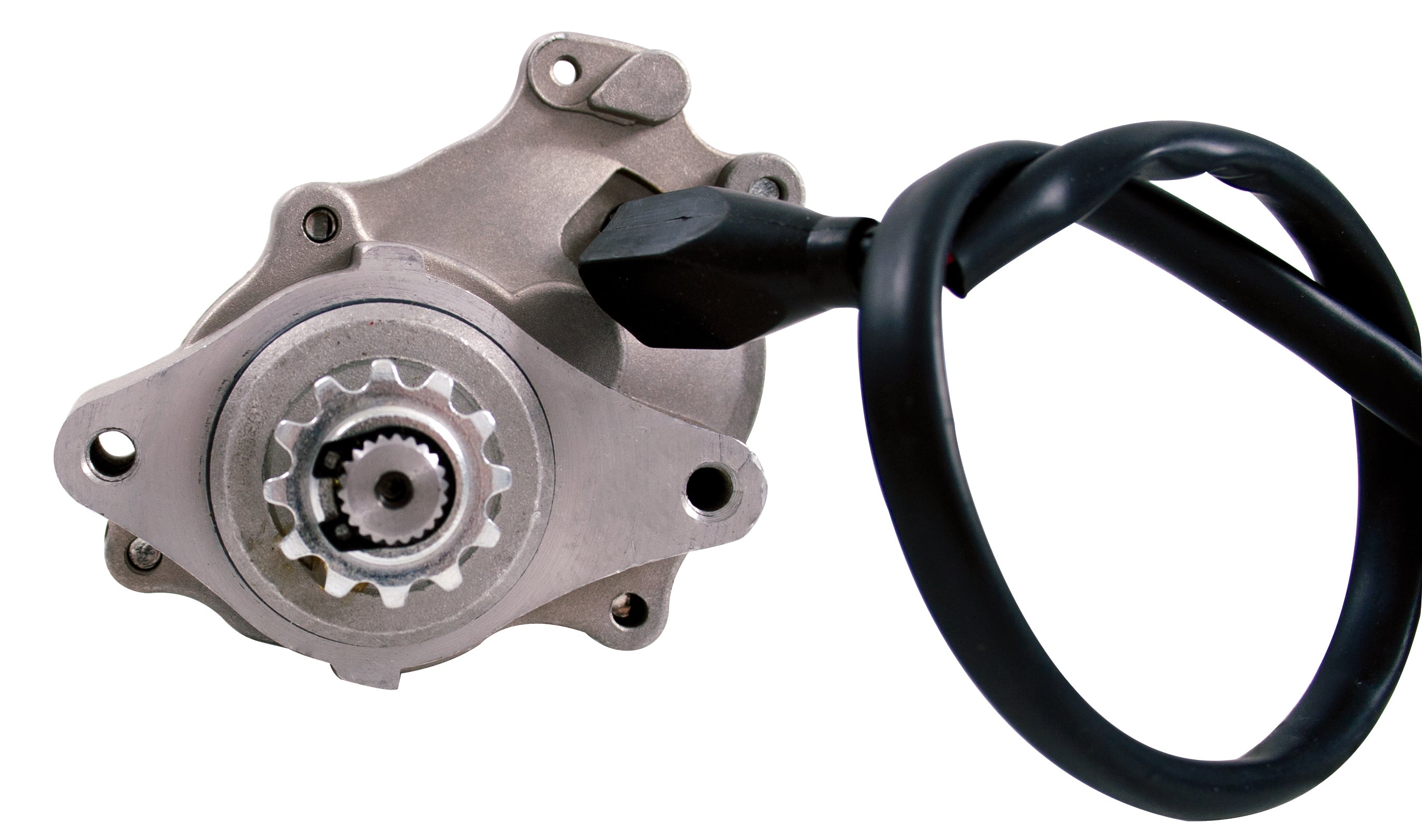

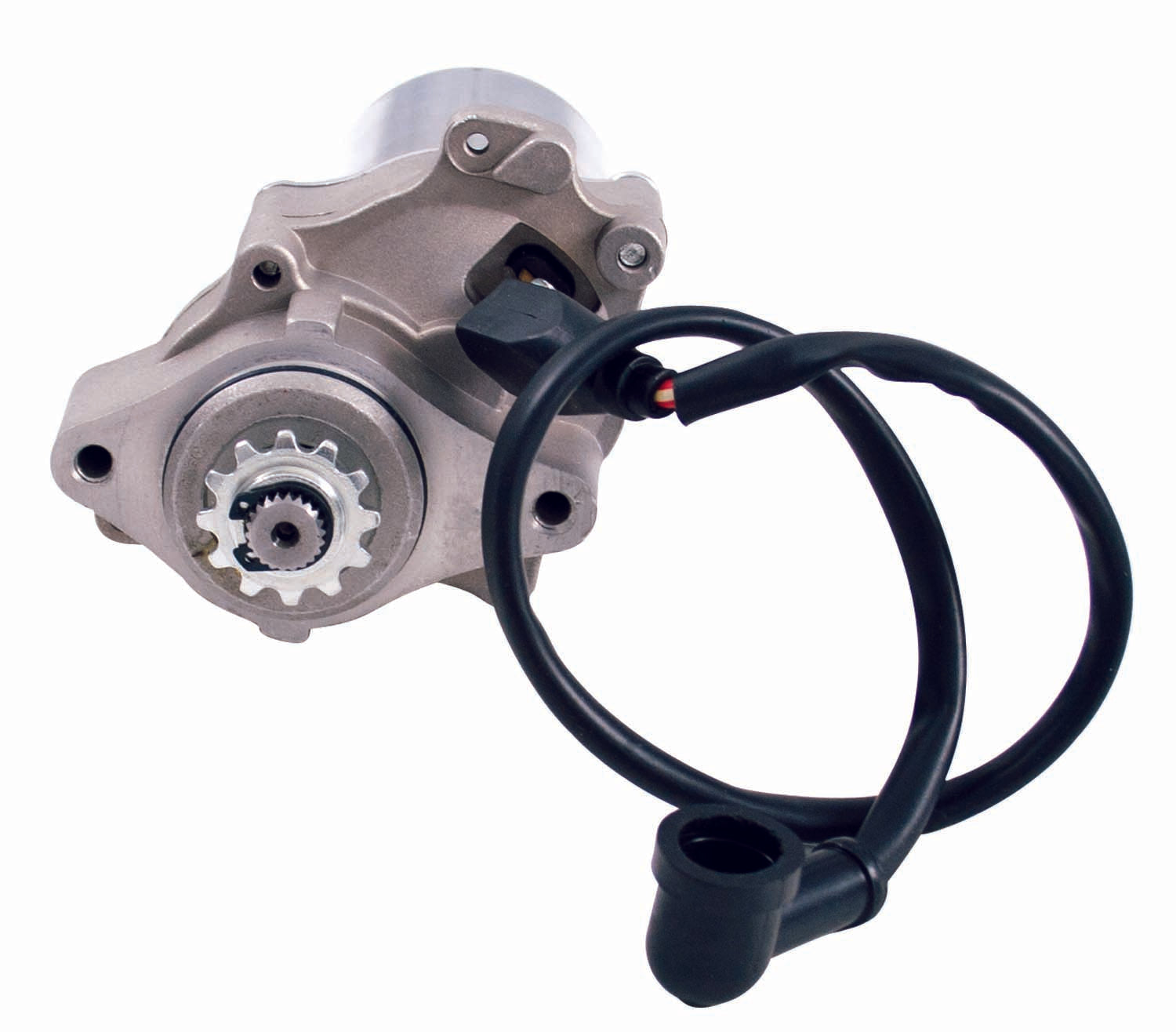

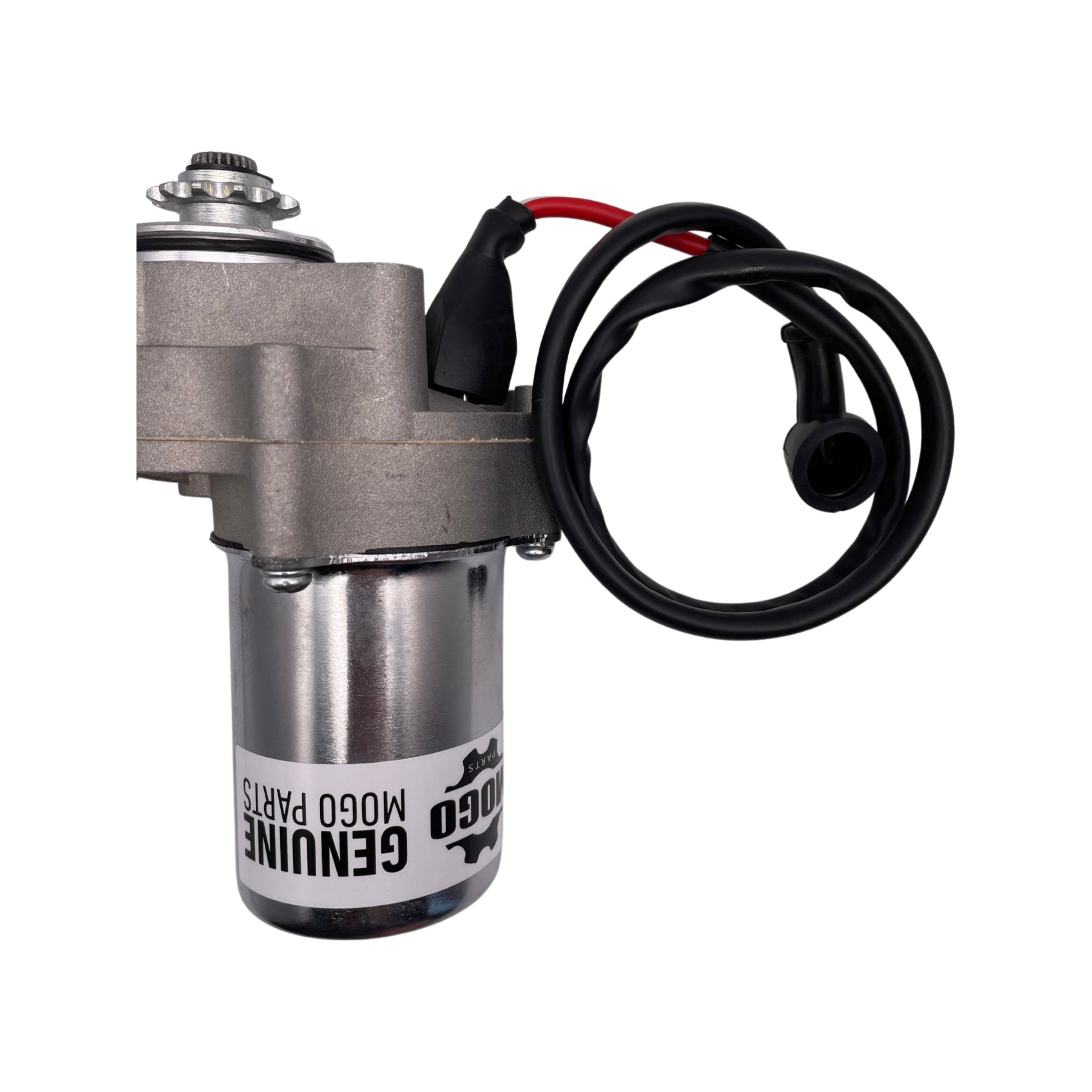

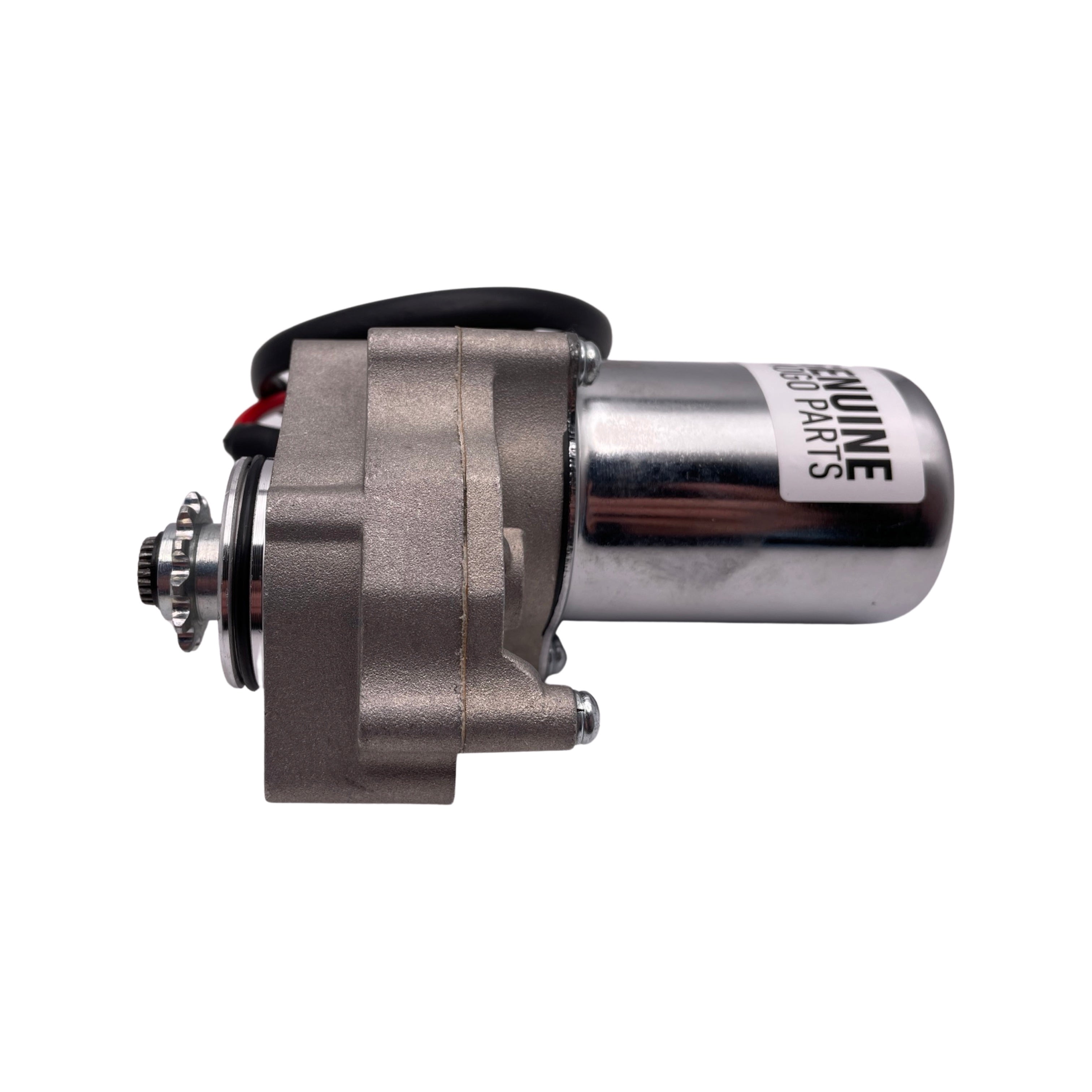

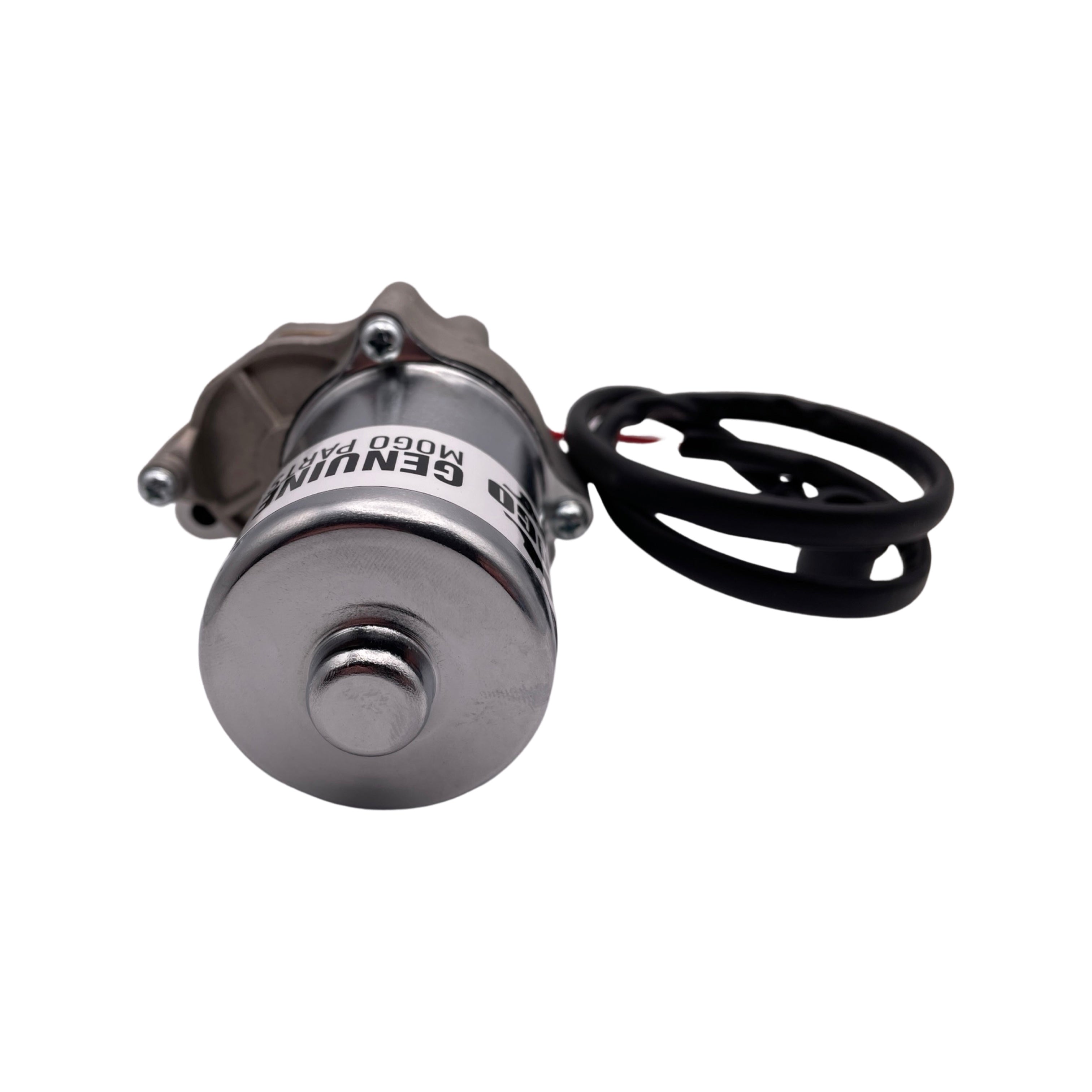

STARTER MOTOR, BOTTOM MOUNTED

STARTER MOTOR, BOTTOM MOUNTED

DESCRIPTION:

Tired of having starting issues? Replace your starter with this quality starter and see the difference for yourself! Complete replacement starter, bolt it on and ride! Check out the SPECS tab for complete details. Fits most 4-Stroke Horizontal Engines 50-125cc with Under the Engine "Lower" Mounted Starters. Note: If starter is mounted above the engine use part # 07-0100. Sold as a complete assembly, may look different if only the starter casing is removed.

SPECIFICATIONS:

• LENGTH: 5.75" (END-END)
• DIAMETER(S): 2.0" (MAIN CASE DIAMETER)
• SPLINE/SPROCKET TEETH: 22 / 12
• MOUNTING METHOD/TYPE: MOUNTS BELOW ENGINE
• BOLT HOLE SPACING (BHS) 68MM / 2.75"
• VOLT TYPE: 12 VOLT.
• ROTATION CONFIGURATION: COUNTER CLOCKWISE
• WIRE: INCLUDED, 16-20" APPROX.
• SOLD AS A COMPLETE ASSEMBLY, MAY LOOK DIFFERENT IF STARTER CASING IS REMOVED SEPARATE. THIS PART IS DESIGNED FOR EASY INSTALLATION.

FITS ENGINE TYPE(S)

• HORIZONTAL STYLE

FITS ENGINE SIZE(S)

• 50cc (H), 70cc (H), 90cc (H), 110cc (H), 125cc (H), 140cc (H), 150cc (H)

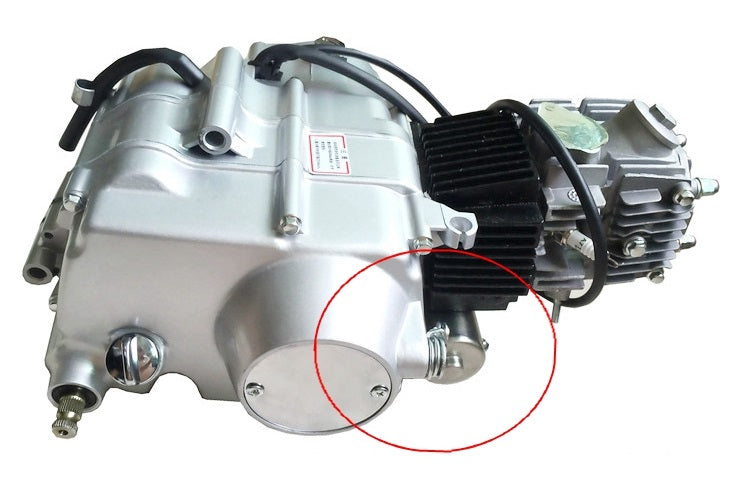

Compatible with, but not necessarily limited to, engine images below (If applicable):

TECH TIPS:

• PMGR (Permanent-Magnet Gear Reduction)
• GROUND: NEGATIVE
• Always refer to your original owners/operator manual to confirm compatibility and installation details.

DISTRIBUTOR PART #(S)
