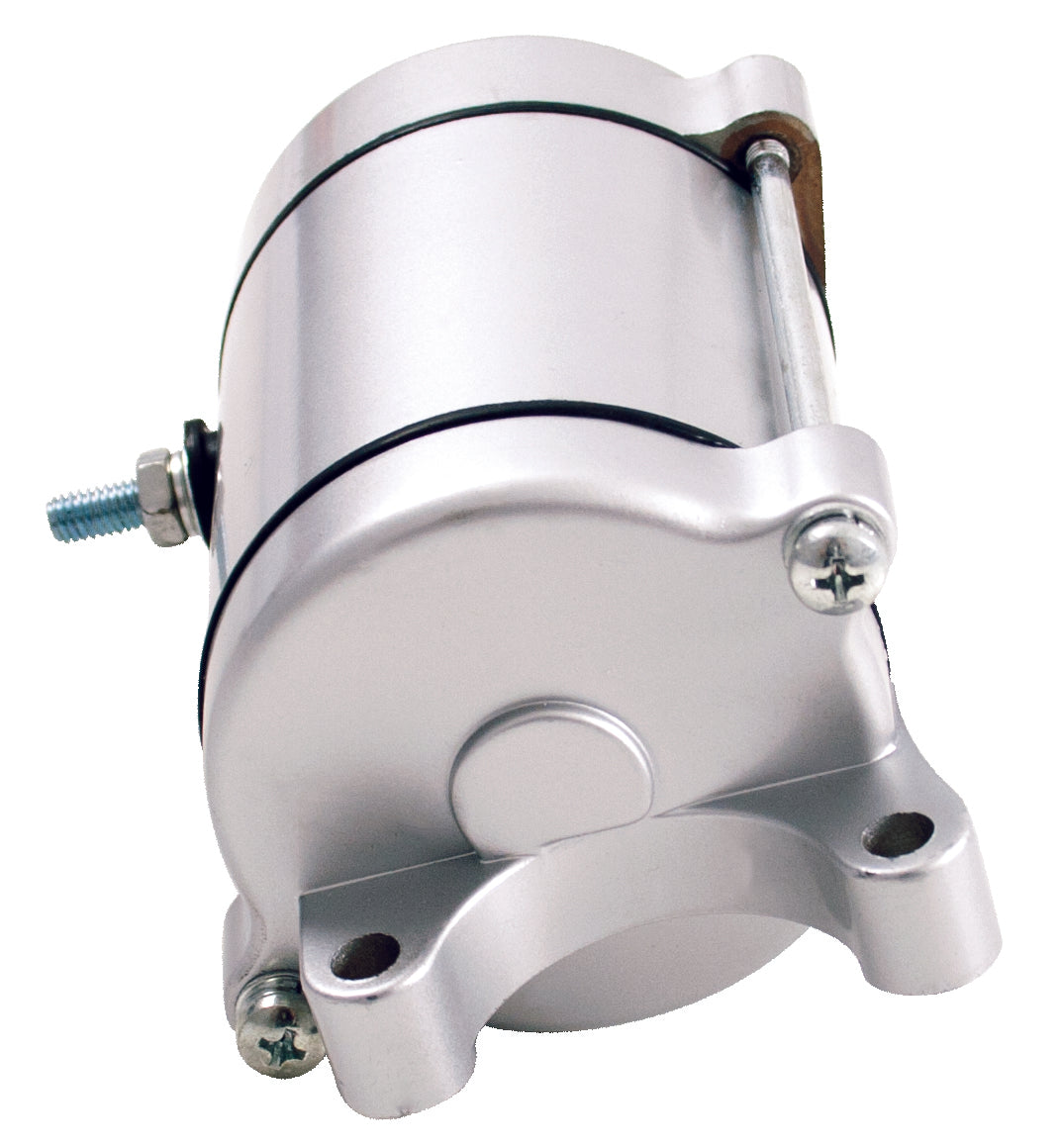

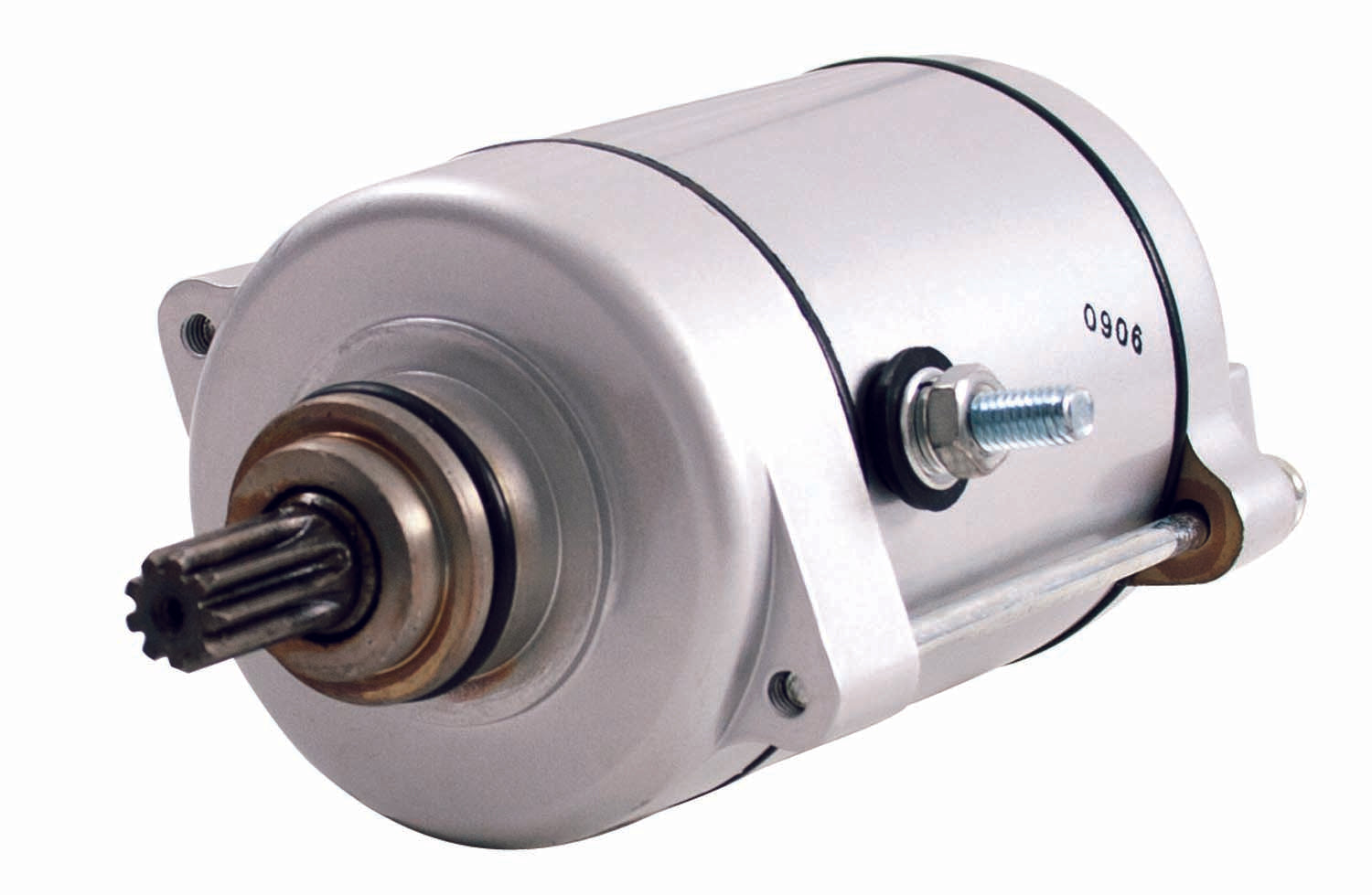

STARTER MOTOR, 9-TOOTH. VERT.

STARTER MOTOR, 9-TOOTH. VERT.

DESCRIPTION:

9-Teeth Starter Motor for CG125cc-250cc Air-Cooled ATV, Go Kart & Dirt Bike. The item fits for CG125cc-250cc Air-Cooled Engine.

SPECIFICATIONS:

• LENGTH: 6.5" (END-END, INCLUDING MOUNTING BRACKET AND SPLINE SHAFT)
• LENGTH #2: 4.0" MAIN CASE LENGTH
• DIAMETER(S): 2.6" (MAIN CASE DIAMETER)
• MOUNTING: 2 BOLT
• BOLT HOLE SPACING (BHS) 53MM / 2.0"
• TERMINAL CONNECTION: SINGLE POST, WIRE NOT INCLUDED.
• SPLINE COUNT: 9
• SPLINE LENGTH: 24MM
• ROTATION: CLOCKWISE

NOT INCLUDED:

• MOUNTING BOLT(S)
• TERMINAL WIRE(S)

FITS ENGINE TYPE(S)

• VERTICAL

FITS ENGINE SIZE(S)

• 125cc (Vertical), 150cc (Vertical), 200cc (Vertical), 250cc (Vertical)

Compatible with, but not necessarily limited to, engine images below (If applicable):

TECH TIPS:

• GROUND: NEGATIVE
• Always refer to your original owners/operator manual to confirm compatibility and installation details.
