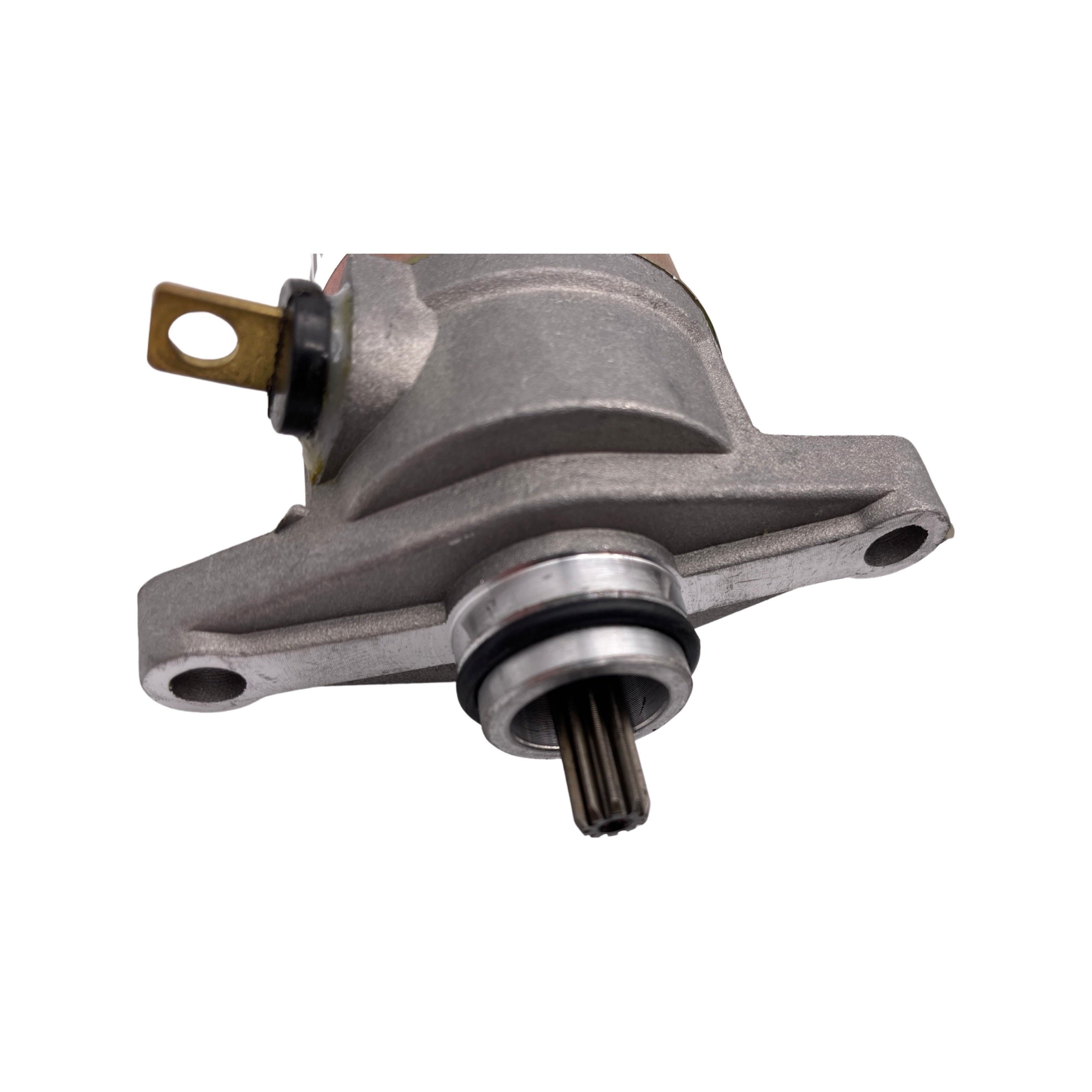

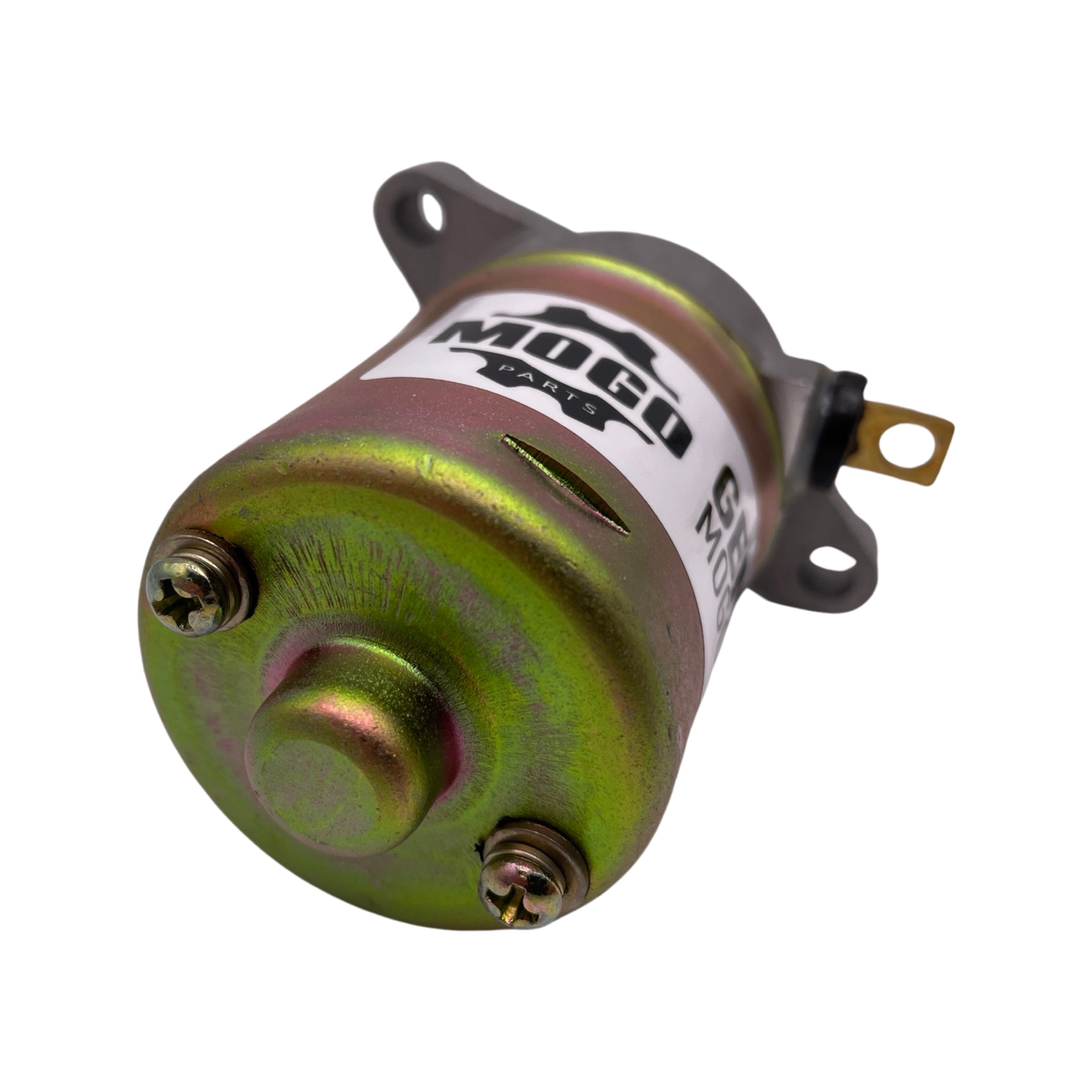

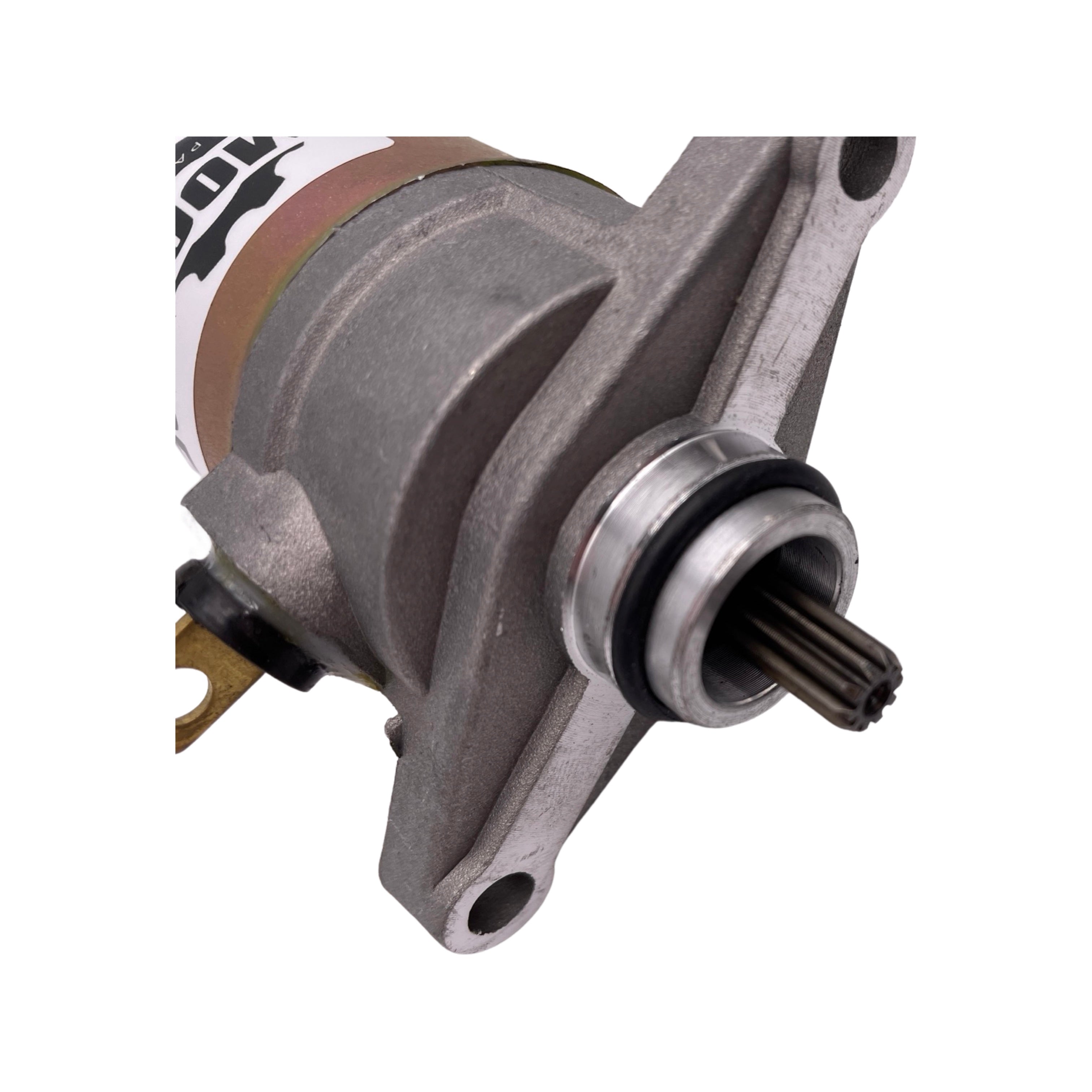

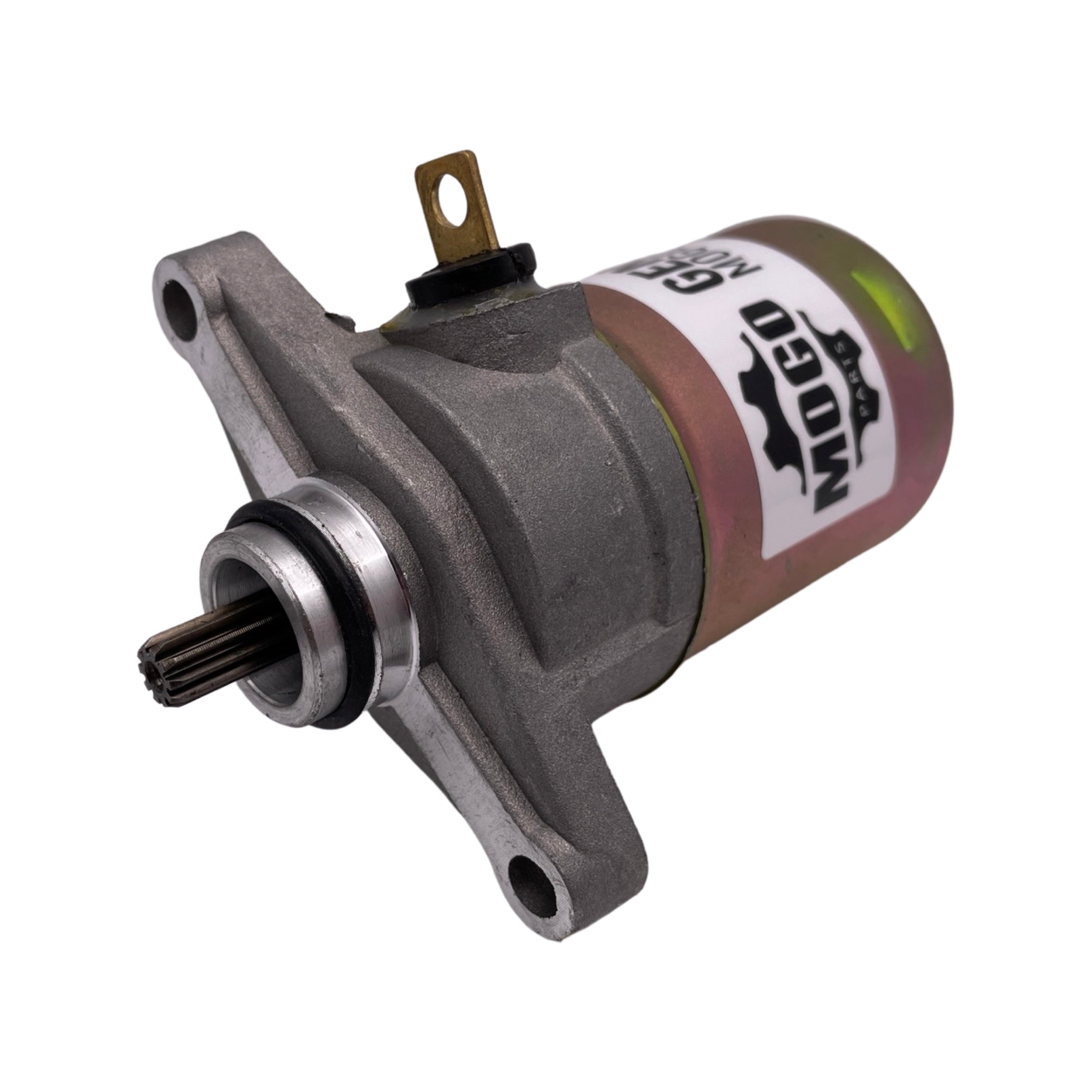

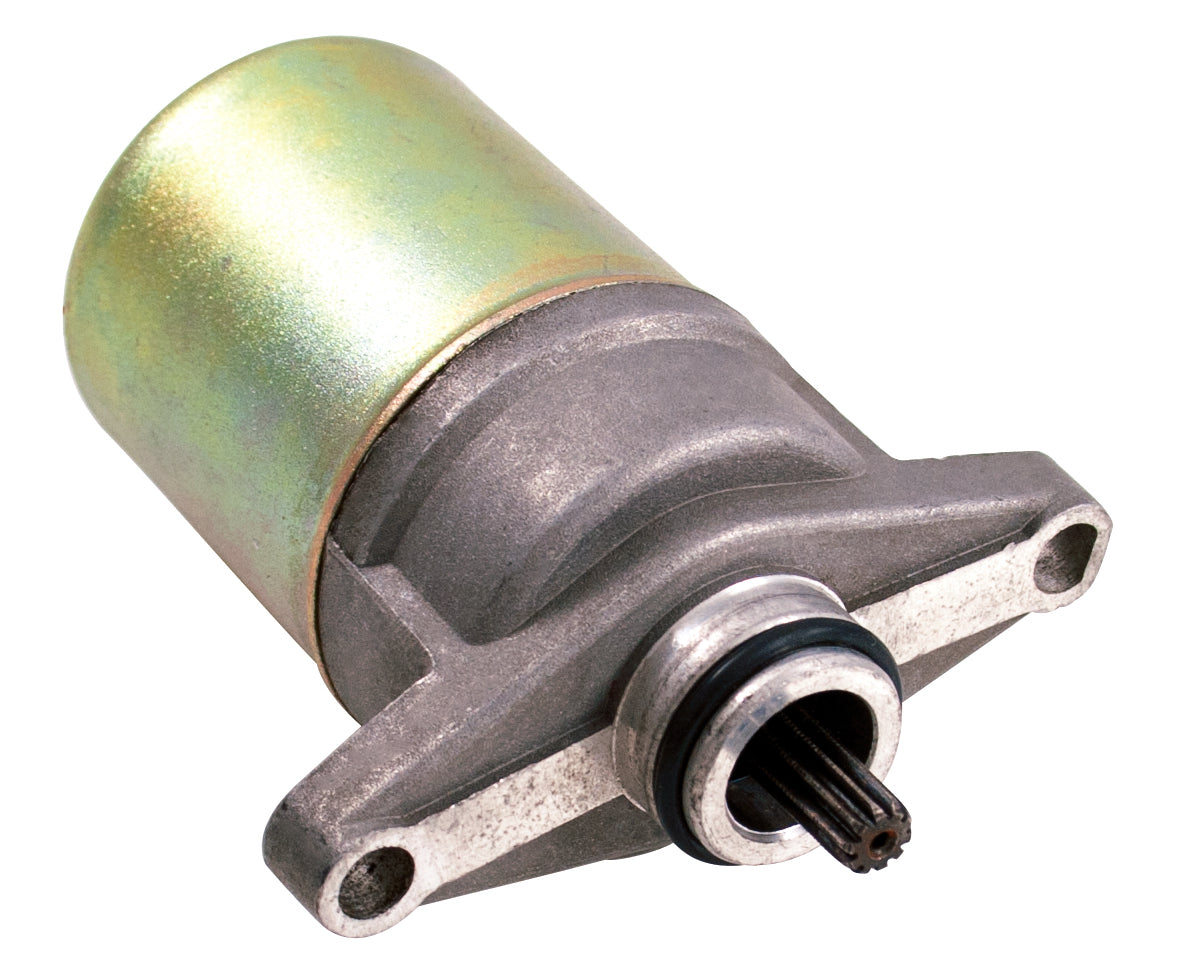

STARTER MOTOR, GY6 50cc (10-SPLINE)

STARTER MOTOR, GY6 50cc (10-SPLINE)

DESCRIPTION:

Starter Motor for 50cc Moped Scooter & GY6 Style Engines.

SPECIFICATIONS:

• LENGTH: 110MM / 4.35" (END TO END, INCLUDING SPLINE)
• MAIN CASE LENGTH: 75MM / 3"
• DIAMETER: 47MM / 1.85"
• MOUNTING: 2 BOLT, BOLTS NOT INCLUDED.
• BOLT HOLE SPACING: 72MM / 2.8"
• TERMINAL CONNECTION: SINGLE POST, WIRE NOT INCLUDED.
• SPLINE: 10
• SPLINE LENGTH: 12MM
• VOLT TYPE: 12 VOLT.
• ROTATION: COUNTER CLOCKWISE

NOT INCLUDED:

• MOUNTING BOLT(S)
• TERMINAL WIRE(S)

FITS ENGINE TYPE(S)

• GY6

FITS ENGINE SIZE(S)

• 50cc (GY6)

Compatible with, but not necessarily limited to, engine images below (If applicable):

TECH TIPS:

• GROUND: NEGATIVE
• Always refer to your original owners/operator manual to confirm compatibility and installation details.
