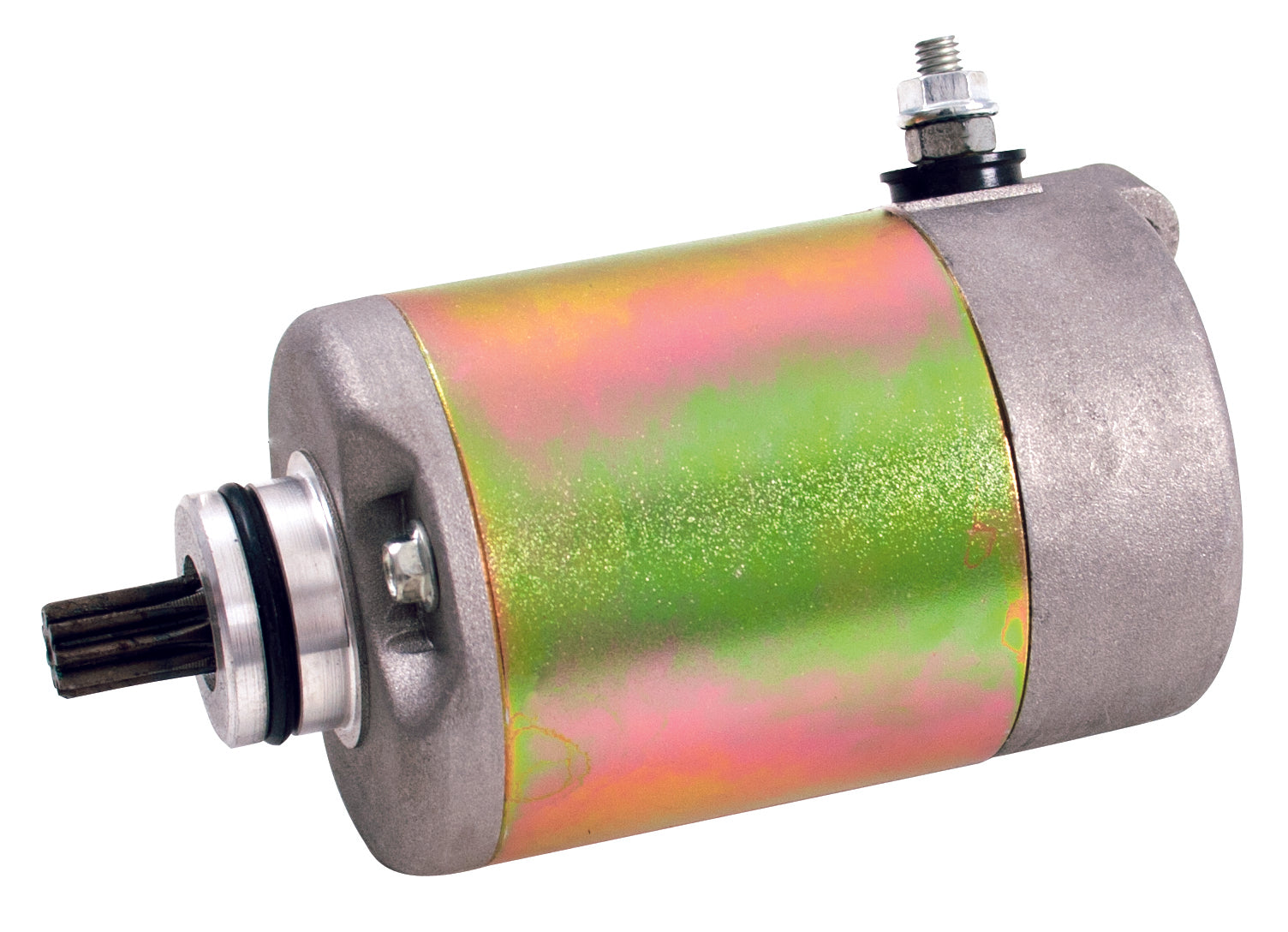

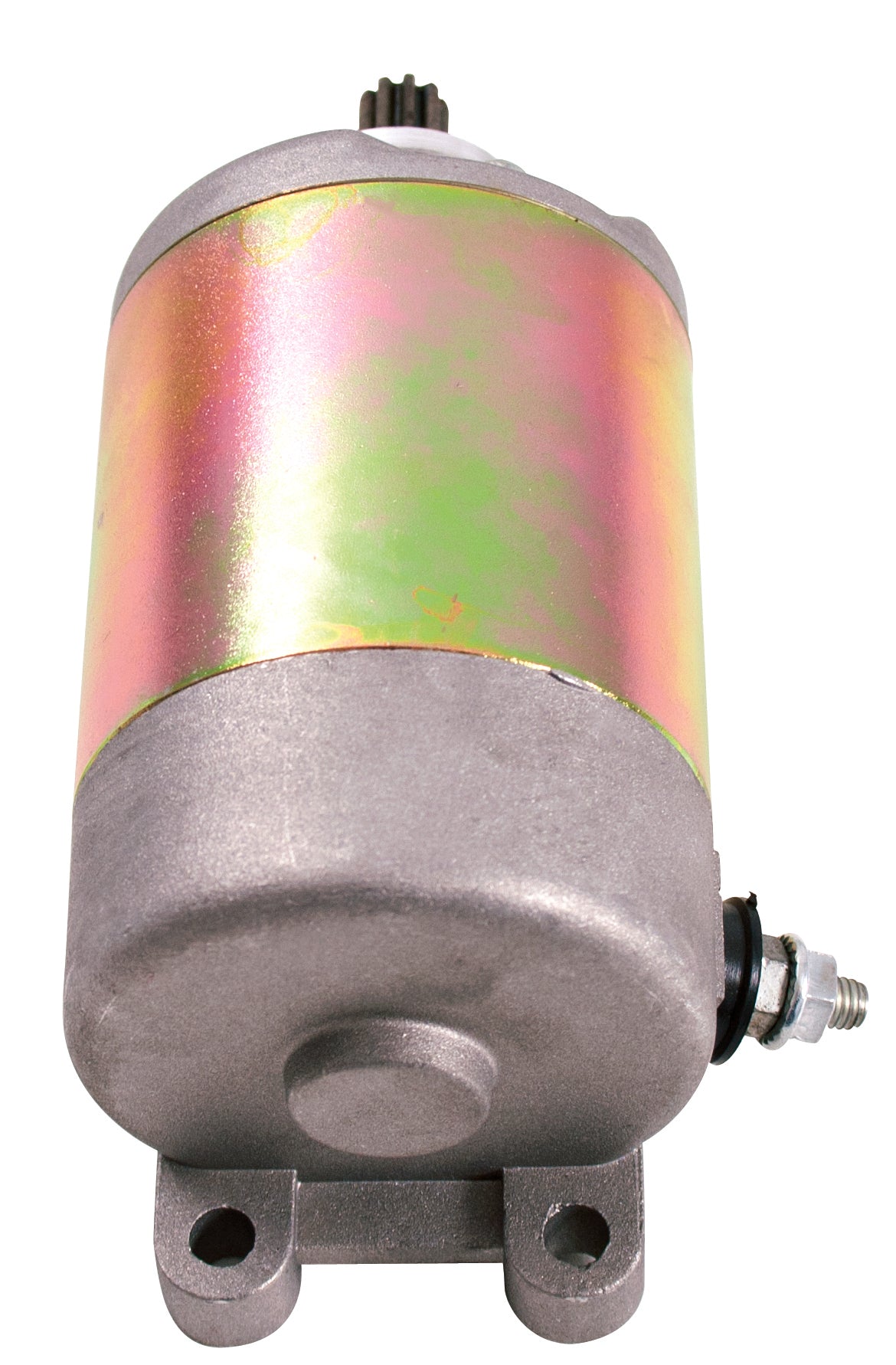

STARTER MOTOR, GY6/CF 250cc (9-SPLINE)

STARTER MOTOR, GY6/CF 250cc (9-SPLINE)

DESCRIPTION:

Starter Motor For GY6/CF250 Engine Scooters, ATVs and Go Karts, 9 Tooth.

SPECIFICATIONS:

• LENGTH: 6.0" (END-END)
• LENGTH #2: 4.0" MAIN CASE LENGTH
• MOUNTING HOLES: 2
• BOLT HOLE SPACING (BHS) 39MM / 1.5"
• DIAMETER: 68MM / 2.65"
• TERMINAL CONNECTION: SINGLE POST
• SPLINE COUNT: 9
• SPLINE LENGTH: 18MM
• WIRE: NOT INCLUDED
• ROTATION: CLOCKWISE

NOT INCLUDED:

• MOUNTING BOLT(S)
• TERMINAL WIRE(S)

FITS ENGINE TYPE(S)

• GY6

FITS ENGINE SIZE(S)

• 250cc (GY6/CF)

Compatible with, but not necessarily limited to, engine images below (If applicable):

TECH TIPS:

• GROUND: NEGATIVE
• Always refer to your original owners/operator manual to confirm compatibility and installation details.
