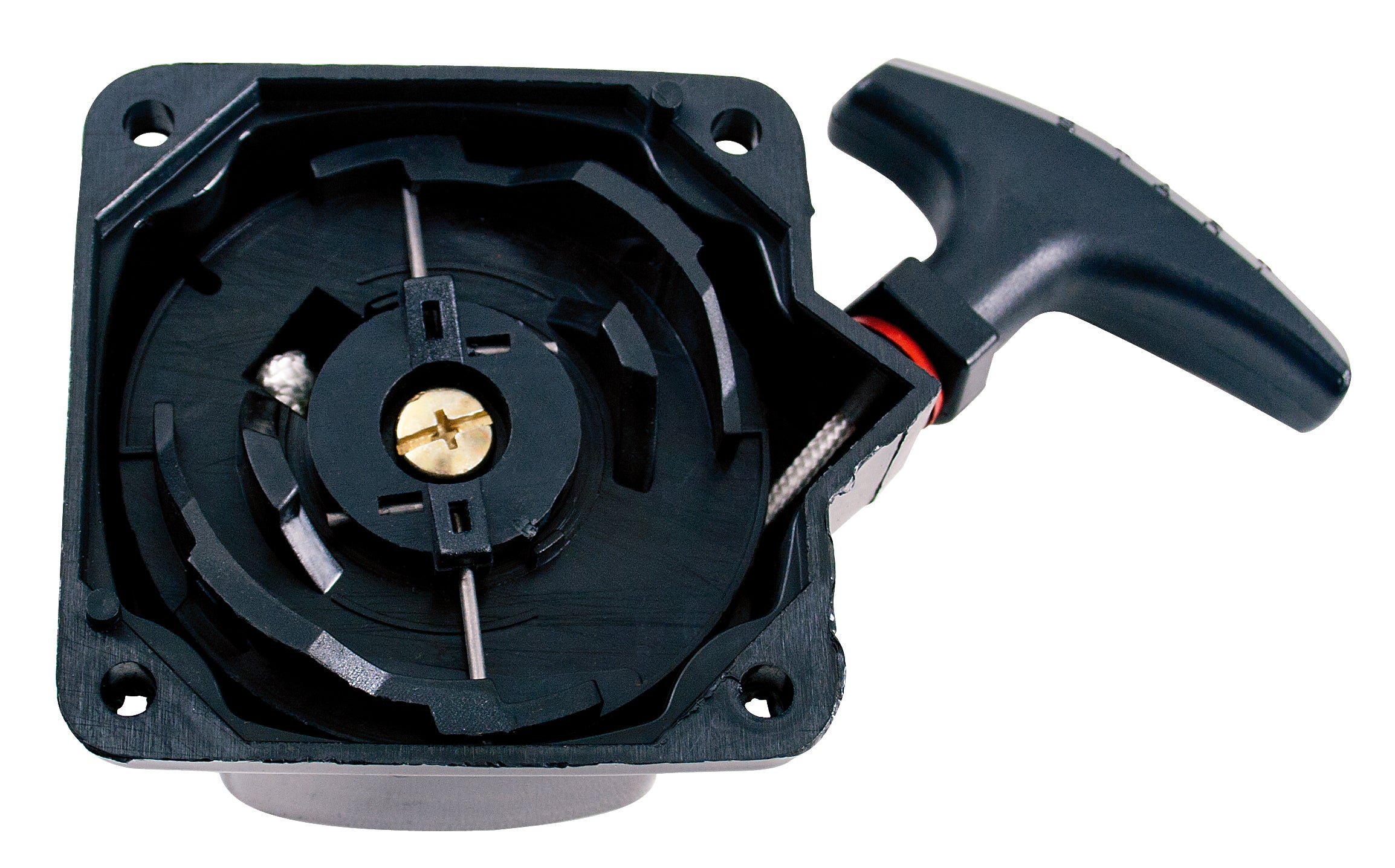

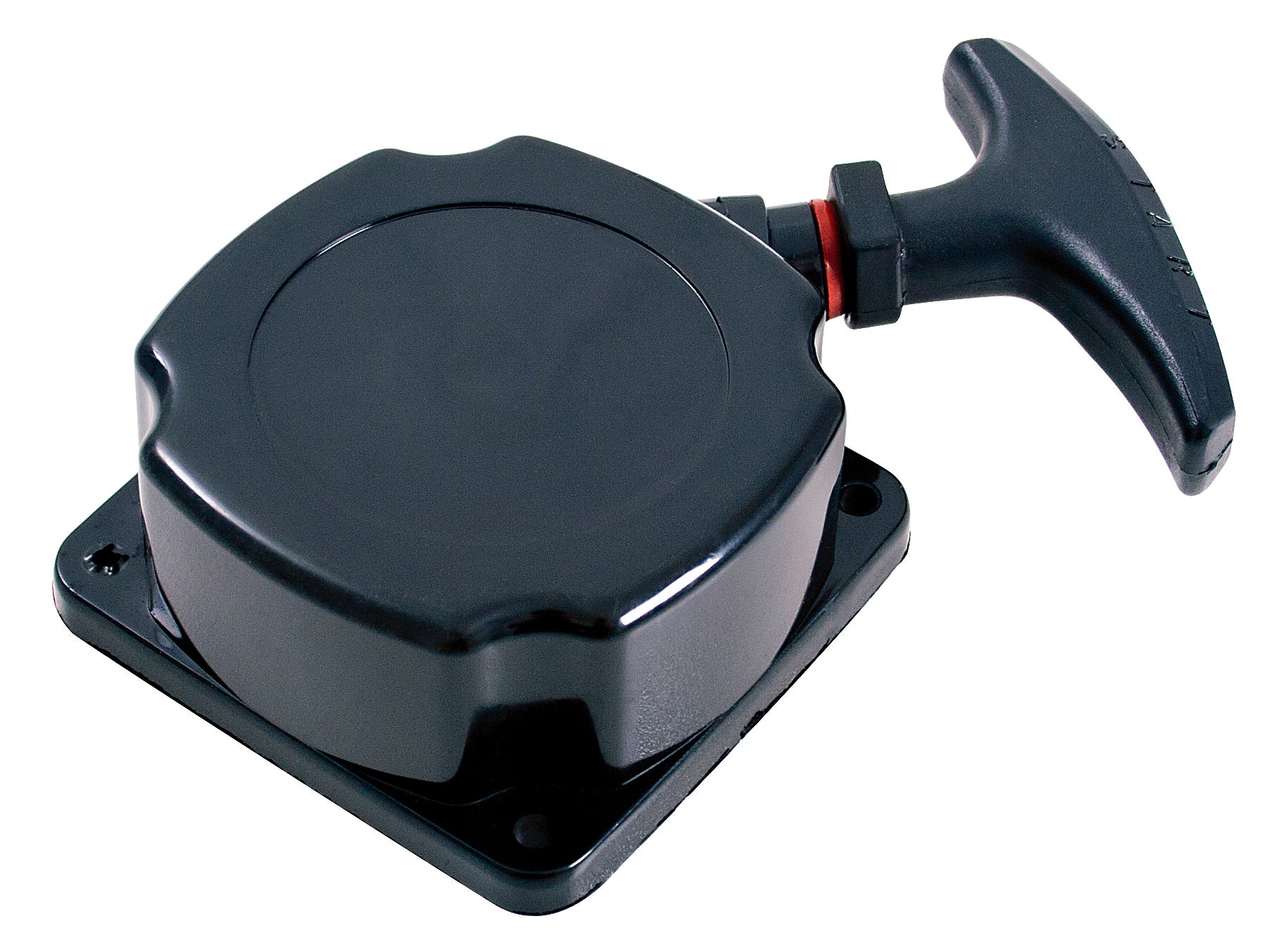

PULL START ASSEMBLY GSMOON 4-BOLT
DESCRIPTION:
Get back riding in just a few minutes with this complete bolt on recoil assembly. Commonly found on 33cc, 36cc, 43cc and 49c engines. Also known as a "GS Moon pullstarter" because it was first introduced on hundreds of thousands of mini-gas scooters and vehicle models produced by the GS-Moon Company, beginning in early 2000. Replace your original recoil with this high quality replacement recoil.
SPECIFICATIONS:
- MATERIAL TYPE: PLASTIC
- LENGTH: 3.25"
- WIDTH: 3.25"
- HEIGHT: 1.4"
- MOUNTING HOLES: 4 BOLT (M6)
- BOLT HOLE SPACING (BHS) 95MM/3.7" (DIAGONAL); 67MM/2.6" (SAME SIDE)
- TOOTH COUNT (1): COGS/TEETH: 2-TOOTH COG
- NOTES: BEFORE ORDERING INSPECT PICTURES TO CONFIRM STARTER CLAW/COG TEETH ARE SAME PATTERN AS OLD PART.
FITS ENGINE TYPE(S)
- POCKET 2-STROKE UNIT
- X-STYLE
FITS ENGINE SIZE(S)
- 22cc (X-Style), 26cc (X-Style), 33cc (X-Style), 36cc (X-Style), 43cc (X-Style), 49cc (X-Style)
Compatible with, but not necessarily limited to, engine images below (If applicable):
TECH TIPS:
- Always refer to your original owners/operator manual to confirm compatibility and installation details.
DISTRIBUTOR PART #(S)
BEFORE CALLING OR VISITING YOUR LOCAL DEALER...
Have BOTH the Outside Distributing Part Number and the Distributor Re-Seller Part Number(s) handy when calling your local dealer. Most dealers will require the appropriate distributor part number when you call to order. If a distributor does not list the item you can order online.
USA - DISTRIBUTORS
Distributor |
Part Number |
WESTERN POWERSPORTS (WPS Inc.) |
609-1310 |
TUCKER POWERSPORTS |
178342 |
J&M ATV Supply |
CPS0304 |
CANADIAN - DISTRIBUTORS
Distributor |
Part Number |
GAMMA POWERSPORTS |
74-00552 |
KIMPEX |
217087 |
ROYAL DISTRIBUTING |
C01-070304 |
MOGO UPC-A: 874285000914
