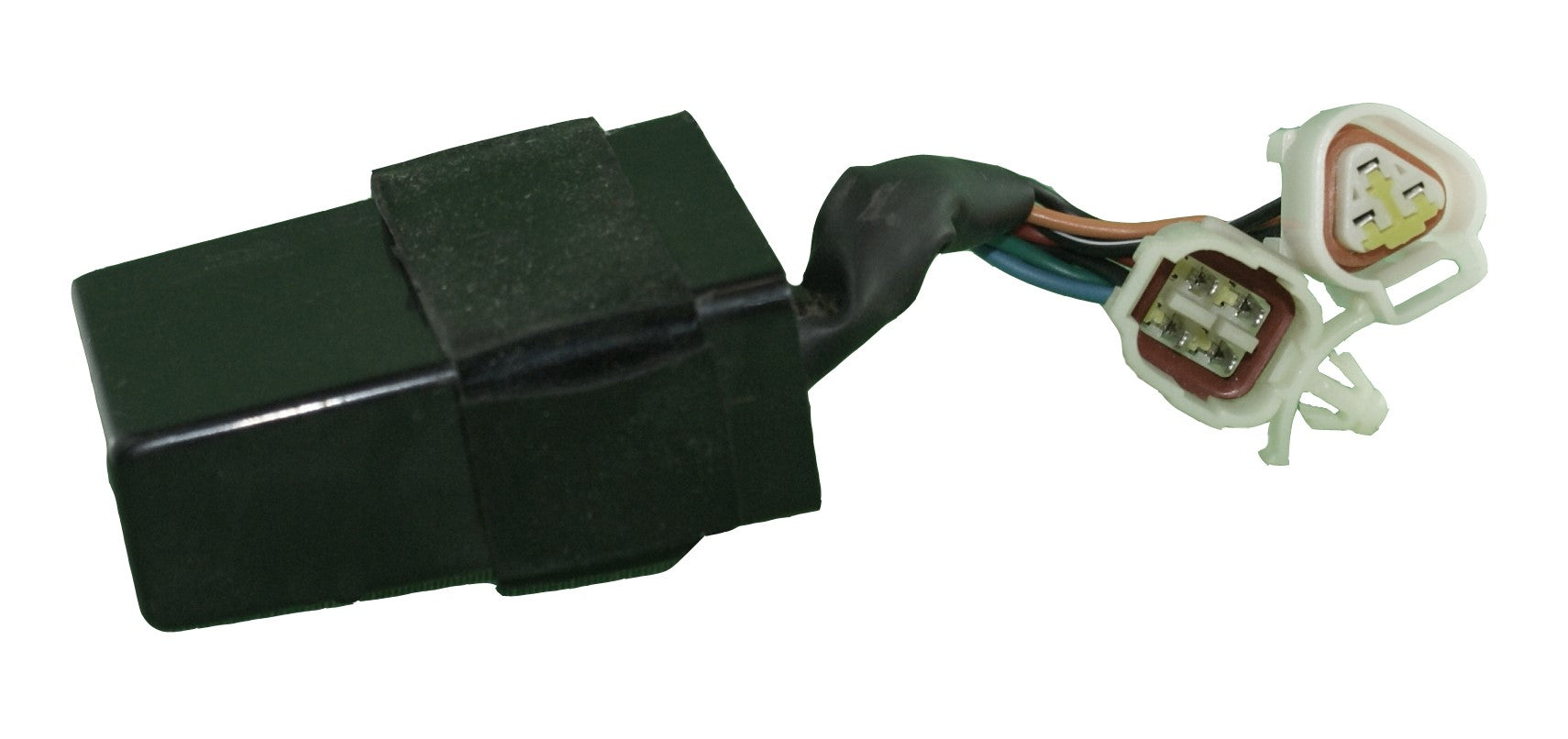

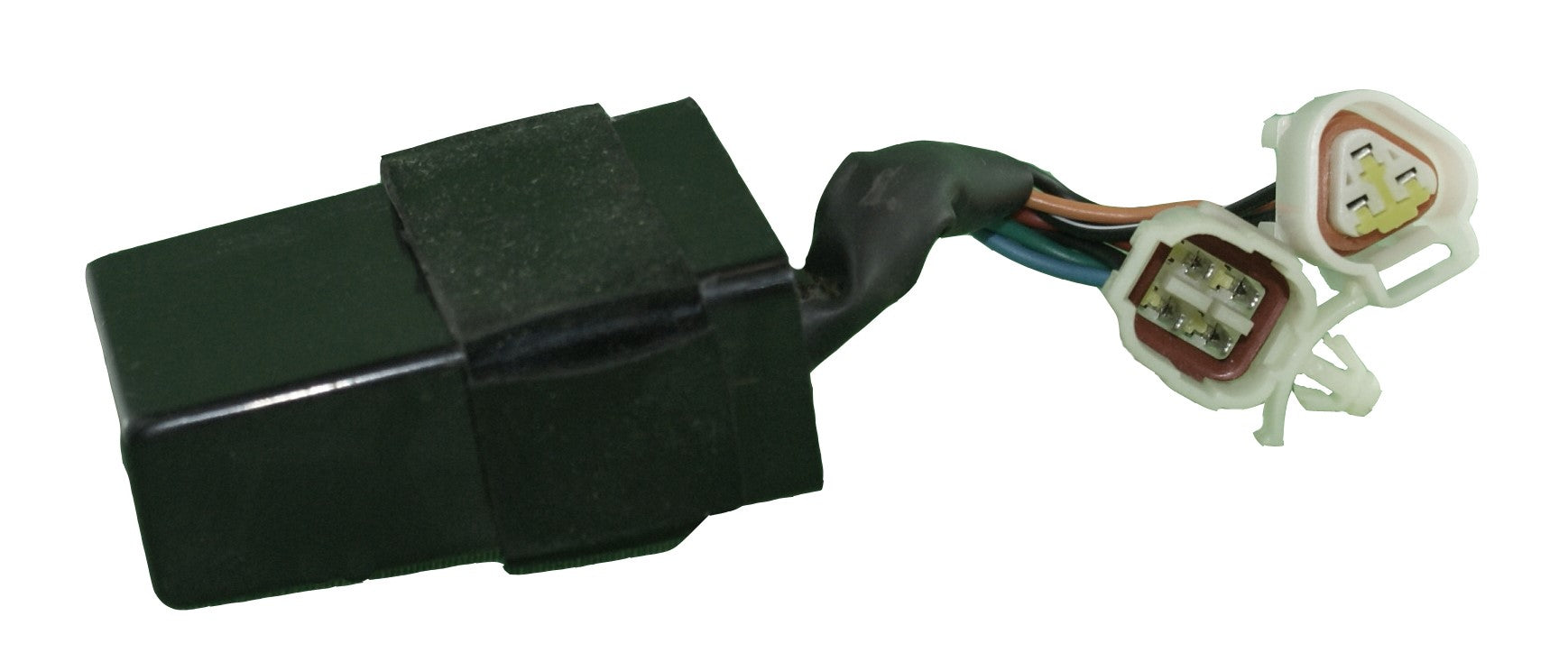

CDI BOX, 229.5-250cc BAJA/JIANSHE (2 PLUG)
DESCRIPTION:
If your unit is not starting, does not produce spark, misfiring and/or running rough it could very well be your CDI box. A typical CDI (Capacitor Discharge Ignition) module consists of a small transformer, a charging circuit, a triggering circuit and a main capacitor. The majority of CDI's supplied on new vehicles and by aftermarket suppliers lack the proper quality internals to ensure your CDI is reliable. Many owners have had to replace CDIs after only a few rides on a brand new unit due to this fact. Our quality internals ensure that when you replace your CDI you will be improving your ride to get the reliability you should have had in the first place. See the SPECS tab for additional details.
SPECIFICATIONS:
- PINS: 7 (SEE CONNECTOR INFO.)
- TYPE: ALTERNATING CURRENT (AC)
- COMPATIBLE WITH: 12v SYSTEMS
- LENGTH: 2.75"
- WIDTH AT BOTTOM END: 1.75"
- WIDTH AT WIRE END: 2" (TAPERED)
- HEIGHT AT WIRE END: 1 1/8"
- CONINTUOUS IGNTION: <250R/MIN
- RANGE: 250R/MIN - 11000R/MIN
- WORKING TEMP RANGE: -30 ~ 60 C
- CONNECTOR TYPE: 2 CONNECTOR VERSION
- CONNECTOR #1: 4 PIN, FEMALE CONNECTOR
- CONNECTOR #2: 3 PIN, TRIANGULAR SHAPE (FEMALE CONNECTOR)
- CAPACITY: 1.5UF
- WIRE LENGTH: 5" * APPROX.
FITS ENGINE TYPE(S)
FITS ENGINE SIZE(S)
- 250cc (Vertical), 300-350cc (Vertical), JS250
Compatible with, but not necessarily limited to, engine images below (If applicable):
![]()
![]()
![](https://cdn.shopify.com/s/files/1/1917/7253/files/vertical_engine.png?v=1613514208)
![]()
![]()
TECH TIPS:
- NOT SURE IF YOU HAVE AN AC OR DC TYPE CDI? CLICK HERE.
- Always refer to your original owners/operator manual to confirm compatibility and installation details.
NOTICES/WARNINGS:
- ****IMPORTANT NOTICE: Before ordering your replacement CDI you MUST make sure you are buying the correct current type (AC vs DC). We offer both Alternating Current (AC) and Direct Current (DC) CDI's, these CDI's are NOT interchangeable.
DISTRIBUTOR PART #(S)
BEFORE CALLING OR VISITING YOUR LOCAL DEALER...
Have BOTH the Outside Distributing Part Number and the Distributor Re-Seller Part Number(s) handy when calling your local dealer. Most dealers will require the appropriate distributor part number when you call to order. If a distributor does not list the item you can order online.
USA - DISTRIBUTORS
Distributor |
Part Number |
WESTERN POWERSPORTS (WPS Inc.) |
609-0930 |
TUCKER POWERSPORTS |
*Not Listed |
J&M ATV Supply |
*Not Listed |
CANADIAN - DISTRIBUTORS
Distributor |
Part Number |
GAMMA POWERSPORTS |
83-00512 |
KIMPEX |
217479 |
ROYAL DISTRIBUTING |
C01-080154 |
MOGO UPC-A: 874285001188
