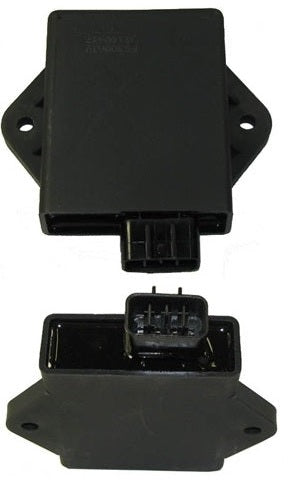

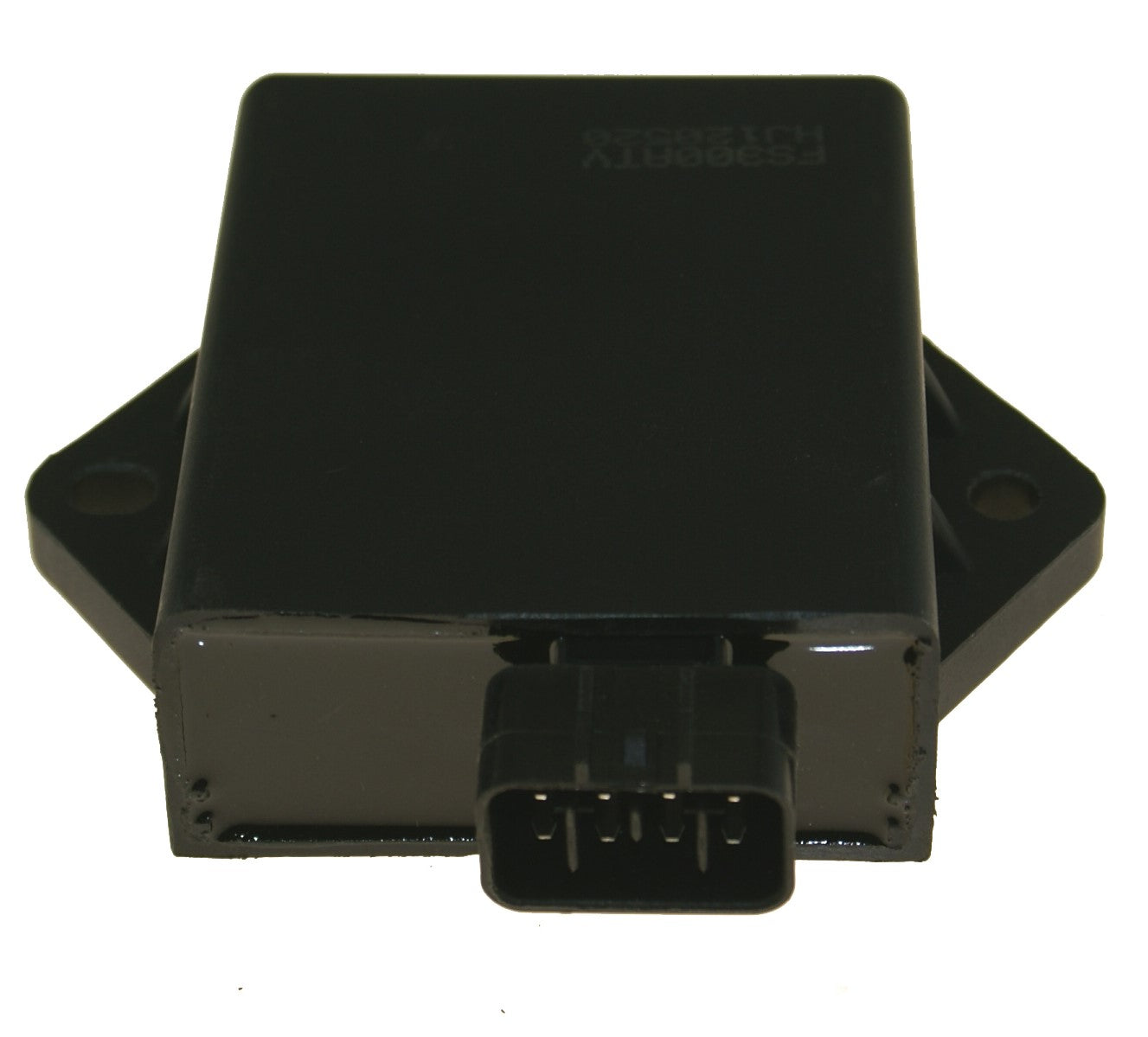

CDI 250, 260, 300cc (8-PIN, DC)

CDI 250, 260, 300cc (8-PIN, DC)

DESCRIPTION:

CDI BOX 250,260,300cc (8-PIN, DC). Commonly used on Linhai Make/Models but not limited to this make/model.

SPECIFICATIONS:

• PINS: 8
• TYPE: DIRECT CURRENT (DC)
• COMPATIBLE WITH: 12v SYSTEMS
• LENGTH: 3.5"
• WIDTH: 2.75"
• HEIGHT: 1.0"
• FLAMEOUT FUNCTION: DISCONNECT IGNITION SWITCH OFF.
• OPERATING TEMPERATURE RANGE: -30 - + 60 DEGREES C.
• CONNECTOR MEASUREMENTS: .80" (W) X .75" (H) X 1.0" (L).

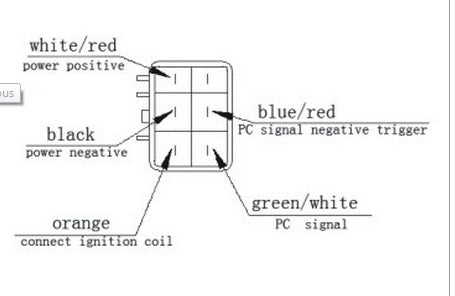

• CONNECTOR(S) DETAILS: FEMALE CONNECTOR (HAS 6 SPACES, USES 5)
• CONNECTOR(S) DETAILS: SINGLE CONNECTOR
• BOLT HOLES: 2
• RPM: 7500
• CONTINUOUS IGN. RANGE: 100R/MIN-11000R/MIN
• MIN RANGE: ≤ 100R/MIN

FITS ENGINE TYPE(S)

• GY6
• VOG

FITS ENGINE SIZE(S)

• 250CC, 250cc(VOG), 260cc(VOG), 300cc(VOG)

Compatible with, but not necessarily limited to, engine images below (If applicable):

TECH TIPS:

• NOT SURE IF YOU HAVE AN AC OR DC TYPE CDI? CLICK HERE.
• Always refer to your original owners/operator manual to confirm compatibility and installation details.

NOTICES/WARNINGS:

• ****IMPORTANT NOTICE: Before ordering your replacement CDI you MUST make sure you are buying the correct current type (AC vs DC). We offer both Alternating Current (AC) and Direct Current (DC) CDI's, these CDI's are NOT interchangeable.
