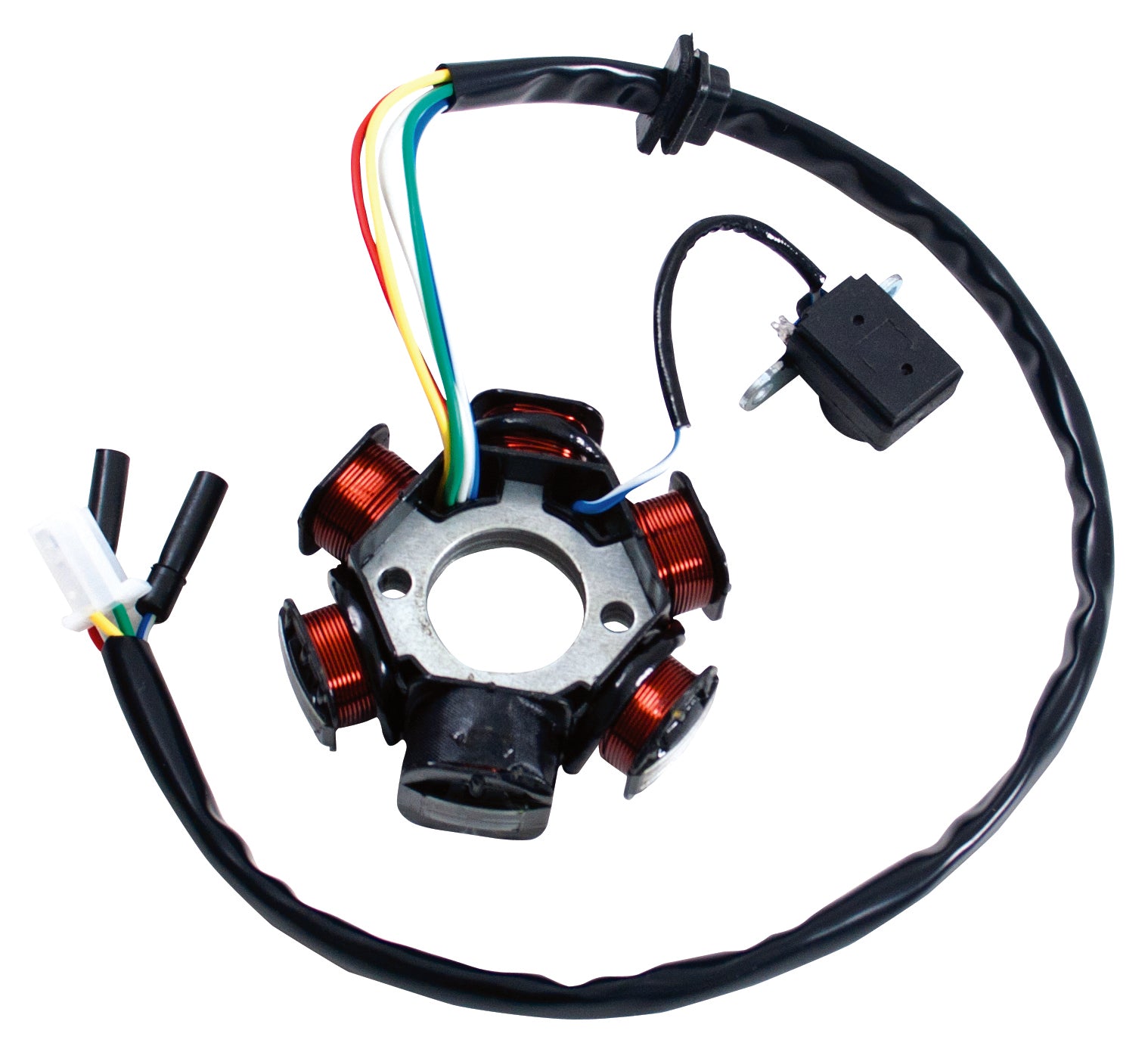

Stator/Magneto, 6-Coil – Outside Distributing
Stator/Magneto, 6-Coil

Stator/Magneto, 6-Coil

Part # 08-0204

In Stock

  • $ 87.99

A Magneto/Stator is an electrical generator that uses permanent magnets to produce periodic pulses of alternating current to provide power to the spark plug(s). In some engine styles the stator can be located in an area that a derailed chain can cause damage to the stator and engine cover requiring replacement. Stators can also fail due to a number of reasons including shorts, water damage etc. If you are not generating power from your engine we recommend testing your stator to see if it needs replacement.

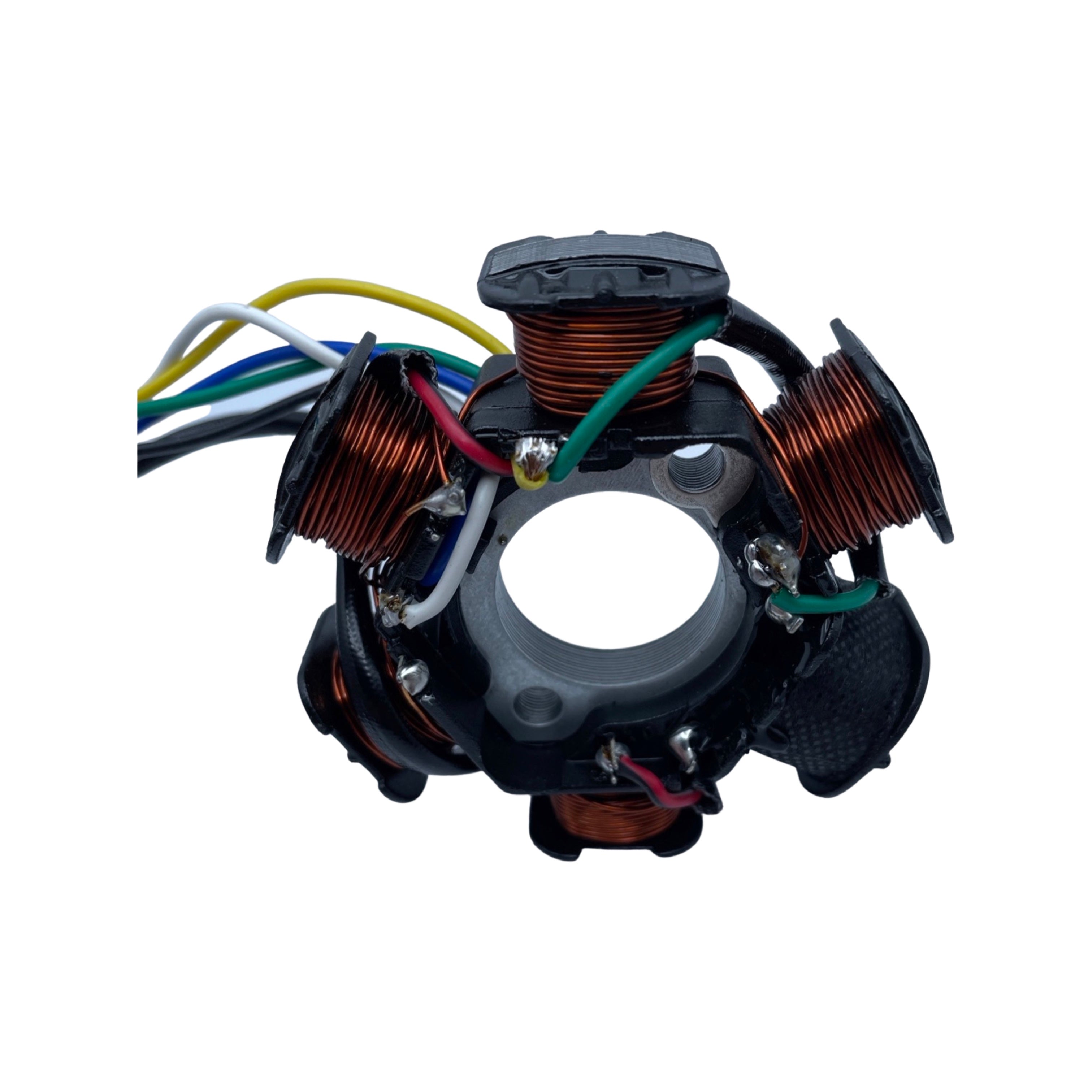

  • Coils: 6

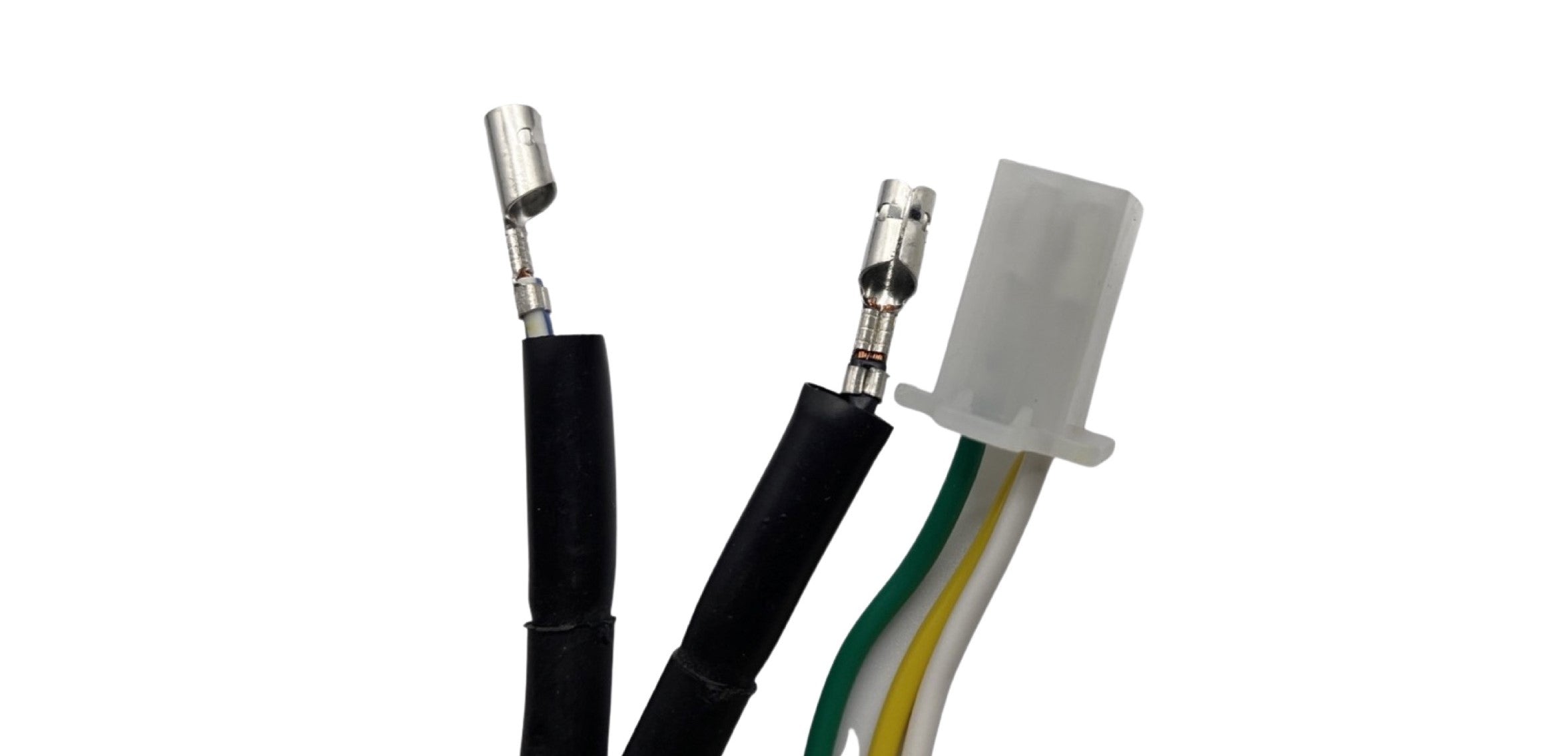

  • Wires: 3 + 2 Loose Wires with Female Connector Ends
  • 3 Wire Colors: Wht/Ylw/Grn
  • 2 Wire Colors: Blue/White, Red/black
  • Wire Length: 21"

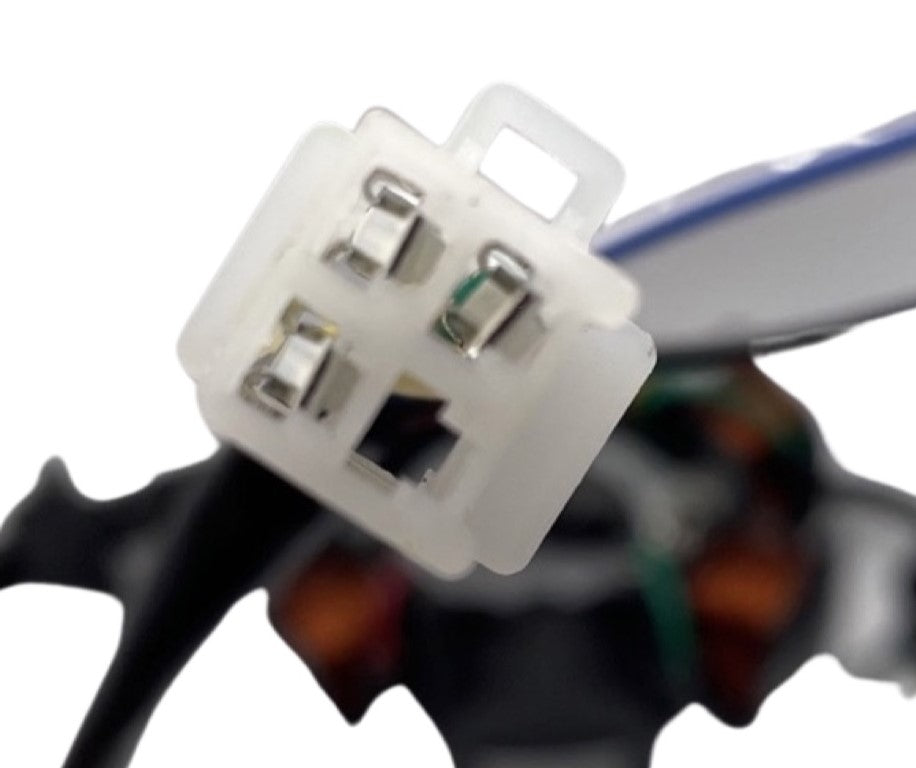

  • Connector Types: Male Connector (4-Pin Connector, only uses 3 of the 4 slots available) + 2 Loose Wires with Female Connector Ends
  • Center Hole Diameter: 29mm / 1.0"
  • Outside Diameter: 3.25"
  • Mounting Holes: 2
  • Bolt Hole Spacing (BHS): 42mm / 1.65"
  • System Type: 12 Volt
  • NOTE: All measurements are approximate. Consult your vehicles owner manual prior to installation to ensure compatibility.Installation of the wrong part can lead to failure, damage and possible injury, seek a the assistance of a certified mechanic for installation. ALL ELECTRICAL PARTS ARE FINAL SALE.
  • FITS:
  • SIZE RANGE:Coming Soon...

Video(s) Coming Soon...

TECH TIPs coming Soon...

Please be sure to haveBOTH the Outside Distributing Part Number and the Distributor Re-Seller Part Number(s) handy when calling your local dealer. Most dealers will require the appropriate distributor part number when you call to order.

Distributor Part Number
GAMMA 89-00514
KIMPEX 217114




Distributor Part Number
Western Power Sports 609-1511
J&M ATV Supply CST0204
