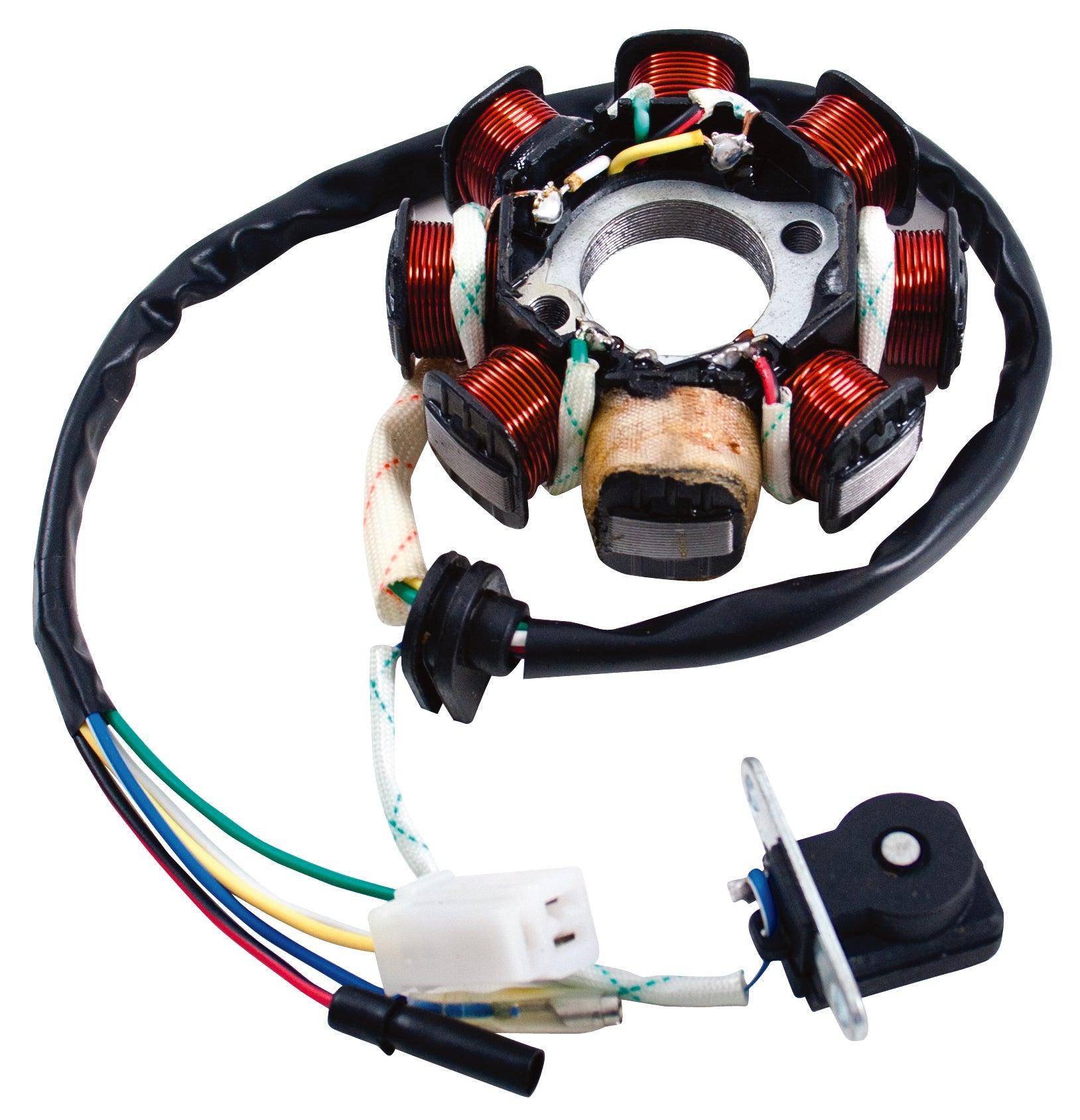

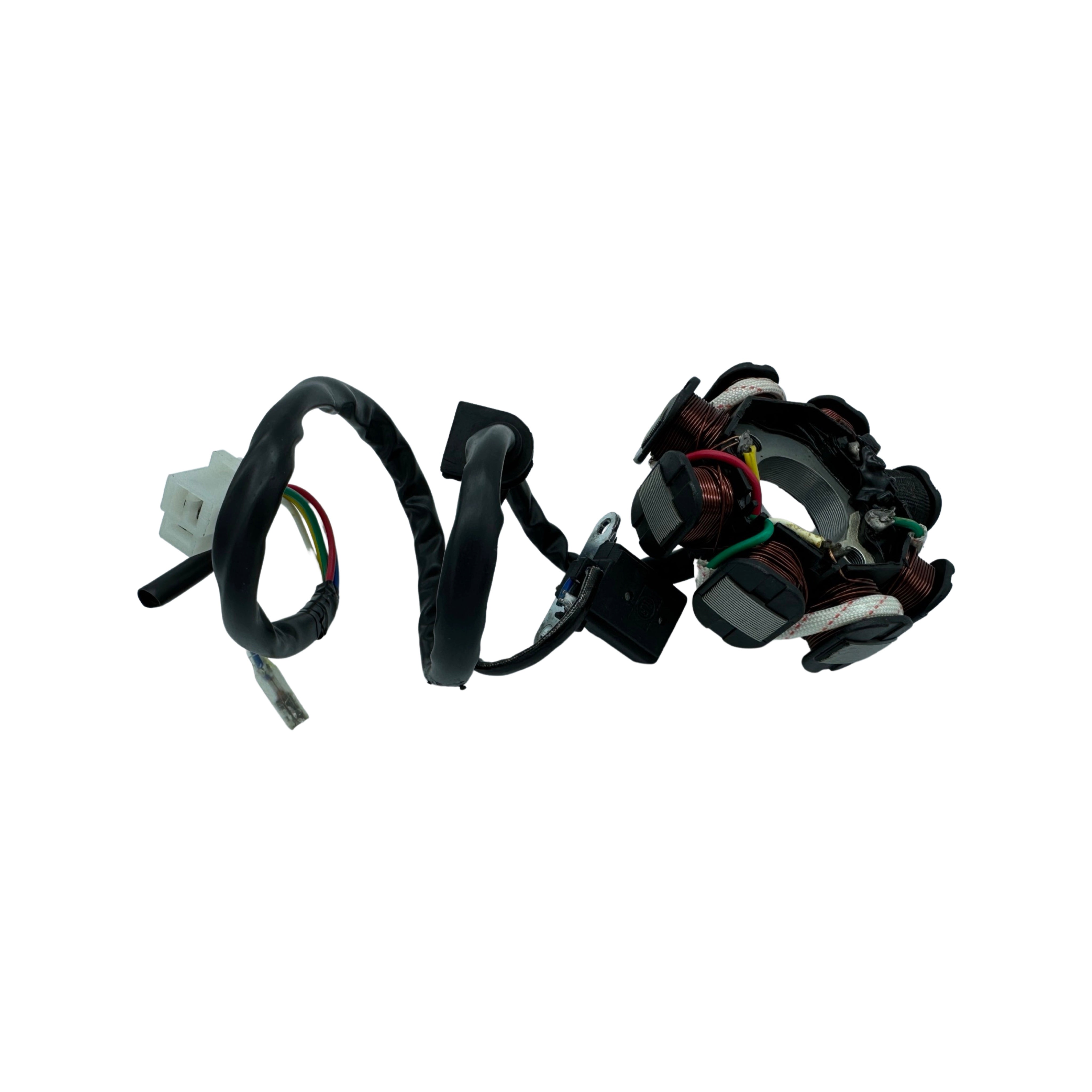

STATOR, 8-COIL (3+2 WIRE), 3-SLOT MALE CONNECTOR
DESCRIPTION:
A Magneto/Stator is an electrical generator that uses permanent magnets to produce periodic pulses of alternating current to provide power to the spark plug(s). In some engine styles the stator can be located in an area that a derailed chain can cause damage to the stator and engine cover requiring replacement. Stators can also fail due to a number of reasons including shorts, water damage etc. If you are not generating power from your engine we recommend testing your stator to see if it needs replacement.
SPECIFICATIONS:

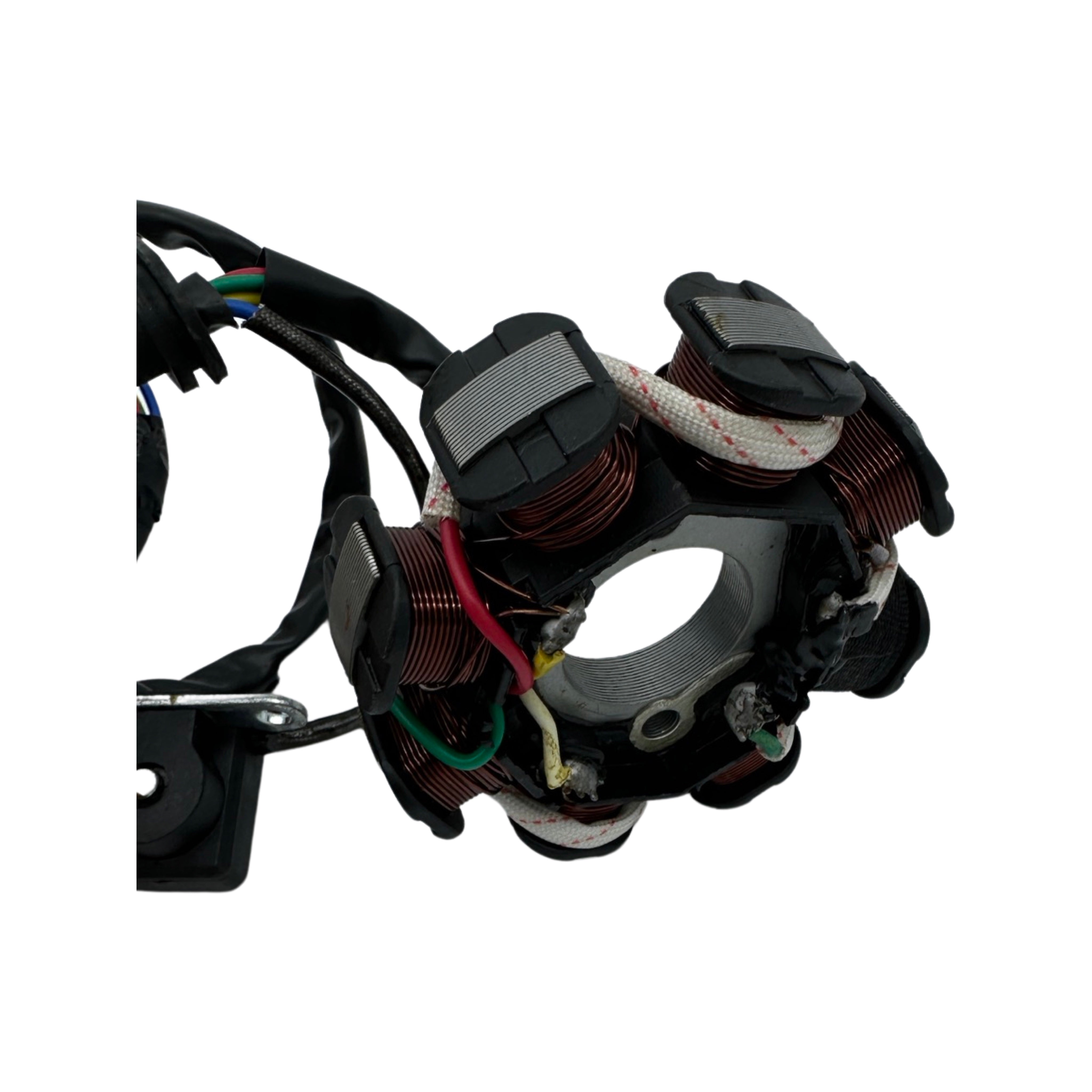

- NUMBER OF COILS: 8
- DIAMETER (O.D): 3.5"
- CENTER HOLE DIAMETER (I.D): 29mm / 1.0"
- WIRES: 3 + 2 WIRES (3 WIRE MALE CONNECTOR, 2 LOOSE WIRE FEMALE ADAPTERS)
- PICKUP: INCLUDED
- MOUNTING HOLES: 2
- BOLT HOLE SPACING (BHS): 42MM / 1.65"
- VOLT TYPE: 12V

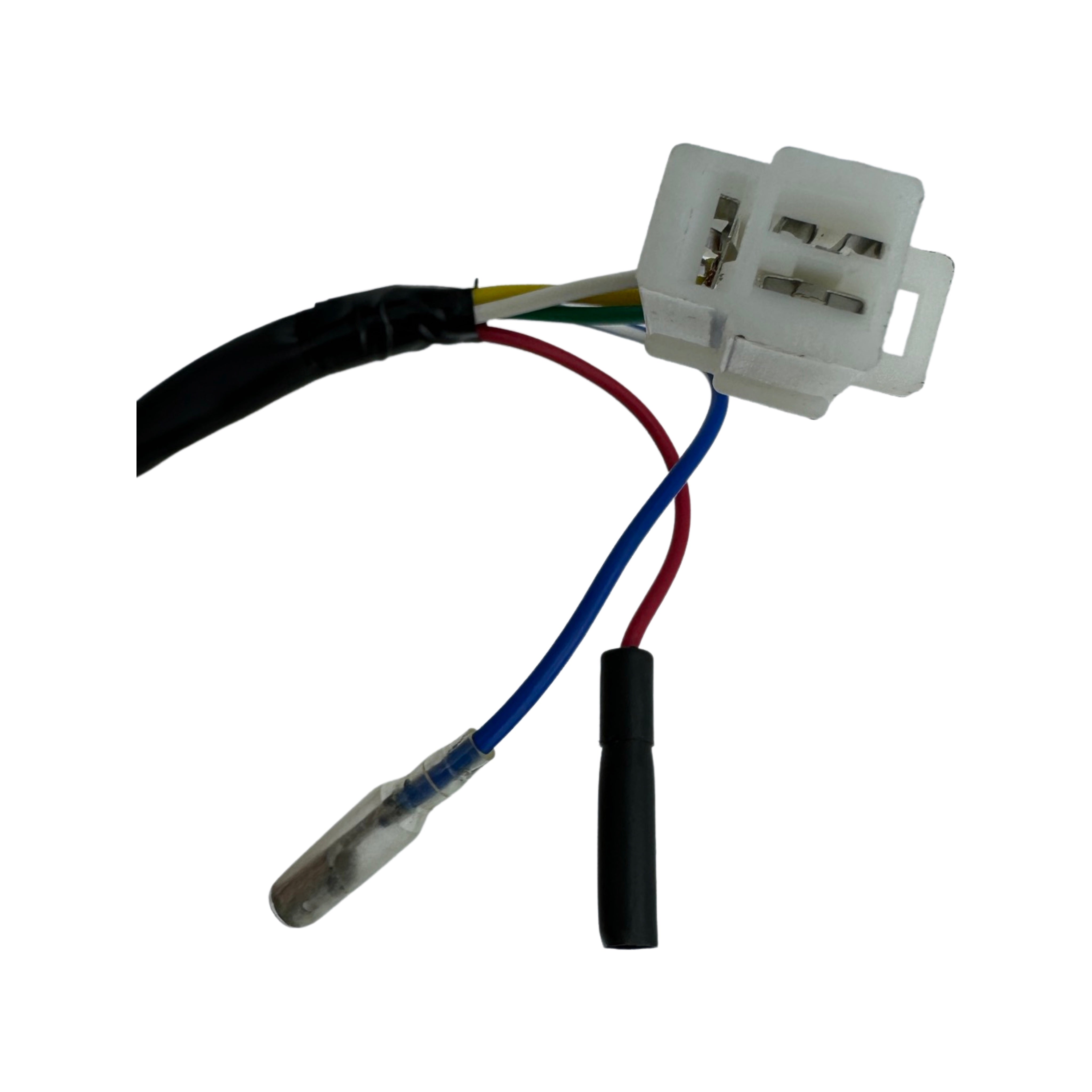

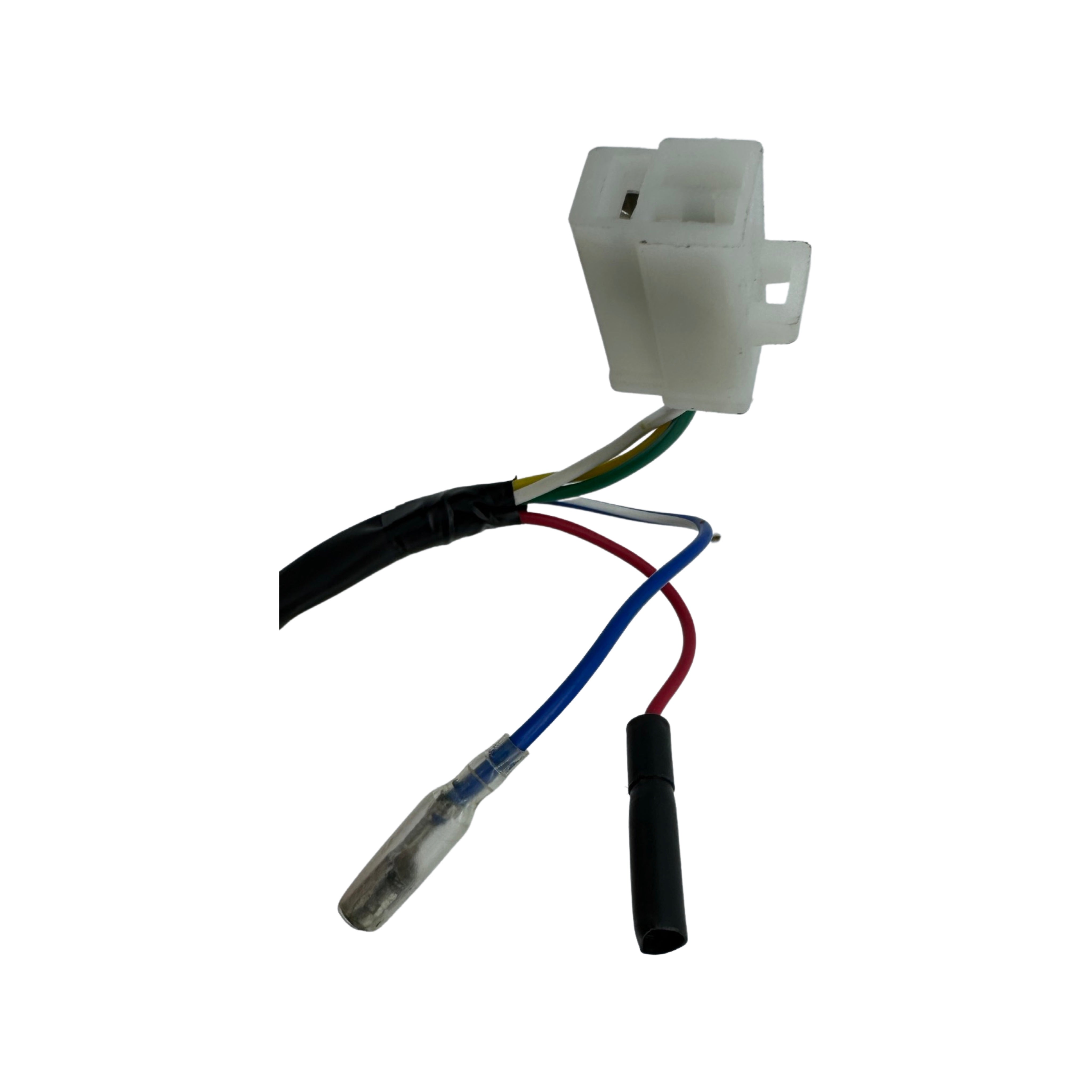

- CONNECTOR(S) DETAILS: 3 - (IN 3-PIN MALE PLUG); 2 - LOOSE WIRES WITH FEMALE ENDS
INCLUDES:

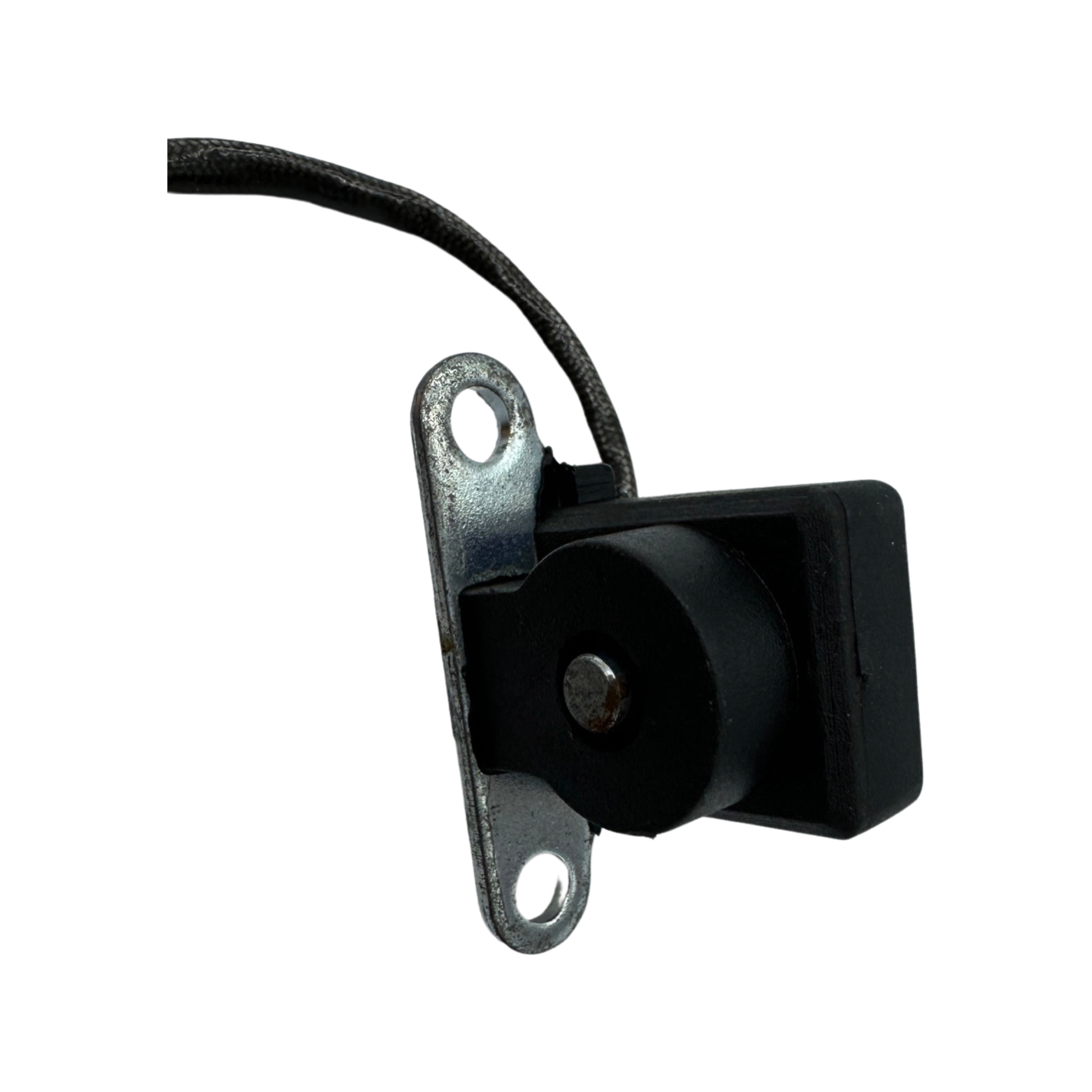

- PICK UP TRIGGER (Attached)
NOT INCLUDED:
FITS ENGINE TYPE(S)
FITS ENGINE SIZE(S)
- 50cc (GY6), 125cc (GY6), 150cc (GY6)
Compatible with, but not necessarily limited to, engine images below (If applicable):
TECH TIPS:
- Always refer to your original owners/operator manual to confirm compatibility and installation details.
DISTRIBUTOR PART #(S)
BEFORE CALLING OR VISITING YOUR LOCAL DEALER...
Have BOTH the Outside Distributing Part Number and the Distributor Re-Seller Part Number(s) handy when calling your local dealer. Most dealers will require the appropriate distributor part number when you call to order. If a distributor does not list the item you can order online.
USA - DISTRIBUTORS
Distributor |
Part Number |
WESTERN POWERSPORTS (WPS Inc.) |
609-1512 |
TUCKER POWERSPORTS |
178361 |
J&M ATV Supply |
CST0205 |
CANADIAN - DISTRIBUTORS
Distributor |
Part Number |
GAMMA POWERSPORTS |
89-00515 |
KIMPEX |
217115 |
ROYAL DISTRIBUTING |
C01-080205 |
MOGO UPC-A: 874285001263
