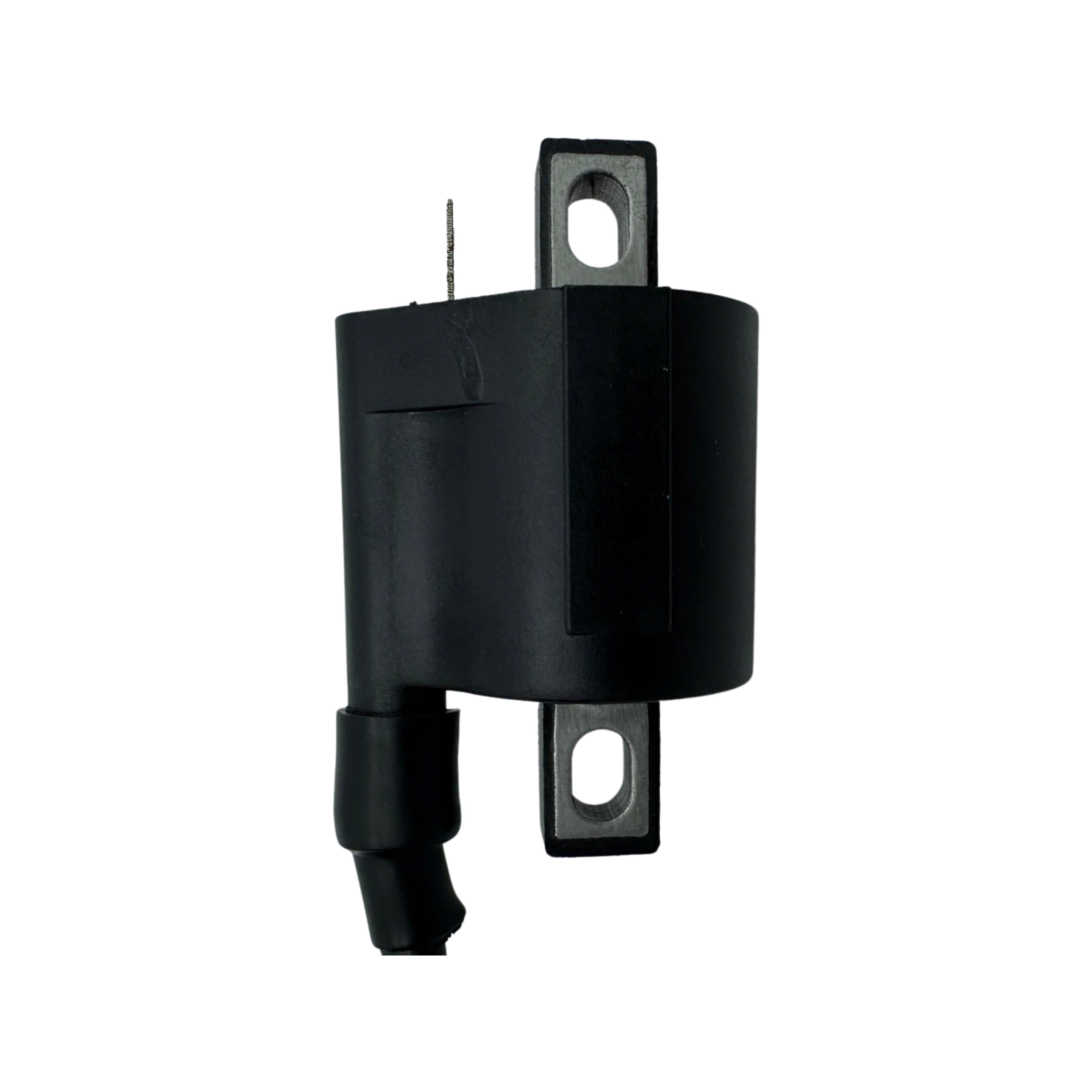

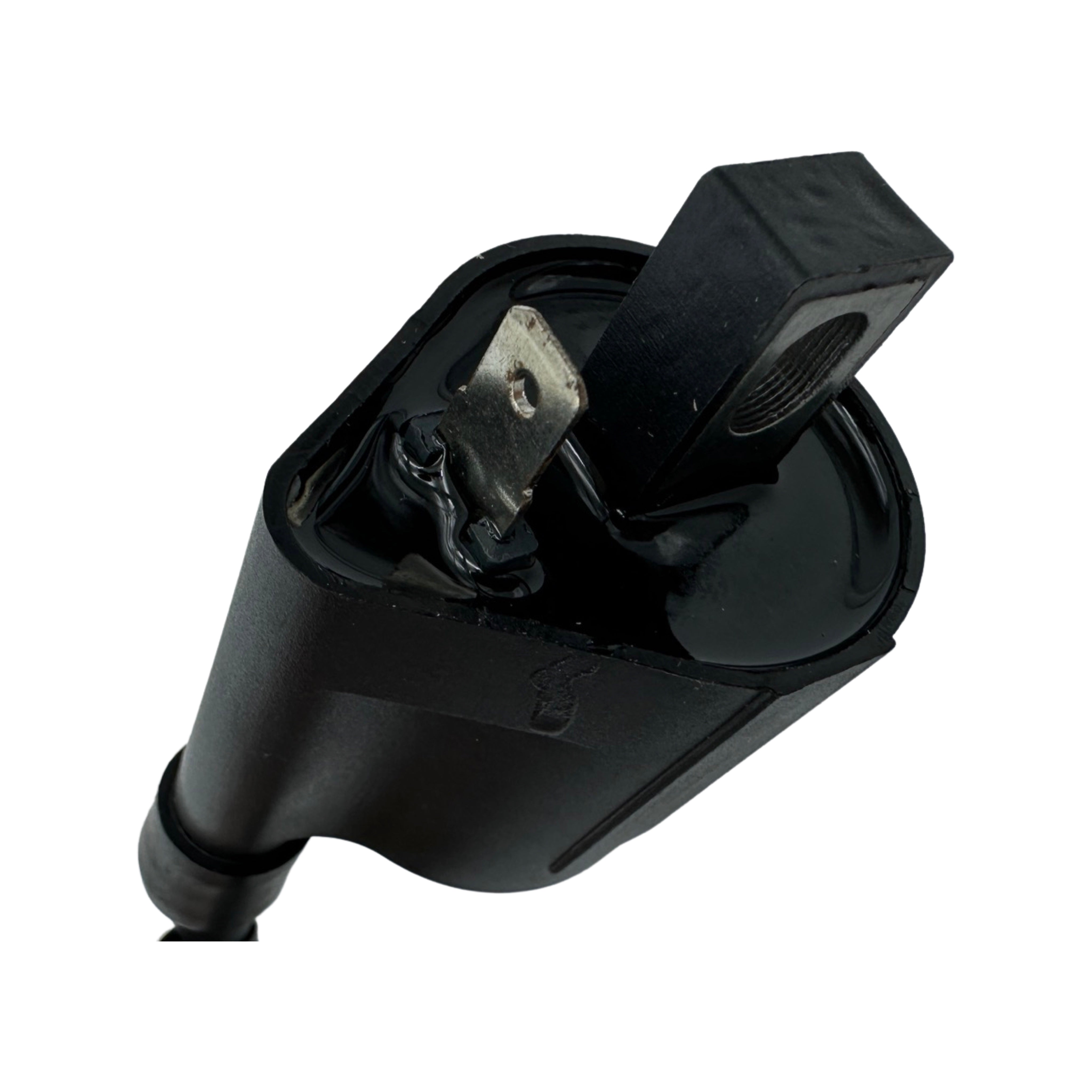

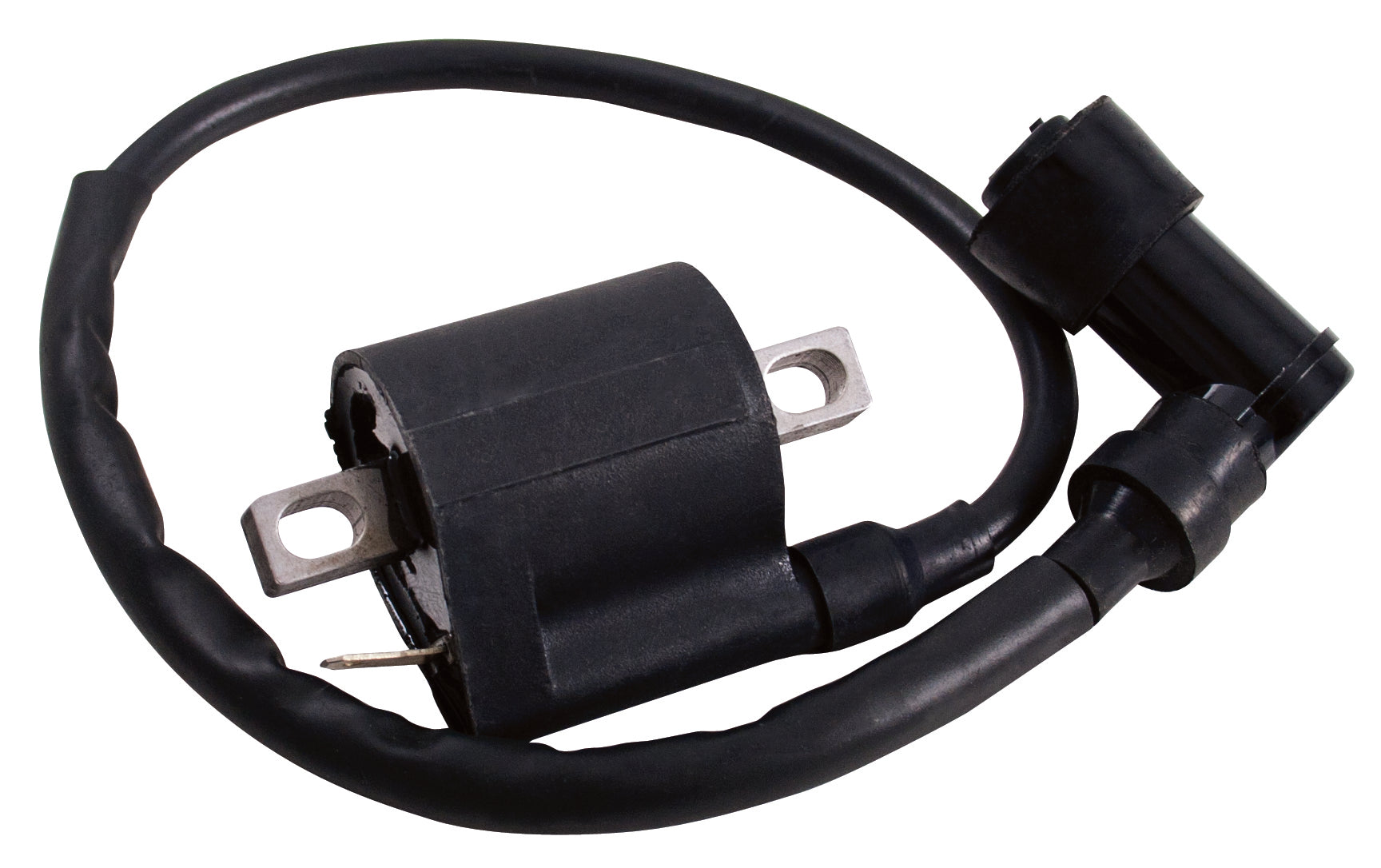

IGNITION. COIL, H50-150cc No Bracket

IGNITION. COIL, H50-150cc No Bracket

DESCRIPTION:

Many original Ignition coils supplied by the vehicle manufactures fail early in the life of the vehicle due to lower grade internal components. This coil is designed to improve overall reliability and performance and is the number one choice from dealers across the nation.

SPECIFICATIONS:

• WIRE LENGTH: 12-17" (APPROX. RANGE)
• MOUNTING: 2 BOLT HOLE(S), BOLT(S) NOT INCLUDED.
• BOLT HOLE SPACING: 58MM / 2.25" (APPROX. ADJUSTABLE +/- 2MM)
• SPARK PLUG CAP: INCLUDED, 90 DEGREE ANGLE.
• LENGTH, COIL BODY: 40MM / 1.5"
• LENGTH: END-END OF COIL BODY INCLUDING MOUNTING BRACKETS. 71MM / 2.8"
• OTHER: PLASTIC CAP. WORKS WITH A7TC & NGK CR7HSA/C7HSA AND ANY OTHER COMPATIBLE SPARK PLUGS.
• MOUNTING METHOD: BOLT MOUNTED
• CONNECTOR(S) DETAILS: 1 SPADE CONNECTOR
• VOLT TYPE: 12 VOLT.
• WIRE COUNT 1, COIL WIRE

FITS ENGINE TYPE(S)

• VERTICAL
• HORIZONTAL STYLE

FITS ENGINE SIZE(S)

• 125cc (Vertical), 150cc (Vertical), 200cc (Vertical), 250cc (Vertical), 50cc (H), 70cc (H), 90cc (H), 110cc (H), 125cc (H), 140cc (H), 150cc (H)

Compatible with, but not necessarily limited to, engine images below (If applicable):

TECH TIPS:

• NGK SPARK PLUG # CR7HSA
• Always refer to your original owners/operator manual to confirm compatibility and installation details.

DISTRIBUTOR PART #(S)

BEFORE CALLING OR VISITING YOUR LOCAL DEALER...
Have BOTH the Outside Distributing Part Number and the Distributor Re-Seller Part Number(s) handy when calling your local dealer. Most dealers will require the appropriate distributor part number when you call to order. If a distributor does not list the item you can order online.
