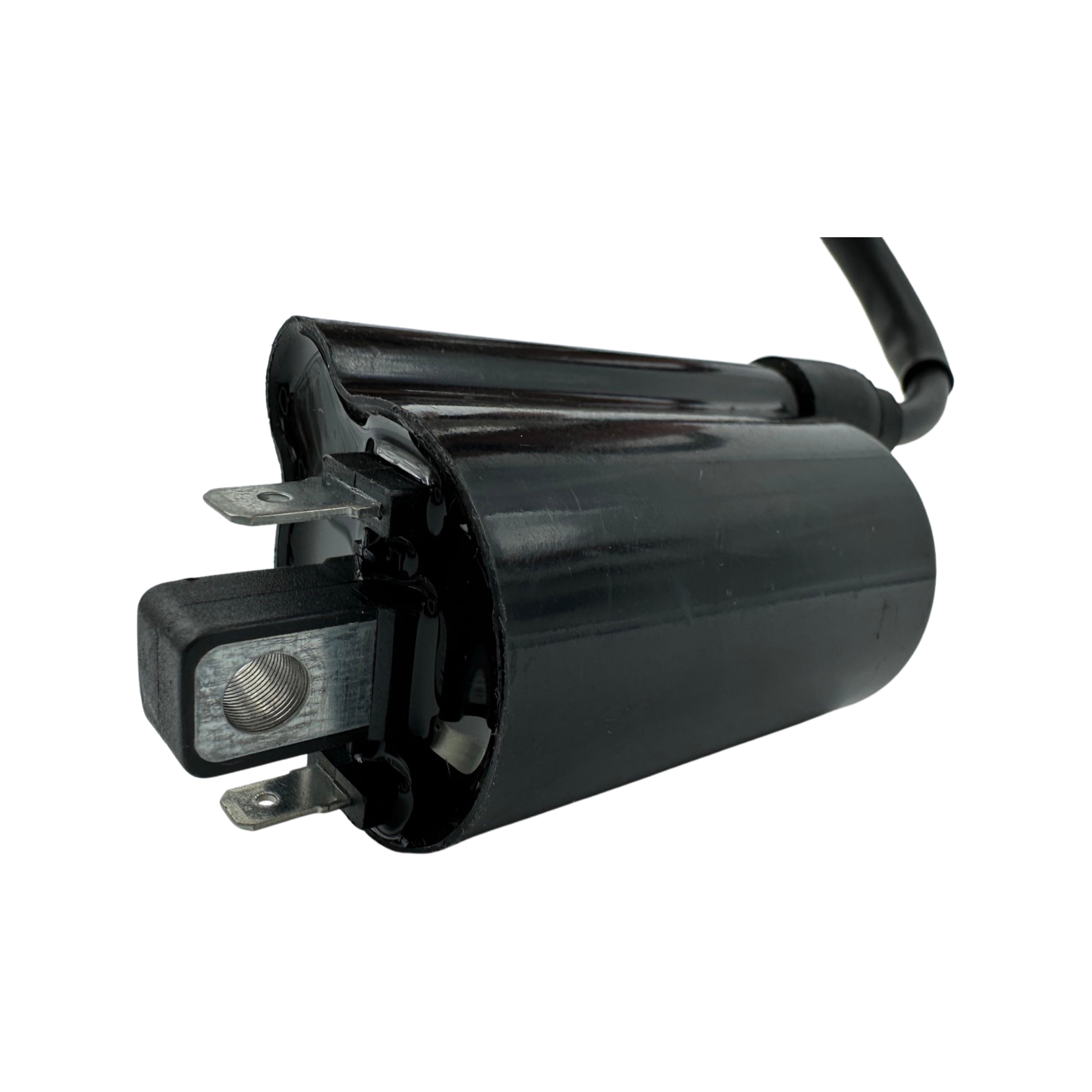

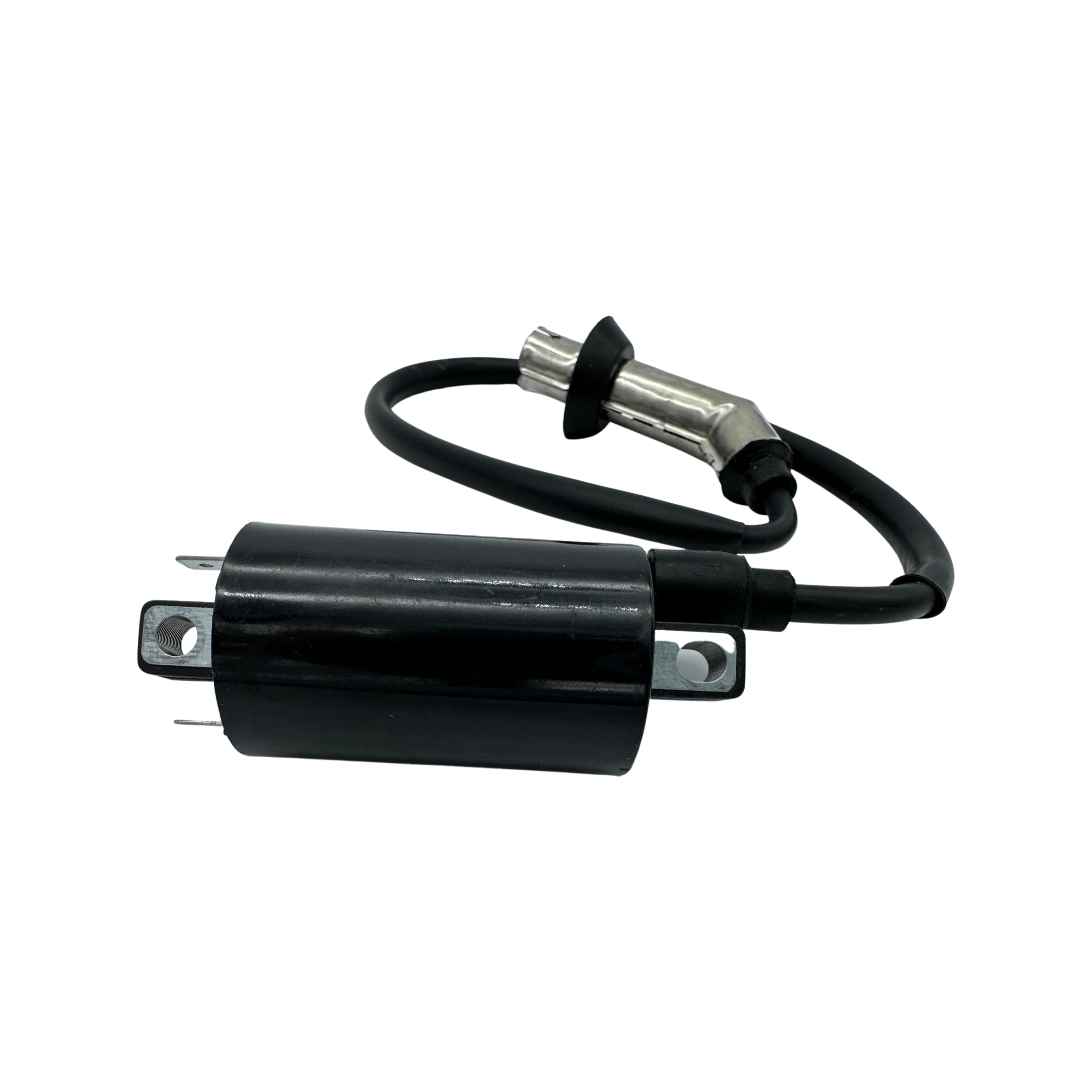

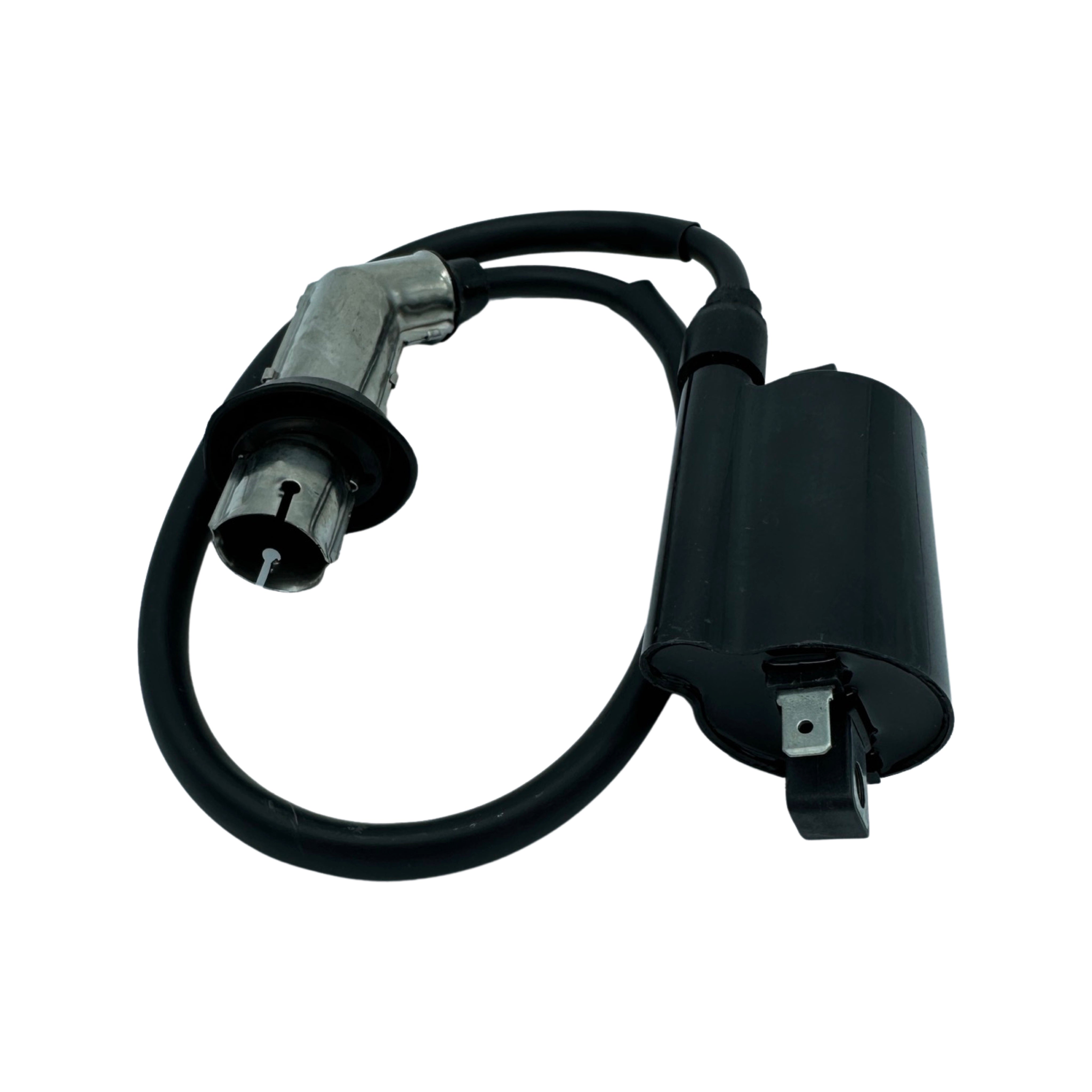

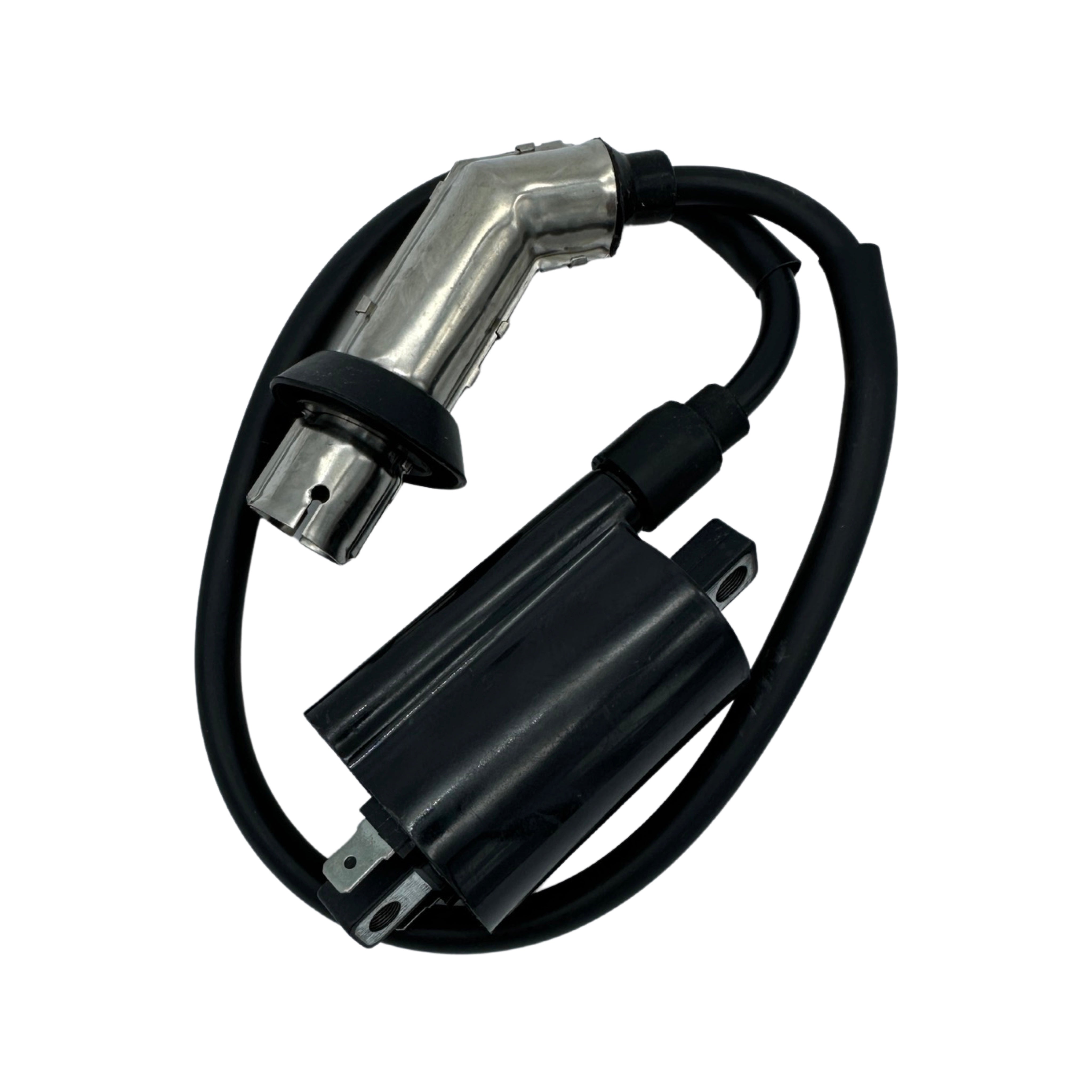

IGNITION COIL, 250/260/300cc

IGNITION COIL, 250/260/300cc

DESCRIPTION:

Many original Ignition coils supplied by the vehicle manufactures fail early in the life of the vehicle due to lower grade internal components. This coil is designed to improve overall reliability and performance and is the number one choice from dealers across the nation.

SPECIFICATIONS:

• WIRE COUNT: 1 COIL WIRE, 2 SPADE CONNECTORS
• COIL WIRE LENGTH: APPROX 16"
• MOUNTING: 2 BOLT HOLE(S), BOLT(S) NOT INCLUDED.
• BOLT HOLE SPACING: 80MM (CENTER TO CENTER OF BOLT HOLES)
• SPARK PLUG CAP: NCLUDED, METAL CAP, 135 DEGREE ANGLE
• COIL BODY LENGTH: APPROX 2.4" LONG
• TOTAL COIL LENGTH INCLD. MOUNTS: APPROX 3.6" LONG
• LENGTH #1: 66MM / 2.6" (END-END INCLUDING BRACKET & PLUG)
• VOLT TYPE: 12 VOLT.

FITS ENGINE TYPE(S)

• GY6
• VOG

FITS ENGINE SIZE(S)

• 250cc, 250cc(VOG), 260cc(VOG), 300cc(VOG)

Compatible with, but not necessarily limited to, engine images below (If applicable):

TECH TIPS:

• Always refer to your original owners/operator manual to confirm compatibility and installation details.

DISTRIBUTOR PART #(S)

BEFORE CALLING OR VISITING YOUR LOCAL DEALER...
Have BOTH the Outside Distributing Part Number and the Distributor Re-Seller Part Number(s) handy when calling your local dealer. Most dealers will require the appropriate distributor part number when you call to order. If a distributor does not list the item you can order online.
