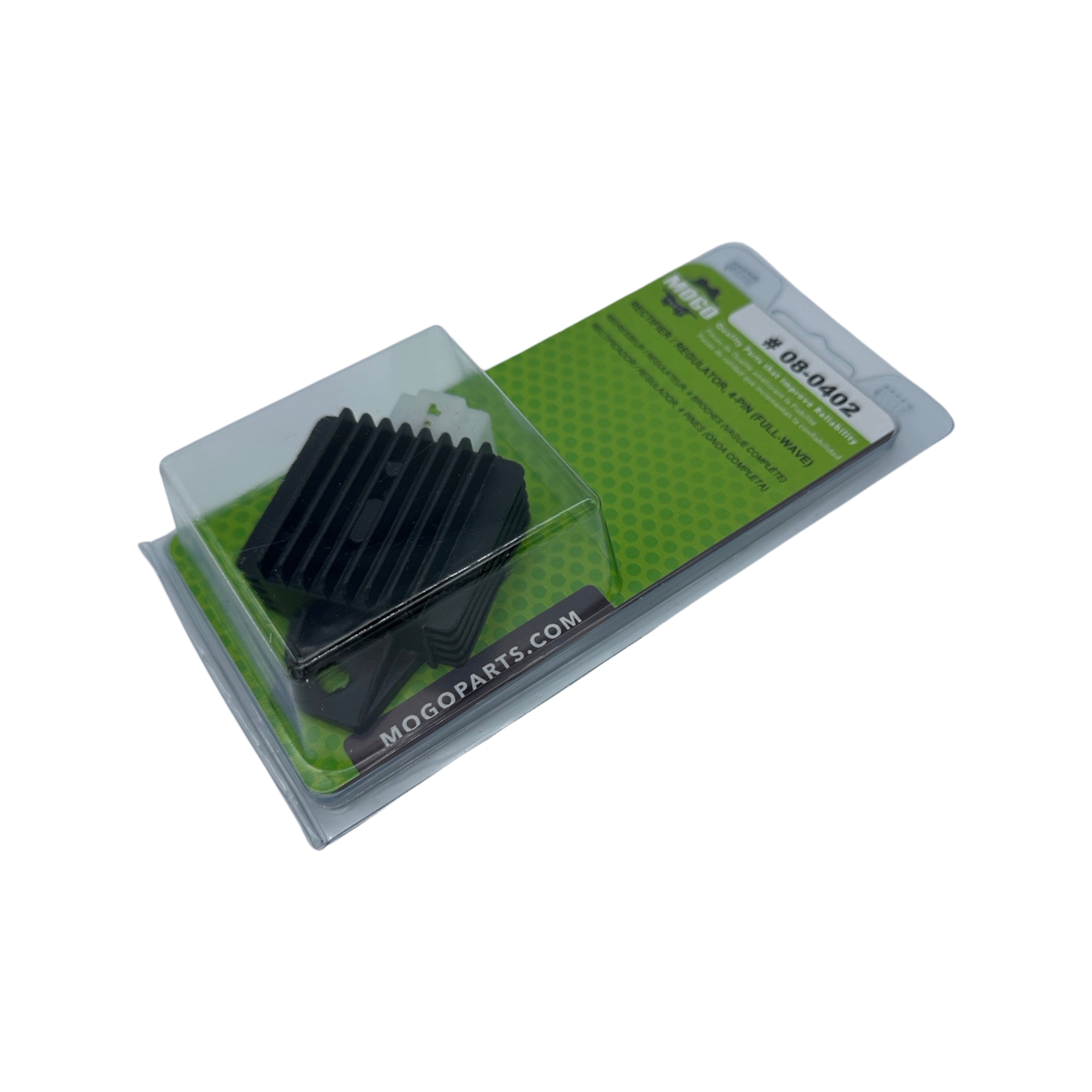

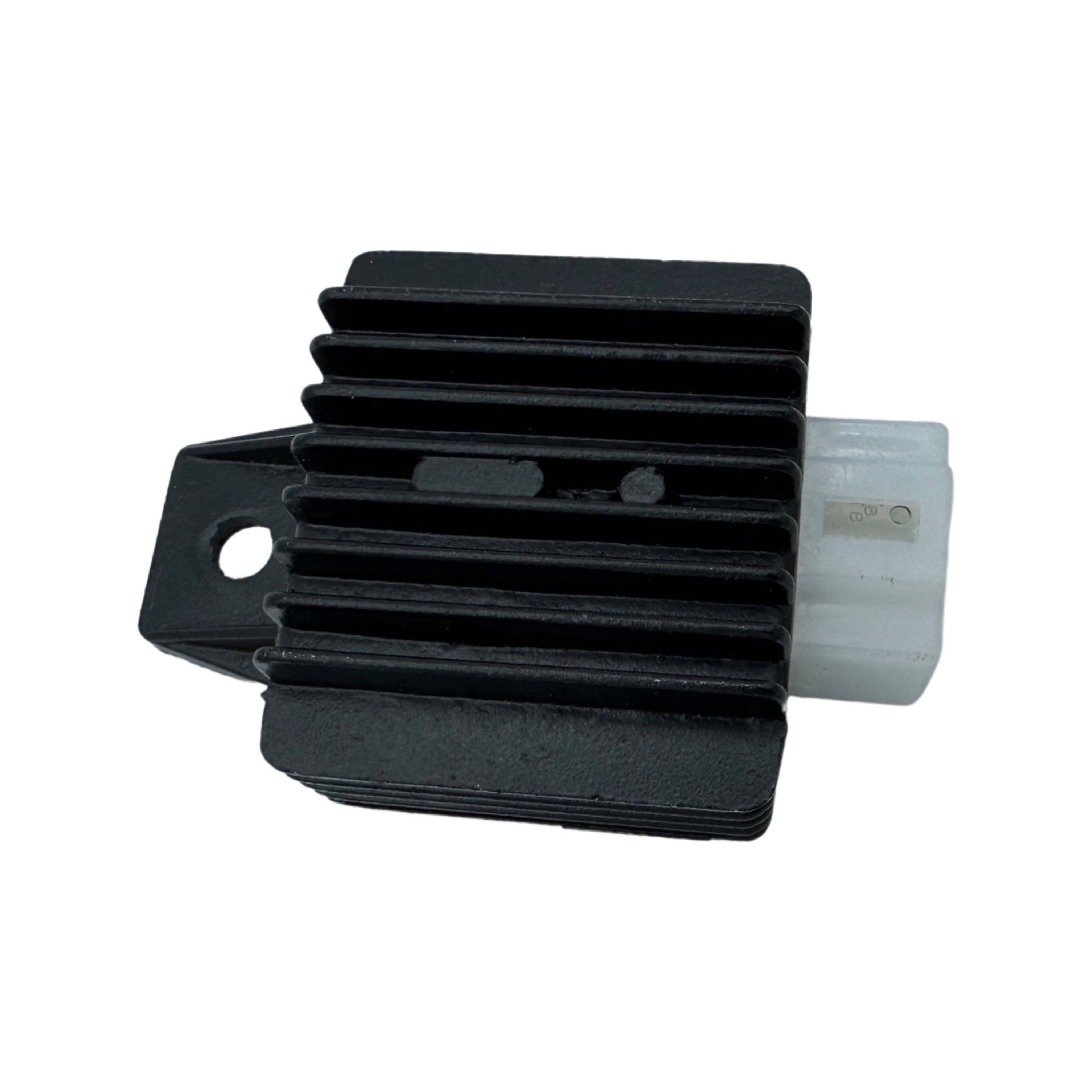

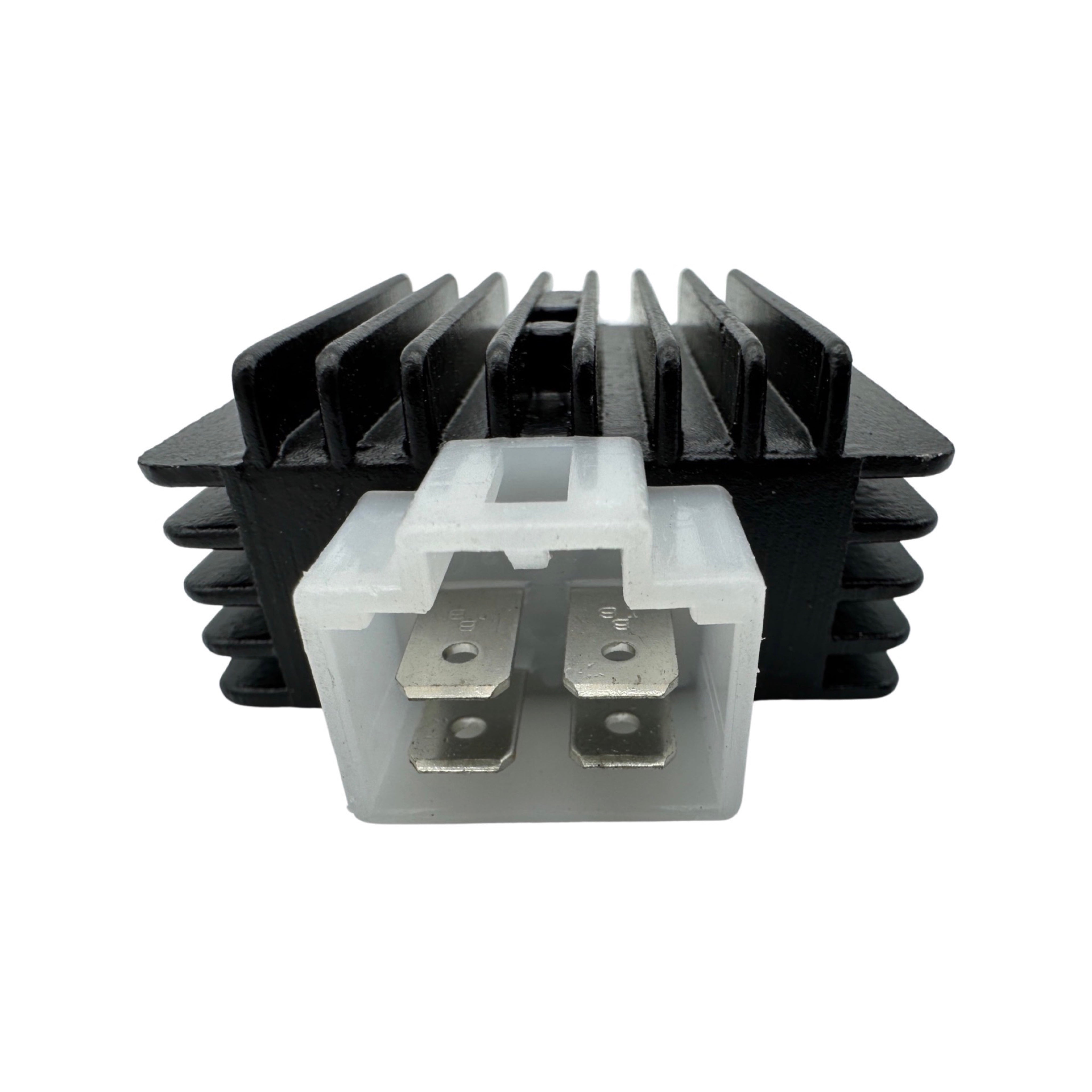

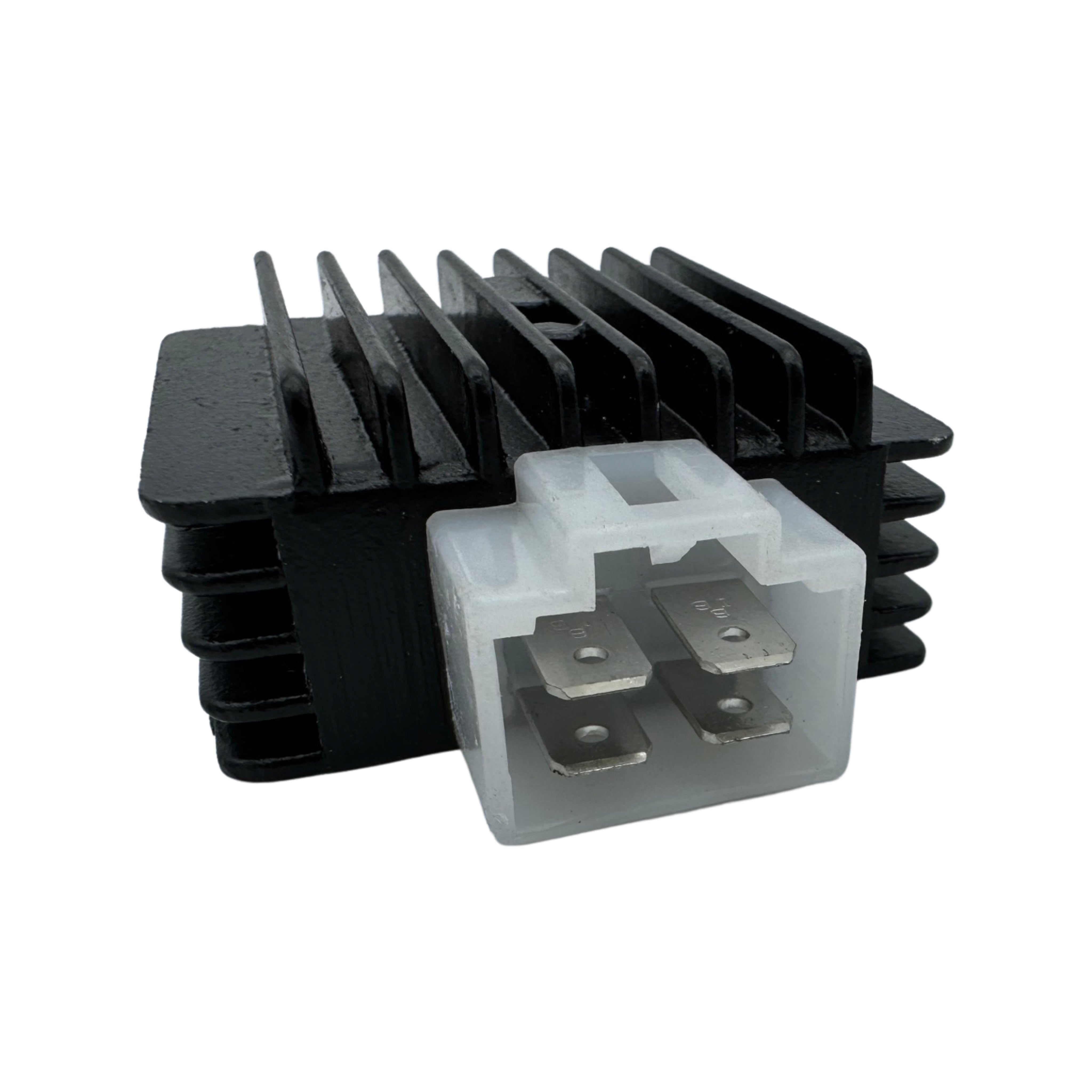

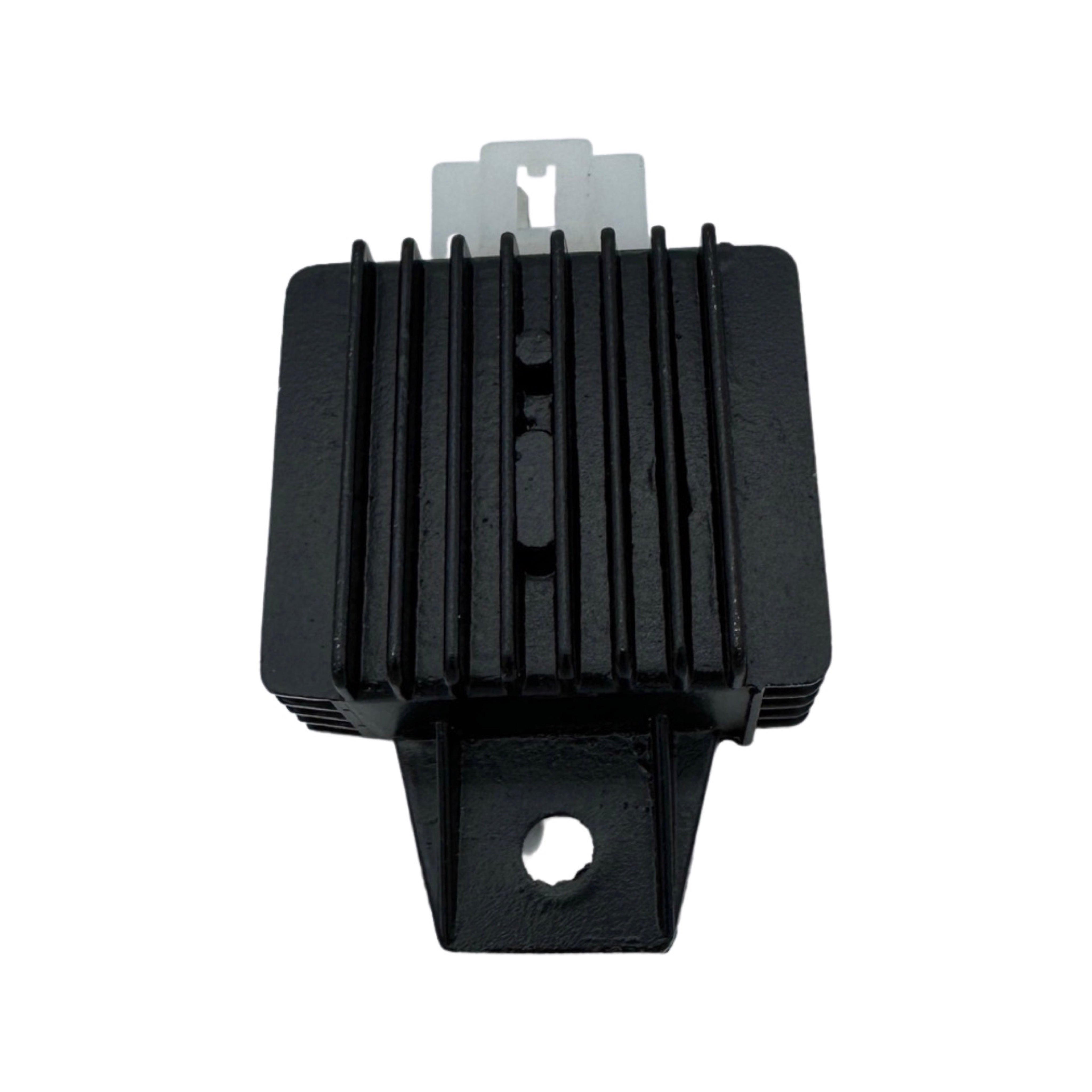

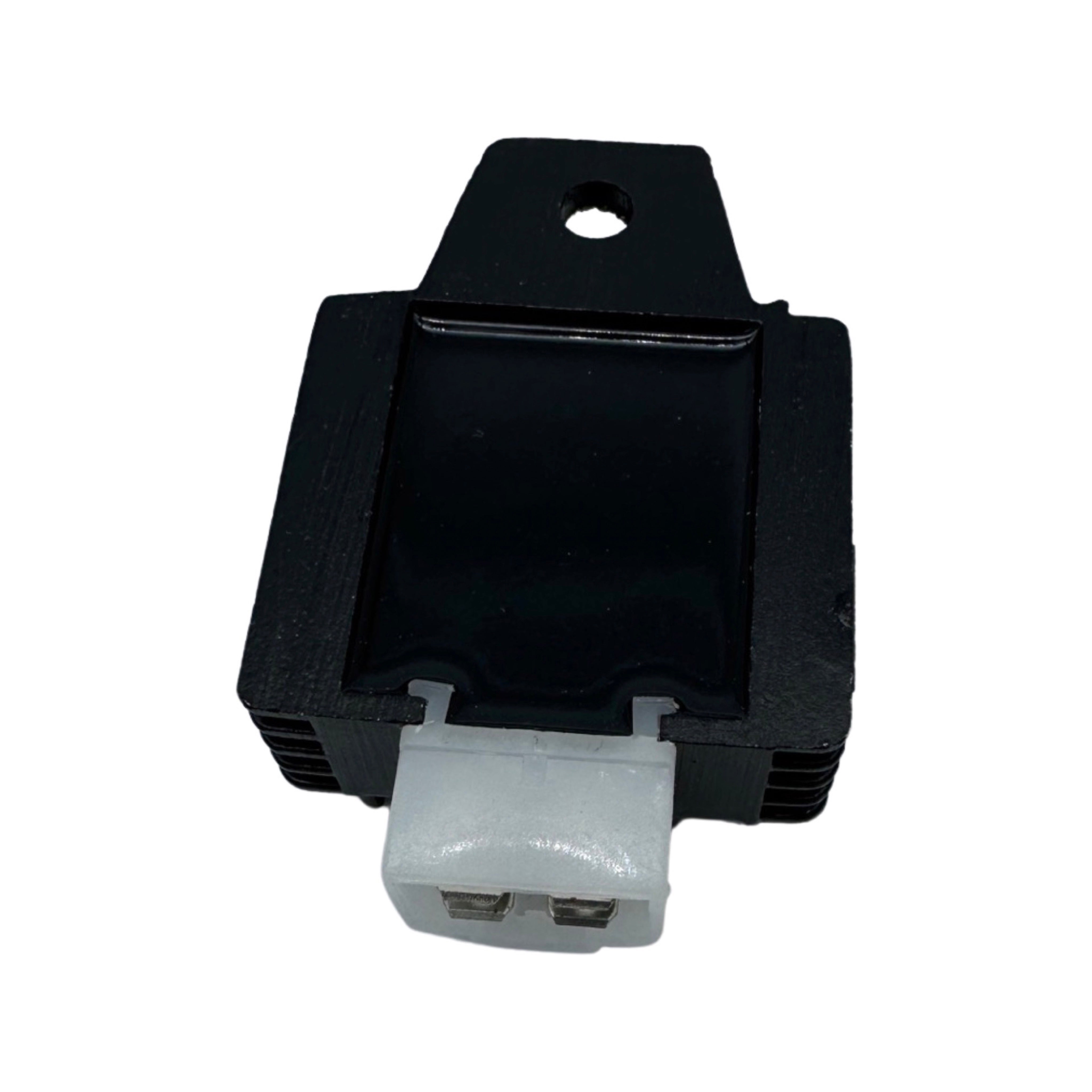

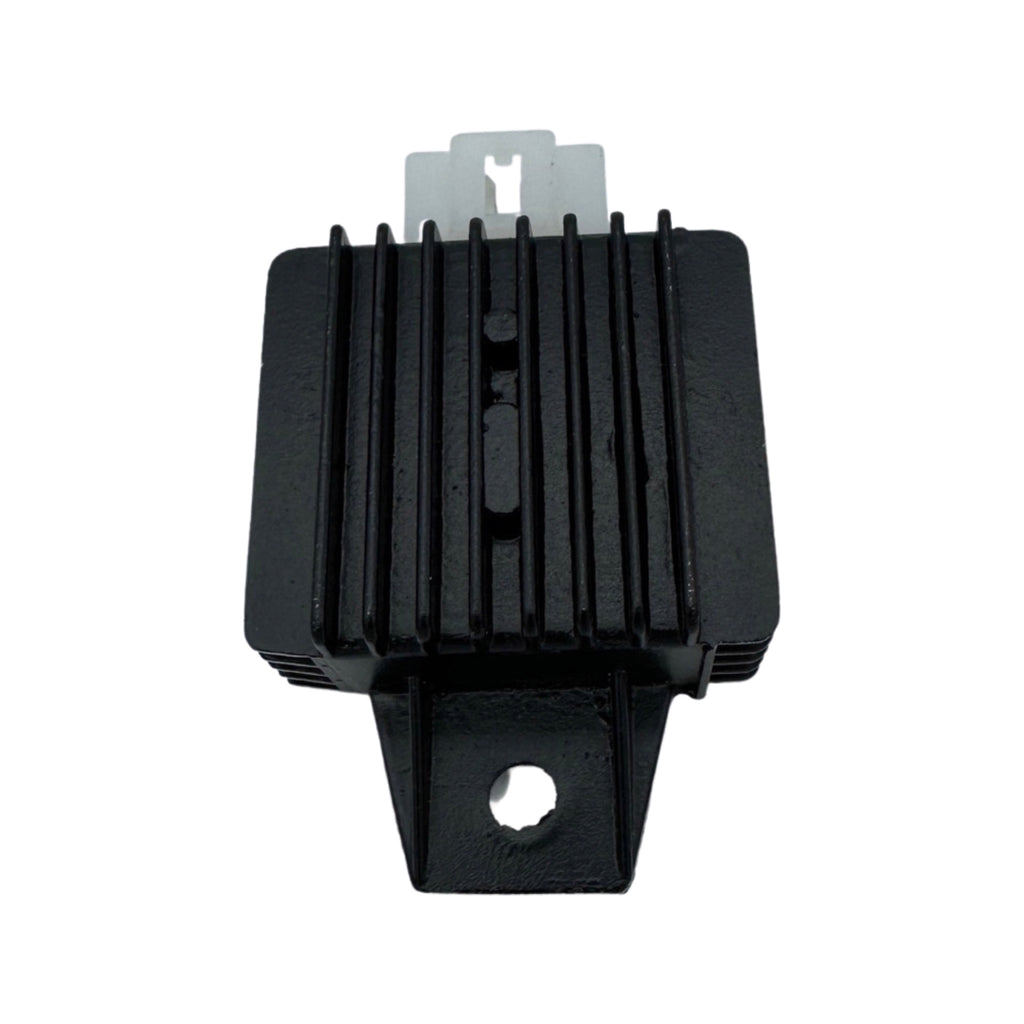

REGULATOR / RECTIFIER, 4-PIN (FULL-WAVE)

REGULATOR / RECTIFIER, 4-PIN (FULL-WAVE)

DESCRIPTION:

A voltage regulator/rectifier is designed to automatically maintain a constant voltage level and will require replacement immediately should it fail.

SPECIFICATIONS:

• PIN COUNT 4
• TYPE: 12V, FULL WAVE
• FIN COUNT: 8 (TOP); 5 (SIDES)
• LENGTH: 72MM / 2.85" (END TO END, INCLUDING MOUNTING TAB AND CONNECTOR.)
• WIDTH: 50MM / 2.0"
• HEIGHT: 26MM / 1.0"
• CONNECTOR TYPE: FEMALE CONNECTOR
• MOUNTING HOLES: 1

FITS ENGINE TYPE(S)

• GY6
• HORIZONTAL STYLE

FITS ENGINE SIZE(S)

• 50cc (GY6), 125cc (GY6), 150cc (GY6), 50cc (H), 70cc (H), 90cc (H), 110cc (H), 125cc (H), 140cc (H), 150cc (H)

Compatible with, but not necessarily limited to, engine images below (If applicable):

TECH TIPS:

• Always refer to your original owners/operator manual to confirm compatibility and installation details.
