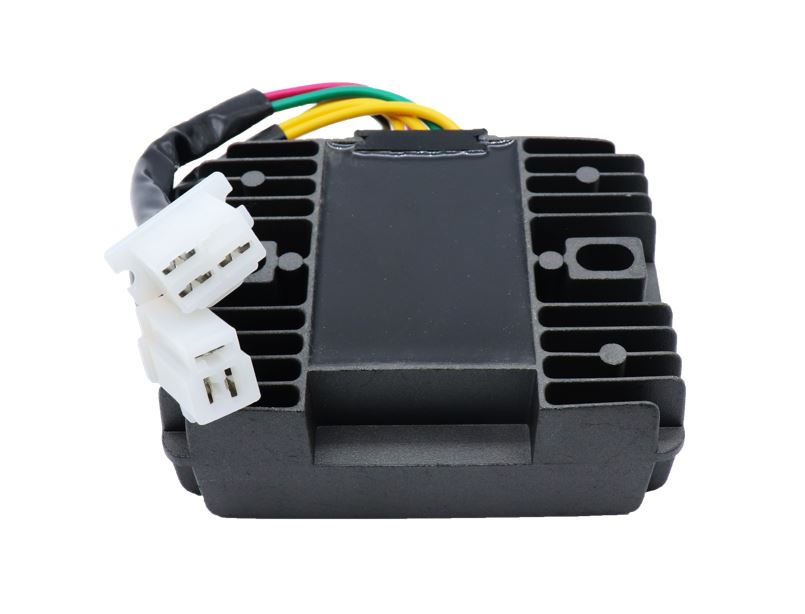

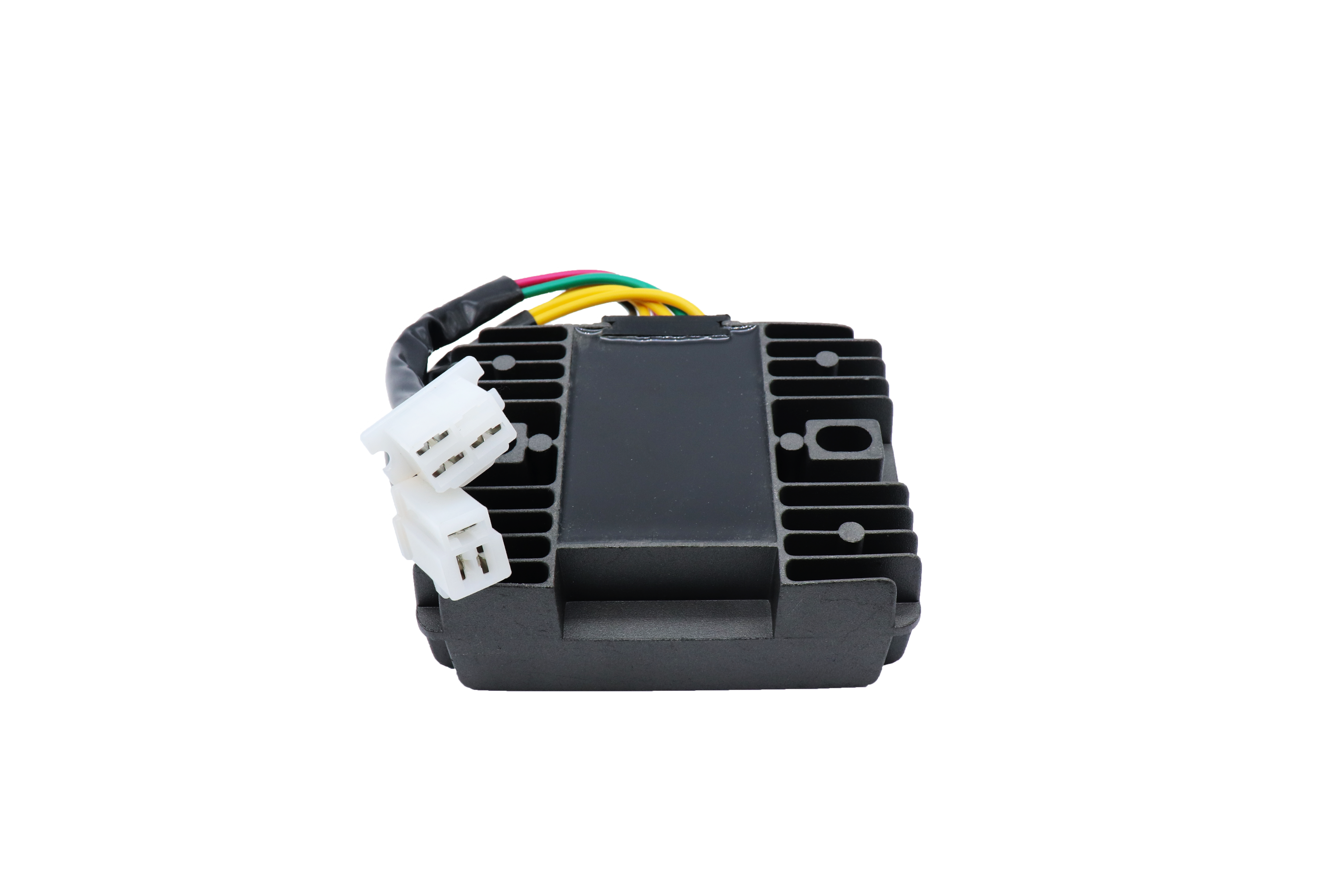

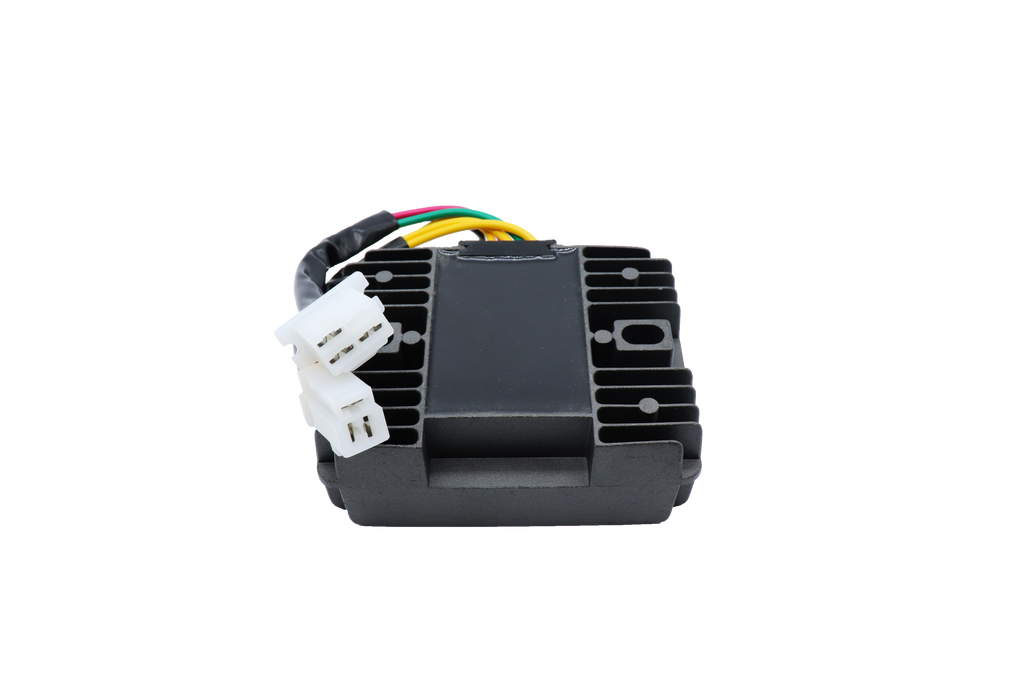

REGULATOR /RECTIFIER (DC), FITS SELECT CF MOTO 250cc
DESCRIPTION:
REPLACEMENT 3-PHASE, 6-WIRE REGULATOR/RECTIFIER. PLUG 1 DETAILS; 3-YELLOW WIRES. PLUG 2; WHITE/GREEN/RED (PLUG HAS 4 SPACES USES 3)
SPECIFICATIONS:
- TYPE: 12V, DC
- 3-PHASE
- 2 PLUGS, 6-WIRE
- PLUG 1: 3 SLOTS, 3 PINS
- PLUG 2: 4 SLOTS, 3 PINS
- BOLT HOLE SPACING (BHS): 80mm
- LENGTH: 4.3"
- WIDTH: 3.3"
FITS ENGINE TYPE(S)
FITS ENGINE SIZE(S)
Compatible with, but not necessarily limited to, engine images below (If applicable):
TECH TIPS:
DISTRIBUTOR PART #(S)
BEFORE CALLING OR VISITING YOUR LOCAL DEALER...
Have BOTH the Outside Distributing Part Number and the Distributor Re-Seller Part Number(s) handy when calling your local dealer. Most dealers will require the appropriate distributor part number when you call to order. If a distributor does not list the item you can order online.
USA - DISTRIBUTORS
Distributor |
Part Number |
WESTERN POWERSPORTS (WPS Inc.) |
*Not Listed |
TUCKER POWERSPORTS |
*Not Listed |
J&M ATV Supply |
*Not Listed |
CANADIAN - DISTRIBUTORS
Distributor |
Part Number |
GAMMA POWERSPORTS |
85-00508 |
KIMPEX |
*Not Listed |
ROYAL DISTRIBUTING |
*Not Listed |
MOGO UPC-A: 874285002864
